2.0 Ton Dual-Profile Mining Loader - Preacision in Confined Spaces

2.0 Ton Dual-Profile Mining Loader: Precision in Confined Spaces

Efficient Operation: 1870mm dumping height ensures optimal material transfer

Durable Components: 400-series wear-resistant steel bucket with customizable widths

Advanced Engineering: Specialized planetary axles for enhanced durability

Precision Control: Air-over-hydraulic brake system for accurate operation

Custom Solutions: Optional side-dump device for improved flexibility

Contact Now

Product Details

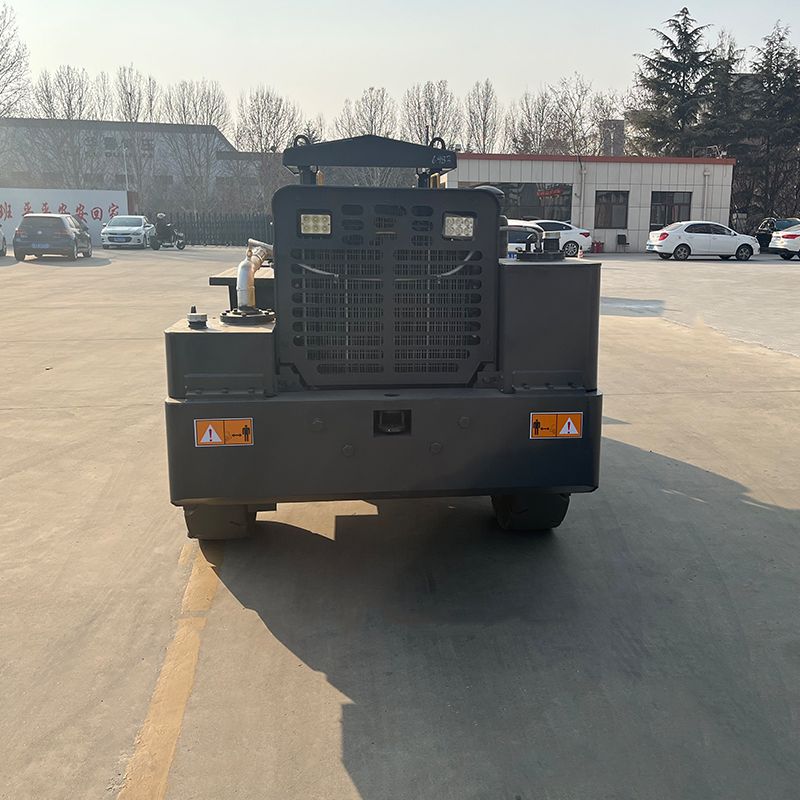

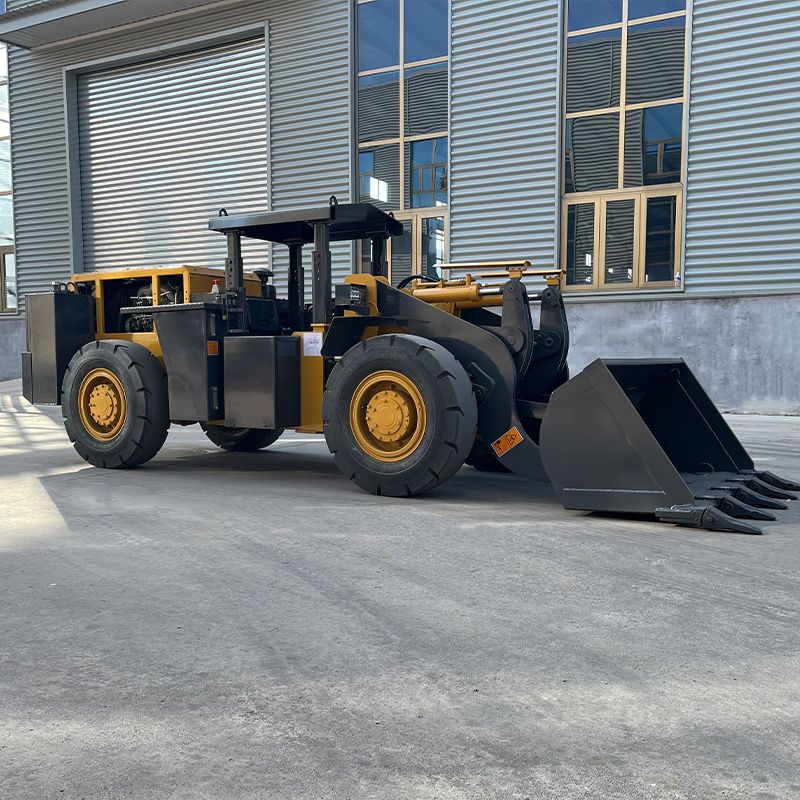

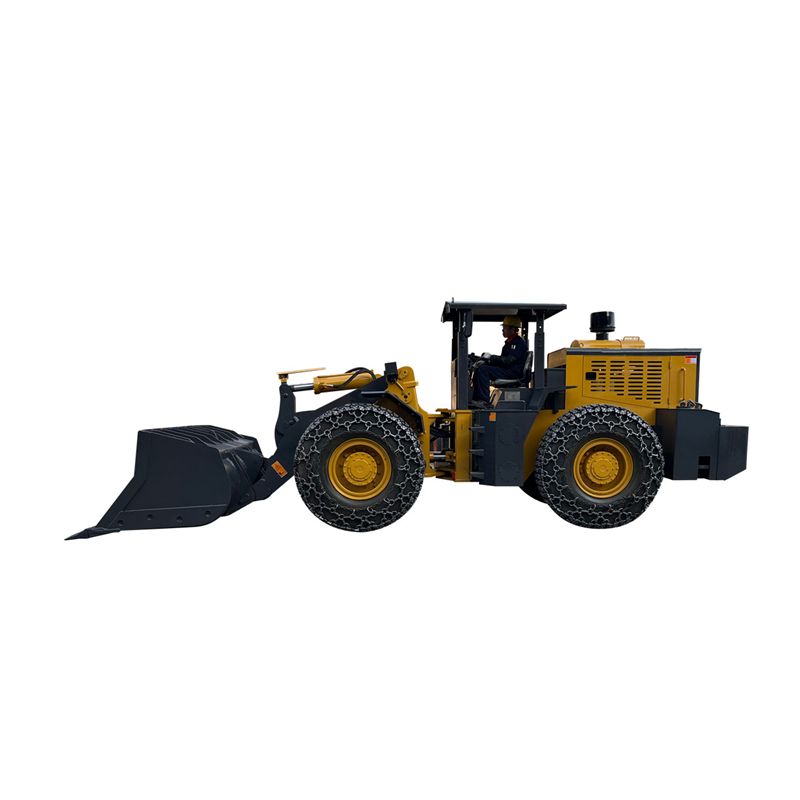

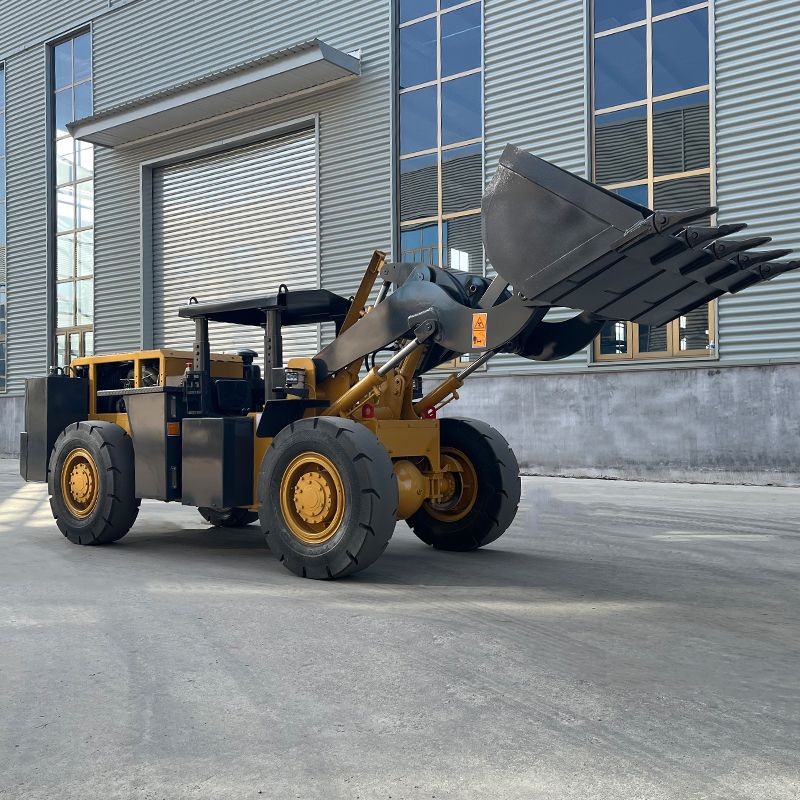

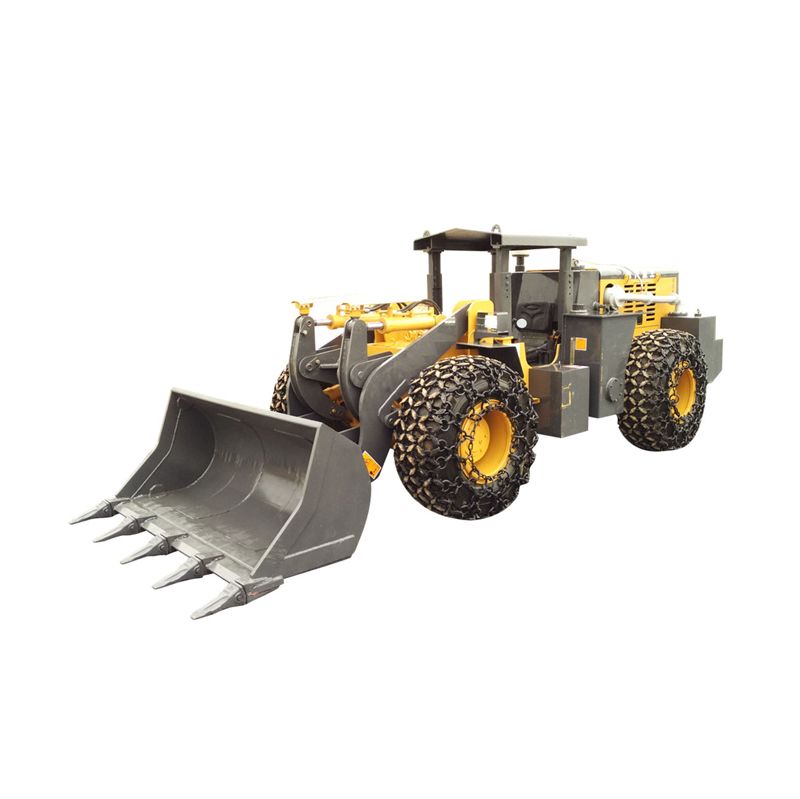

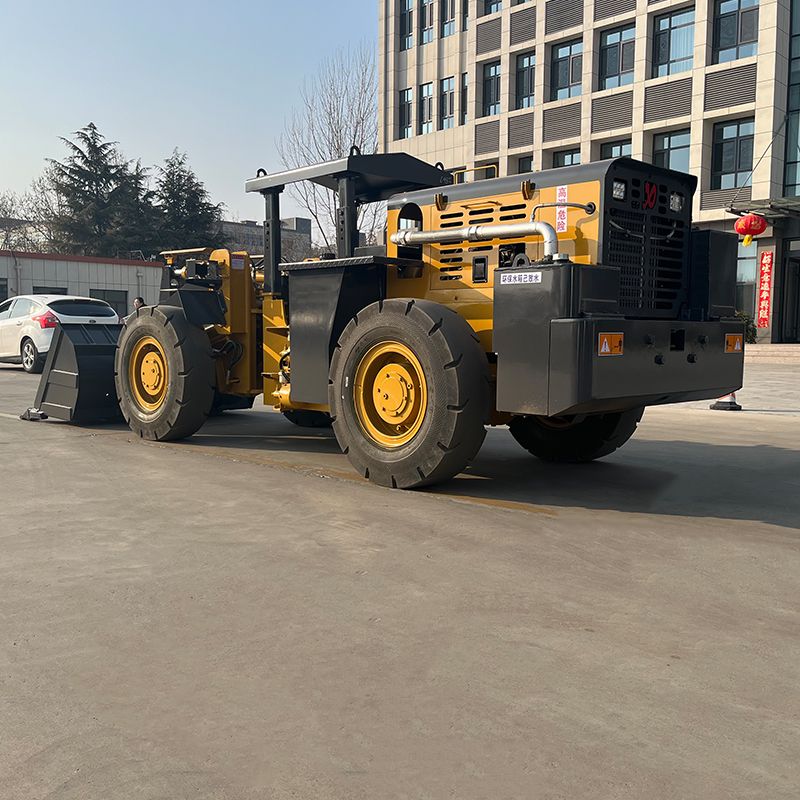

BJ20E(C) Underground Loader: Precision Engineering for Confined Mining Operations

The BJ20E(C) 2-ton loader excels in tight mining environments where space is severely limited. Its slender 1.8-meter frame accommodates both 1.9-meter and 2.3-meter height variations, allowing operations in diverse tunnel conditions. With available YTO or Cummins power units, this nimble equipment maintains complete 2-ton capability even in cramped underground settings.

Sophisticated design principles maximize output within restricted areas. Specialized planetary axles work alongside responsive air-hydraulic brakes to deliver outstanding maneuverability. The 1870mm discharge elevation supports effective material movement, while 400-series wear-resistant loading components endure harsh conditions with optional width adjustments.

Developed specifically for confined mining applications, this loader integrates essential emissions control with available DOC technology and alternative discharge arrangements. The BJ20E(C) demonstrates how thoughtful engineering achieves comprehensive operational capacity without sacrificing underground accessibility.

2.0 Ton Dual-Profile Mining Loader - Preacision in Confined Spaces

DETAIL PRESENTATION

2.0 Ton Dual-Profile Mining Loader - Preacision in Confined Spaces

PRODUCT SELLING POINTS

	01 ARTICULATED PENDULUM JOINT THE LEGENDARY ARTICULATED SWING JOINT. ALL FOUR WHEELS ARE IN CONSTANT CONTACT WITH THE GROUND AND THE MACHINE MOVES WITH MAXIMUM TRACTION.
02 HIGH AND LOW SPEED DRIVING LONG-DISTANCE SWITCHABLE HIGH-SPEED DRIVING MODE IMPROVE WORK EFFICIENCY .
	03 HYDRAULIC CYLINDER HYDRAULIC LIFTING, GOOD SEALING STABLE OPERATION, NO OIL LEAKAGE
04 BUTTER POUR INLET EACH BUTTER FILLING PORT IS EQUIPPED WITH A CAP FOR DAILY MAINTENANCE
	05 LARGE SELECTION OF TIRESTHE OPTIMAL TYRES FOR EVERY SUBGRADE - YOU HAVE A WIDE SELECTION OF DIFFERENT TYRES AVAILABLE FOR YOUR EVERYDAY.

2.0 Ton Dual-Profile Mining Loader - Preacision in Confined Spaces

PRODUCT SPECIFICATION

Model	BJ928
Bucket Capacity (m³)	1
Rated Load (t)	2
Operating Weight (t)	5.5
Speed (km/h)	0-16
Forward Gear (km/h)	Ⅰ 0-7 Ⅱ 0-16
Reverse Gear (km/h)	Ⅰ 0-7 Ⅱ 0-16
Grade Ability	15°
Overall Dimension (L×W×H mm)	5370×1800×1850
Turning Radius (Inner mm)	3500
Turning Radius (Outside mm)	5400
Min. Ground Clearance (mm)	290
Wheel Base (mm)	2470
Wheel Tread (mm)	1400
Max. Dumping Height (mm)	1870
Dumping Reach (mm)	880
Engine Model	Dongfanghong (YTO) LR4A3Z-22
Rated Power (kW)	70
Tire Model	15/70-18 or 9.75-18

ABOUT US

2.0 Ton Dual-Profile Mining Loader - Preacision in Confined Spaces

Intergenerational Knowledge Transfer

Thursday technical seminars represent our enduring tradition. Veteran engineers share classic case studies while younger teams present new technology applications - this bidirectional exchange has sparked numerous process improvements. Our "Technical Inheritance Fund" supports mentorship programs, ensuring valuable experience continues to guide future generations. Visitors often express surprise at our technical team's stability, which stems from this knowledge-sharing culture fostering strong cohesion.
