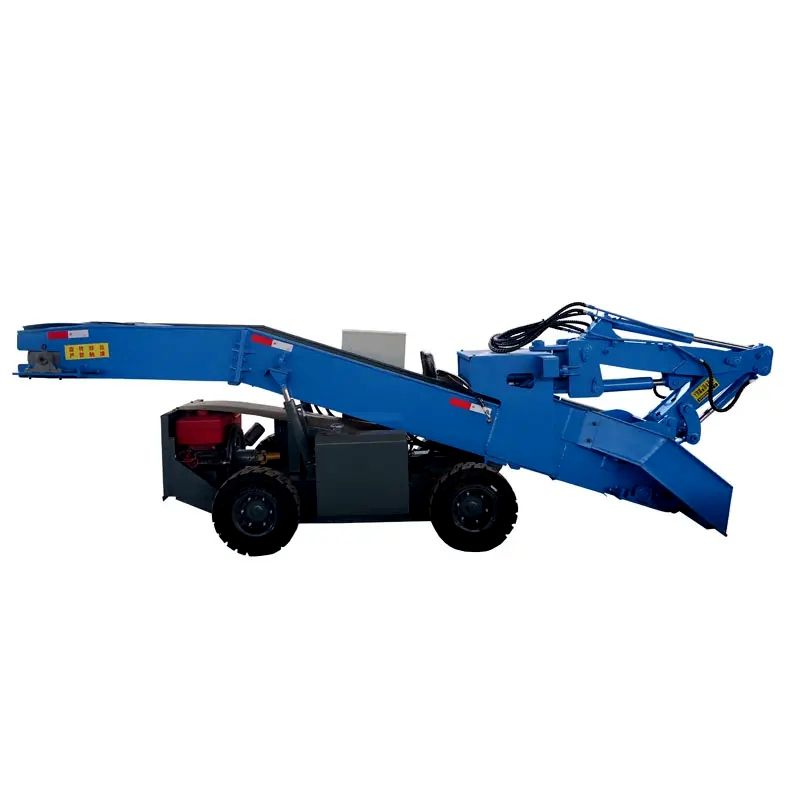

Superior Craftsmanship Wheel Mucking Loader

Eco - friendly Operation: Reduces air pollution within tunnels, fostering a more healthful construction atmosphere.

Versatile Spatial Adaptation: Suits diverse tunnel cross - sections, capable of operating efficiently in both confined and expansive areas.

Seamless Material Handling: Facilitates uninterrupted transportation of materials, decreasing transfer duration and speeding up project development.

Agile Dual - Drive System: The electric - diesel dual - drive setup allows for effortless switching between underground and surface operations.

Contact Now

Product Details

This machinery is equipped with an electric full - hydraulic transmission system and integrates four essential functions: hydraulic movement, excavation and gathering, material transportation, and loading. Thanks to its sleek and compact design, it generates significant driving force and has a broad mucking range. Its main operations are controlled by pilot - operated valves, enabling an intuitive and fluid operation process. This not only guarantees safety and comfort but also endows it with excellent maneuvering ability, strong climbing performance, and a stable, vibration - free working experience.

It can load rocks across the entire cross - section without leaving any blind areas, thus eliminating the need for manual cleaning of the work surface. This greatly enhances work efficiency, reduces mining expenses, and maximizes economic benefits. With an hourly material discharge capacity of 50 - 60 cubic meters, one unit can efficiently handle the workload equivalent to that of more than 30 workers. The decrease in the number of operators not only simplifies the labor force but also reduces potential safety hazards during the operation process.

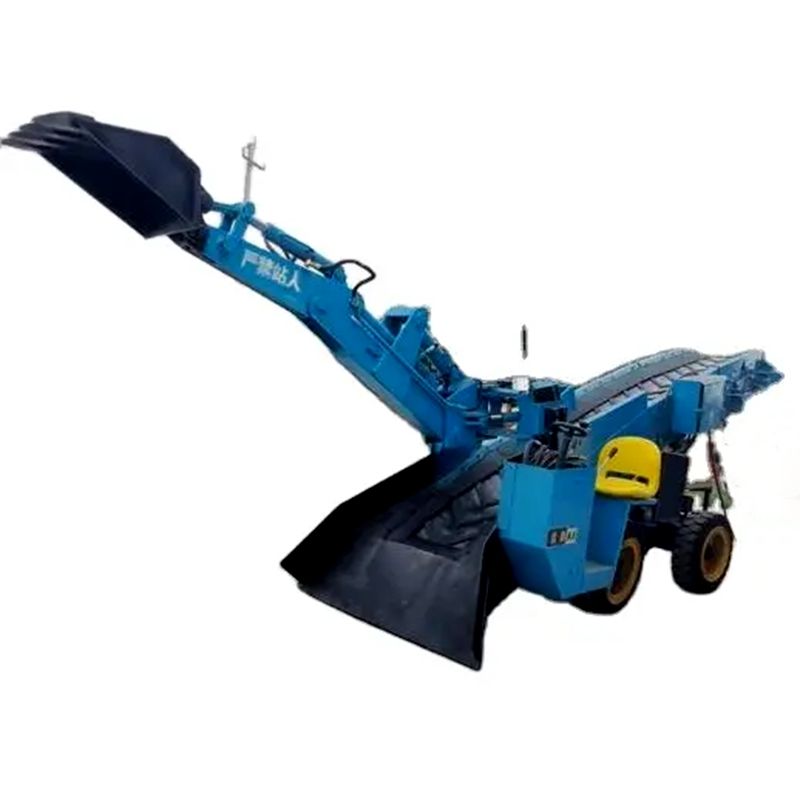

Wheel Mucking Loader

DETAIL PRESENTATION

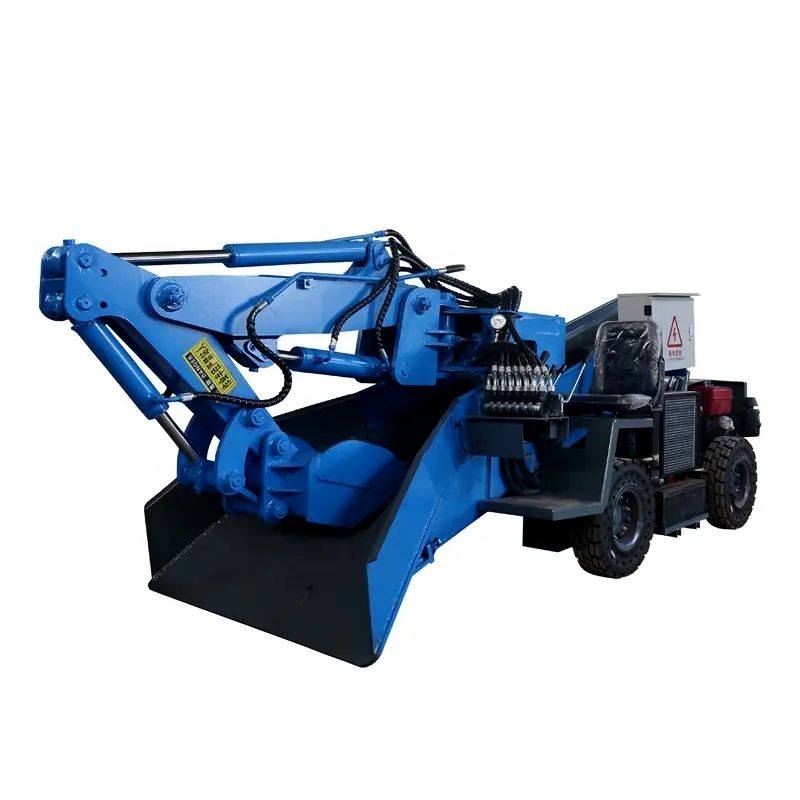

Wheel Mucking Loader

PRODUCT SELLING POINTS

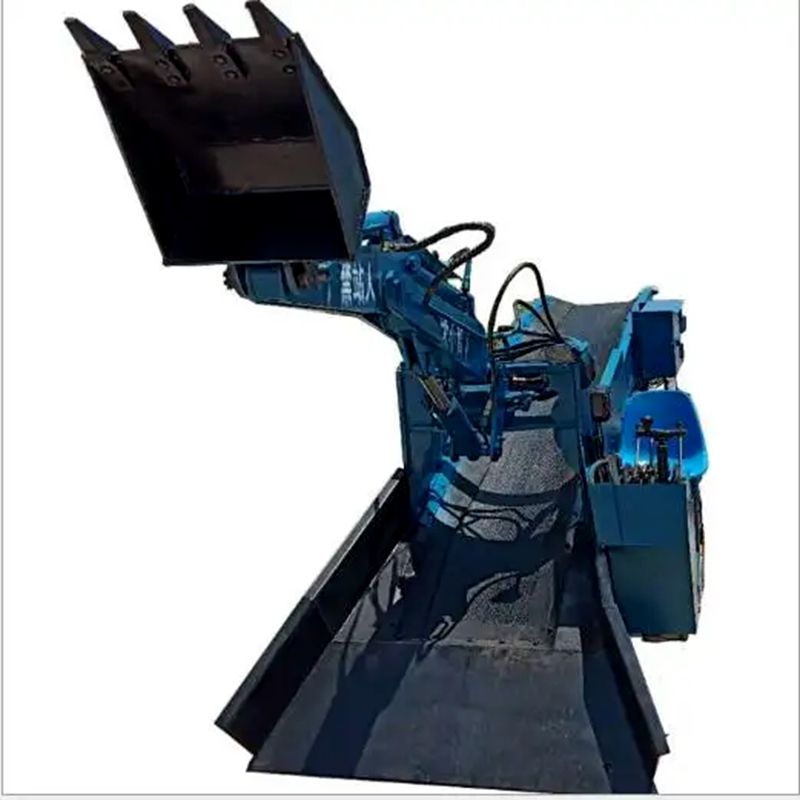

	01 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

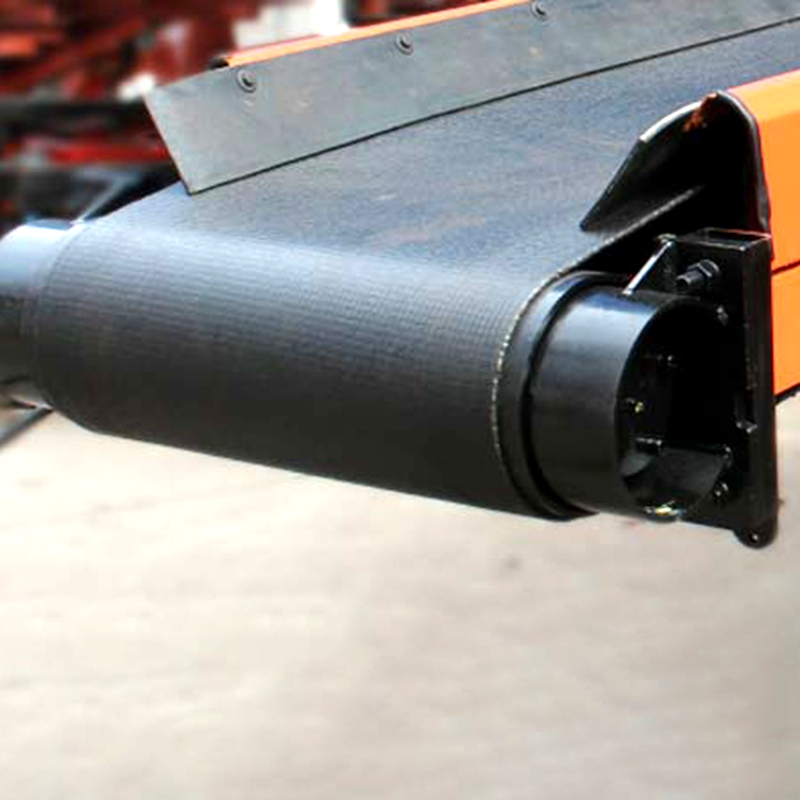

02 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	03 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
04 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	05 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
06 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine

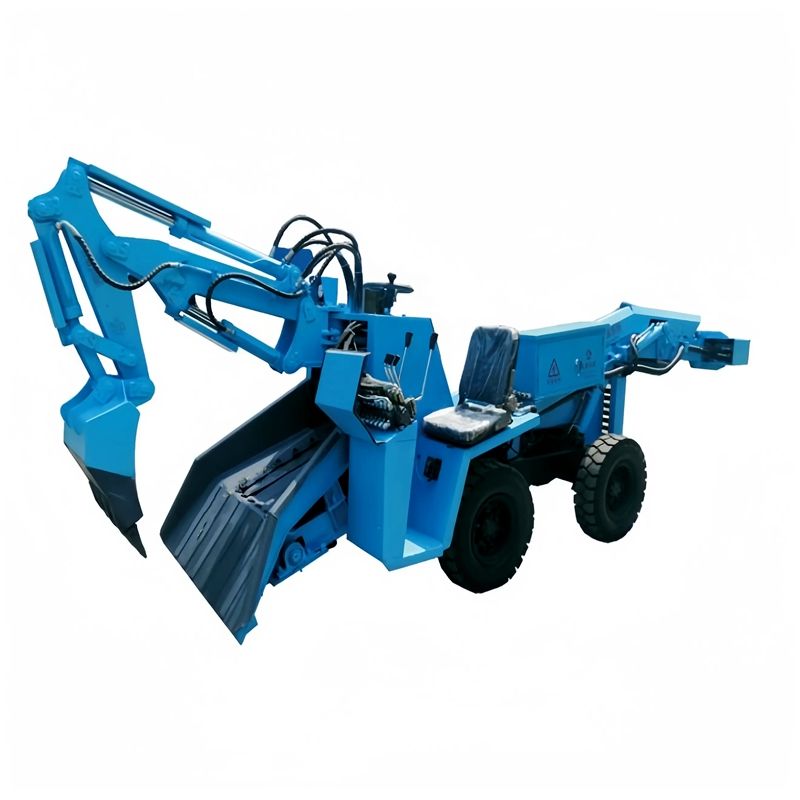

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ1.5-70T-B
Loading Capacity (m³/h)	≤ 70
Total Machine Mass (kg)	Approximately 3800±5%
Wheelbase (A) (mm)	1550
Track Width (Front/Rear) (mm)	1250/1220
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3000
Digging Reach (C) (mm)	1600
Loading Width (Z) (mm)	650
Excavation Height (H) (mm)	2050
Maximum Dumping Height (H) (mm)	1500 (Can be Raised)
Loading Length (D) (mm)	1600 (Can be Extended)
Gradability (°)	≤ 5
Maximum Dimension of Pass - through Material (mm)	≤ 640×500
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 60
Main Motor Power (Kw)	11
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	6300±50
Maximum Dimensions in Transport State (mm) - Width	1500±50
Maximum Dimensions in Transport State (mm) - Height	1500±50
Minimum Applicable Cross - section (㎡)	2.2×2.2

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a top - tier enterprise, wholeheartedly committed to the research, development, and manufacturing of mining and construction equipment. Situated in Jining, Shandong, the company occupies a vast area of 100 acres, featuring a 20,000 - square - meter production plant. By leveraging state - of - the - art manufacturing technologies, Beijun can reach an annual production output of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has successfully acquired the ISO9001 quality management system certification and the EU CE certification. It strictly adheres to mining safety and production standards. The company deploys a comprehensive ERP system, incorporating advanced information technology solutions to optimize resource planning and boost management efficiency. Beijun primarily specializes in the production of mining transport vehicles, crawler - type hauling equipment, and aerial work platform trucks.

Backed by a highly skilled technical team, rigorous quality control processes, modern testing facilities, and efficient production techniques, the company continuously delivers high - grade products. Beijun has a workforce of over 200 employees, including 30 engineers, 40 sales professionals, and 15 mechanical engineering specialists.

Dedicated to innovation and independent research and development, Beijun firmly upholds its core values of "Quality - Centric, Customer - Focused." Its product lineup has garnered extensive acclaim in the African, South American, and Southeast Asian markets, further solidifying Beijun's position as a reliable and innovative leader in the industry.
