High Quality Crawler Mucking Loader Sell

Smooth Conveyance: Enables continuous material transport, shortening transfer time and accelerating project progress.

Optimal Dimensions: Size suits construction sites, simplifying installation and usage.

Durable key components: Made of high - strength, wear - resistant materials, key parts are sturdy, replaceable, and cost - effective.

Efficient excavation and grabbing: The high - force excavation device enables quick material handling, with an excavation width reaching several meters.

Contact Now

Product Details

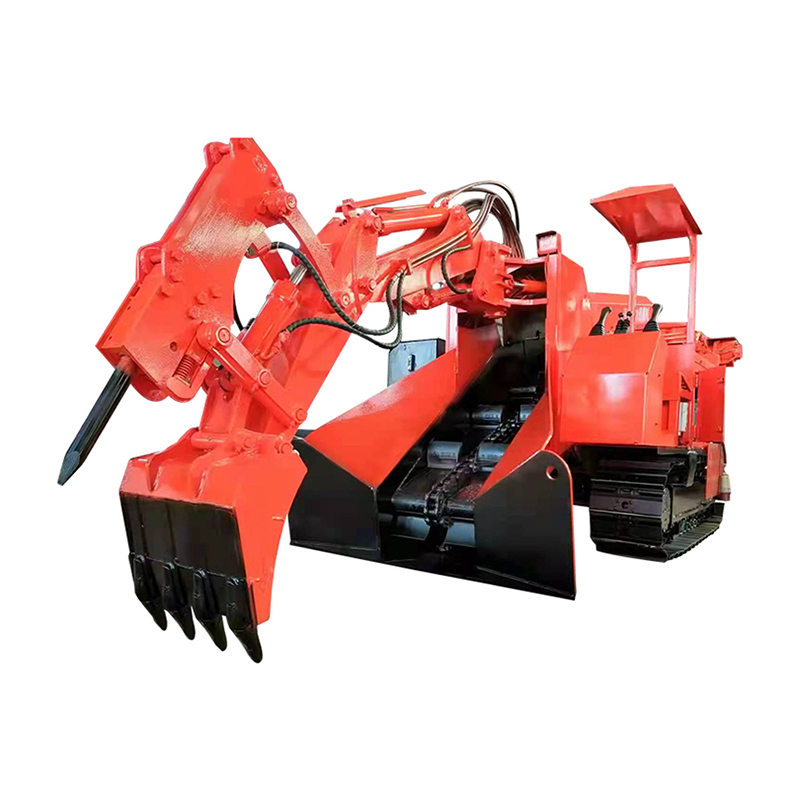

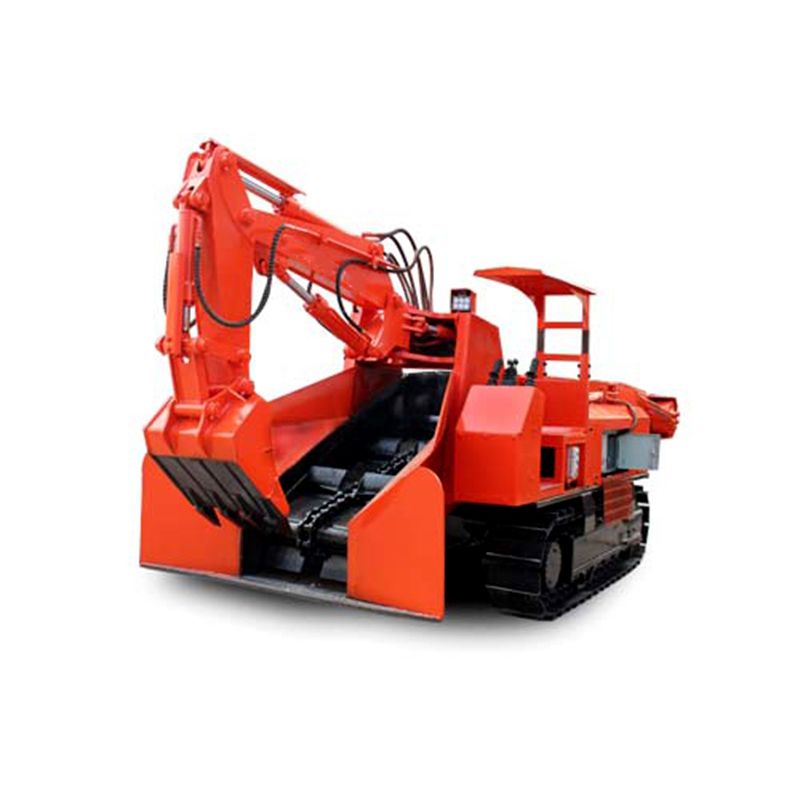

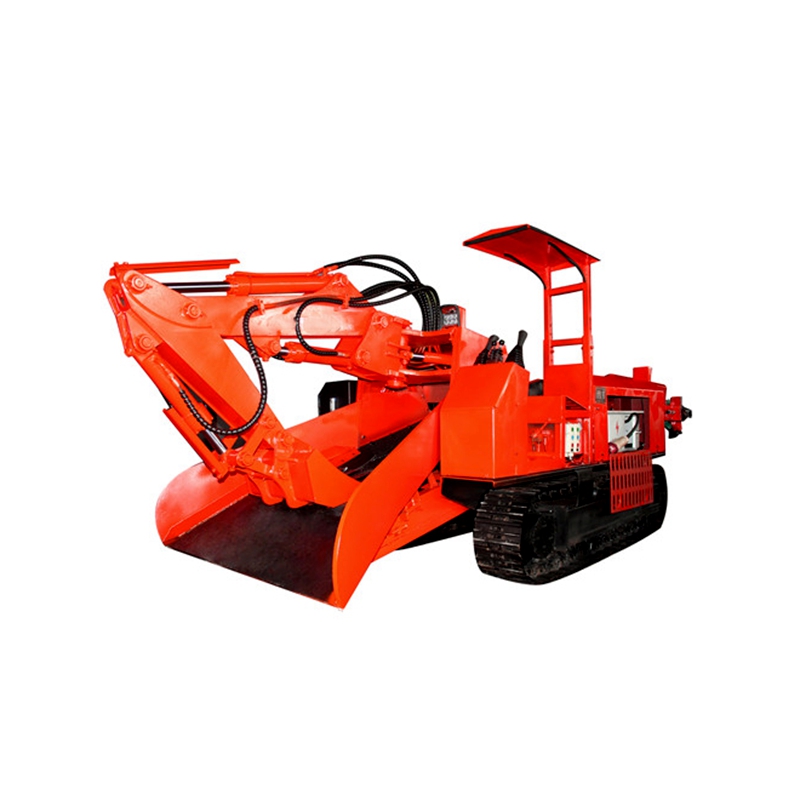

The Crawler Mucking Loader is suitable for large, medium and small roadways with a working cross-section of over 2.4×2.4 meters and a slope within 25 degrees. It is mainly used for tunneling and loading operations in roadways of coal mines, non-coal mines, urban pipe networks, etc. It features stable loading, flexible operation, continuous actions, powerful shoveling, no material spillage, continuous high efficiency and labor savings. Currently, it's the best choice for efficient, safe, energy-saving and environmentally friendly mucking equipment in mining.

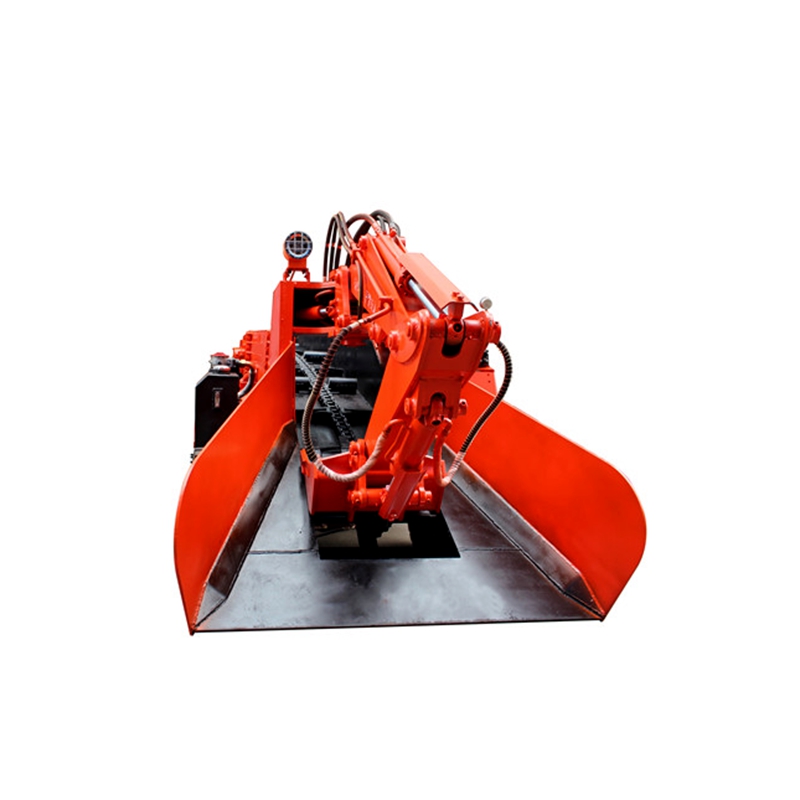

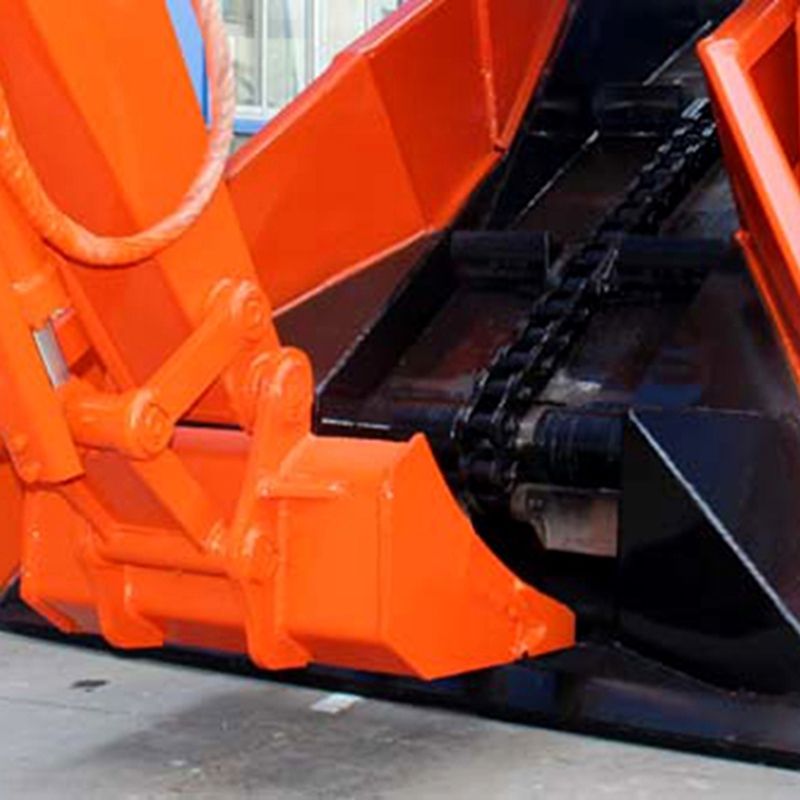

This machine uses crawler travel and a conveying system with thick chains and high scrapers. The integral conveying trough is welded from high-strength steel plates, being durable. Its service life and performance far exceed those of belt conveyors, and it prevents muck from flowing backward when working on steep slopes.

The machine is equipped with a built-in low-speed high-torque motor travel reducer, offering high trafficability. The travel frame has high structural strength and rigidity, formed by bending. The track rollers, carrier rollers, guide wheels and drive sprocket teeth are all made of alloy steel, processed strictly according to technological requirements and quenched, ensuring good wear resistance and long service life. During the manufacturing of the crawler chassis, welding deformation is strictly controlled to ensure its levelness and verticality. The steel crawlers are quenched, boasting high hardness and long-lasting durability.

Tunnel Mucking Loader

DETAIL PRESENTATION

Crawler Mucking Loader

PRODUCT SELLING POINTS

Tunnel Mucking Loader

Engineering big arm

Powerful and flexible operation，Internal reinforcement is not easy to crack

Radiator

Efficient heat dissipation, low noise, small space and easy maintenance

Tunnel Mucking Loader

Transport mode

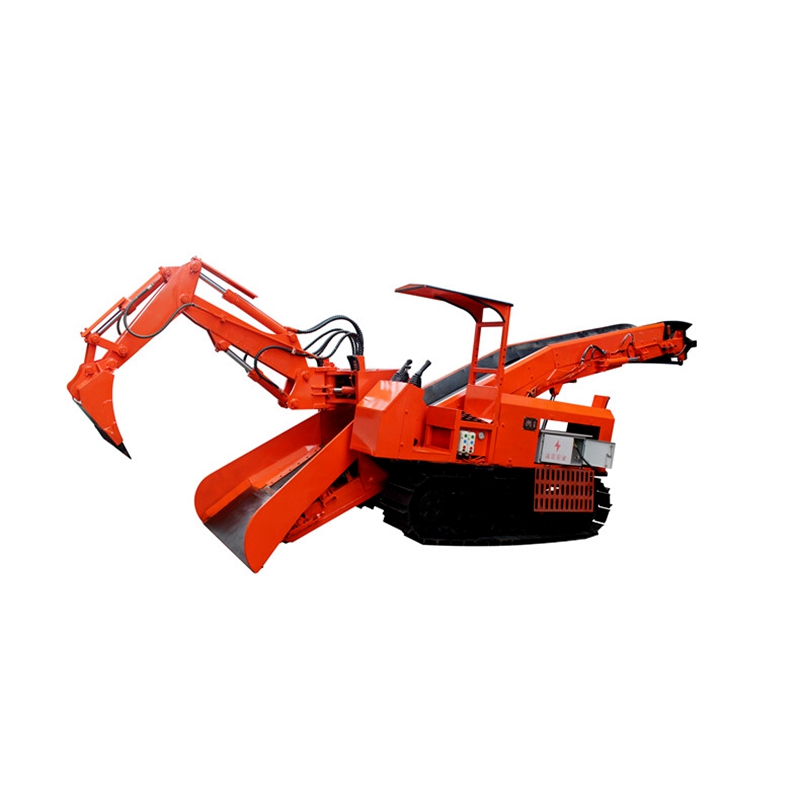

Divided into belt conveyor and Scraper conveyer durable

Attachment

Tunnel Mucking Loader

We do handle special orders. We offer customization for logo, colors and graphics

PRODUCT SPECIFICATION

Model	BJ-80-B
Loading Capacity (m³/h)	≤80
Total Machine Mass (kg)	6200
Minimum Turning Radius (m)	≤7
Minimum Ground Clearance (mm)	≥300
Excavation Width (mm)	≤4100
Excavation Depth (mm)	≤550
Excavation Height (mm)	≤2800
Digging Distance (from Bucket Lip) (mm)	≥640
Dumping Height (mm)	≥1700, customizable
Dumping Distance (mm)	≥2100, customizable
Adaptable Slope Gradient (°)	≤12
Belt Width (mm)	600
Belt Speed (m/s)	0.8
Main Motor Power (Kw)	30 (Dual 15)
Traveling Speed (m/s)	1.45
Crawler Ground Contact Pressure (Mpa)	≤0.1
Crawler Ground - Contact Dimension (mm)	2500
Crawler Tread Dimension (mm)	1800
Rated Working Pressure (Mpa)	25
Safety Valve Opening Pressure (Mpa)	26
Breaker Bit Diameter (mm)	53
Breaker Working Flow (L/min)	20 - 40
Breaker Impact Frequency (bmp)	700 - 1200
Electrical Insulation (Three - Phase) (MΩ)	>1.5
Electrical Insulation (Phase - to - Phase) (MΩ)	>1.5
Overall Dimensions (Length) (mm)	6750±50
Overall Dimensions (Width) (mm)	1820±50
Overall Dimensions (Height) (mm)	2060±50
Applicable Cross - Section (m²)	2.4×2.4

PRODUCT APPLICATIONS

Tunnel Mucking Loader
