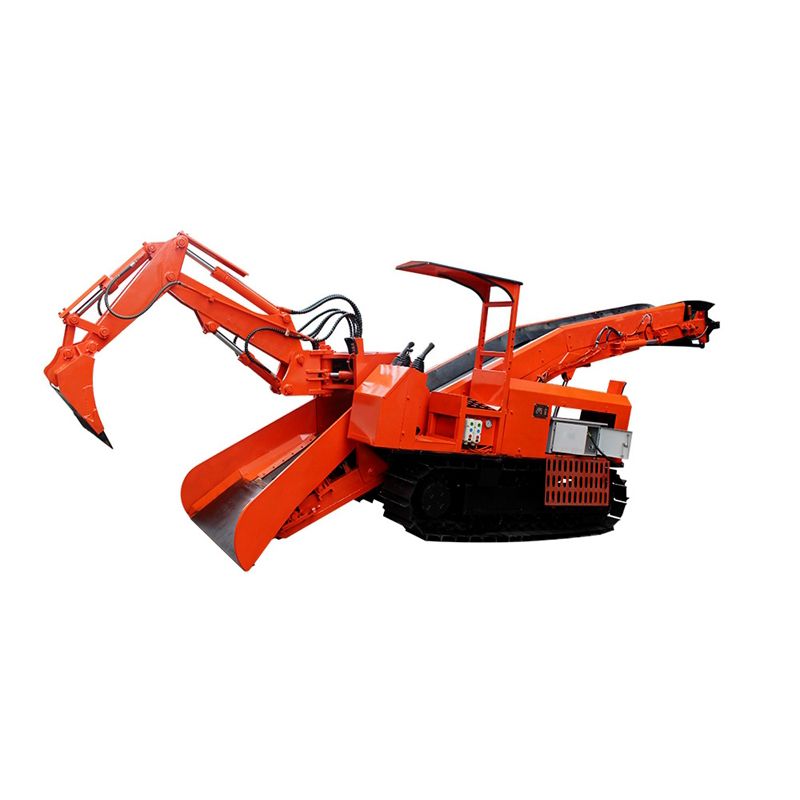

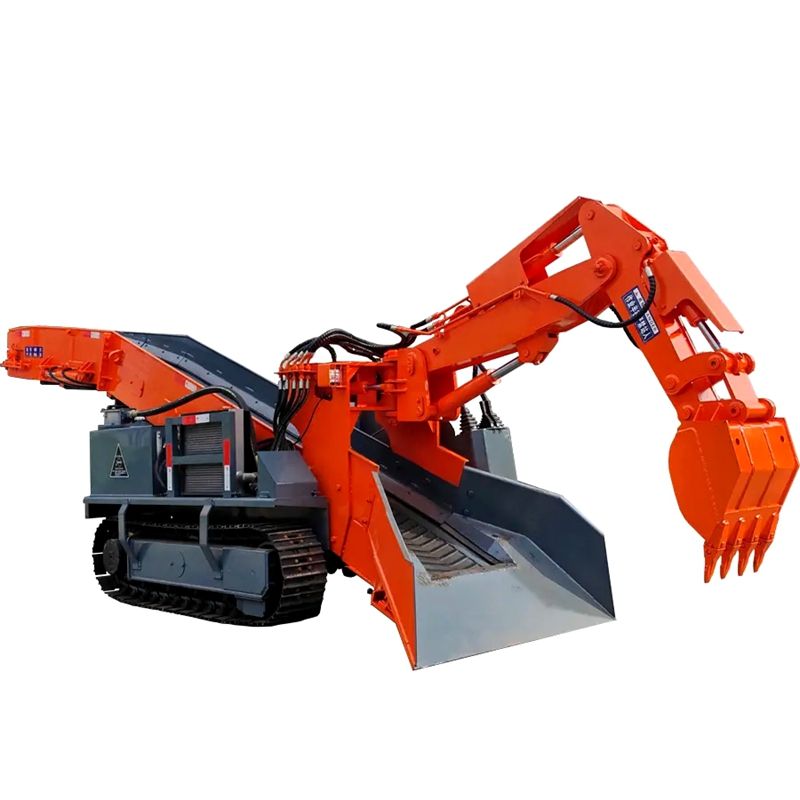

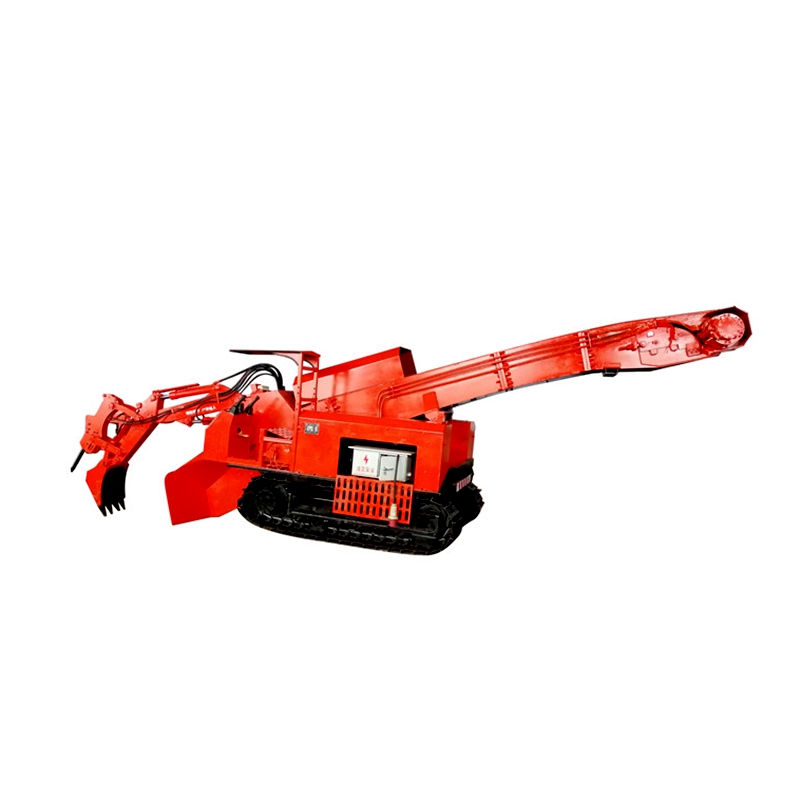

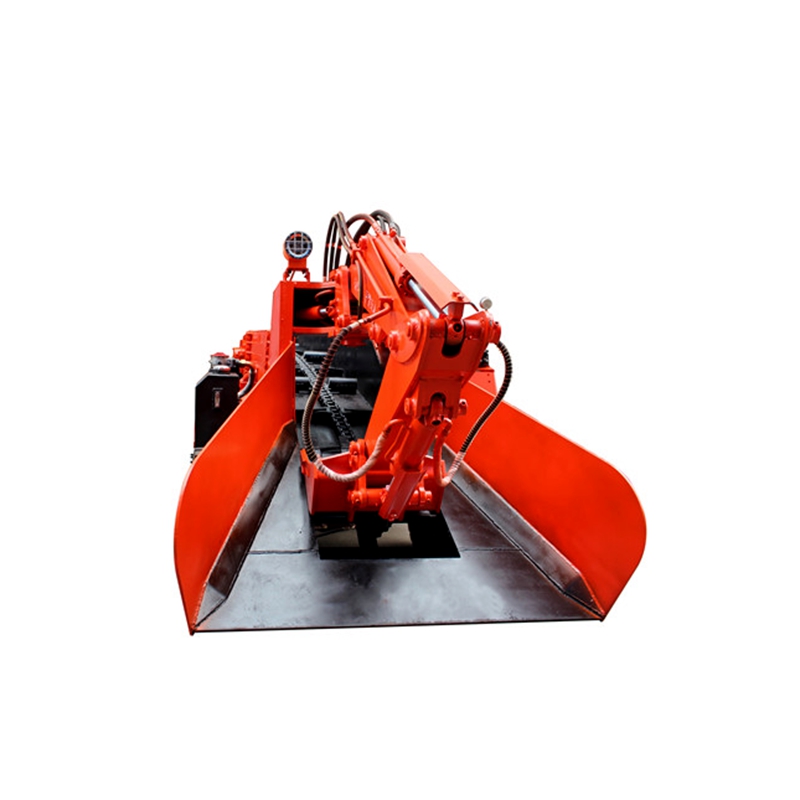

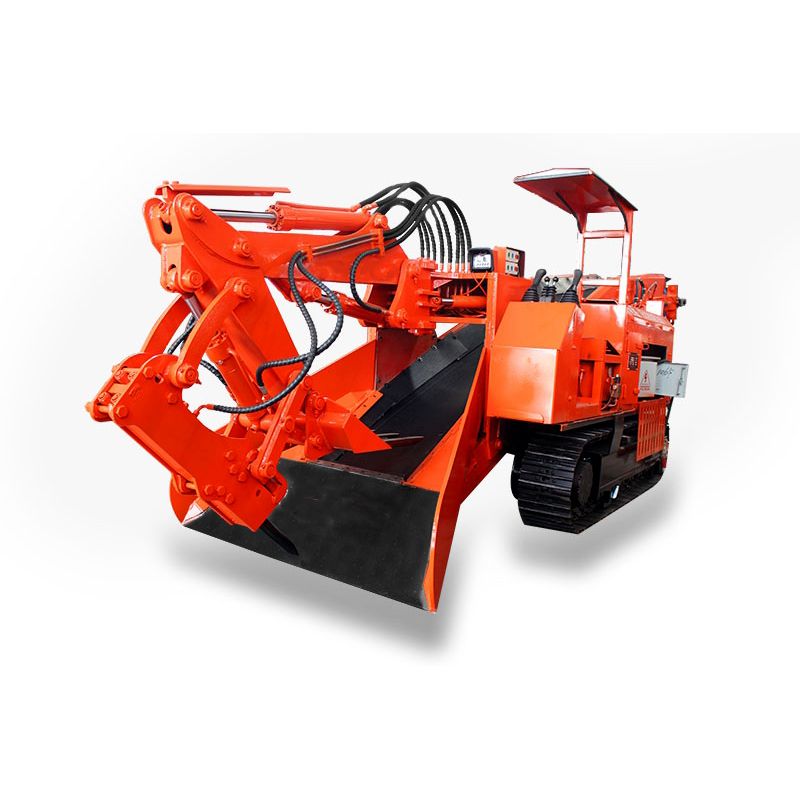

Crawler Type Mucking Machine With Belt Sell

Flexible steering: With a small turning radius, it can turn easily in narrow spaces.

Efficient excavation and grabbing: The high - force excavation device enables quick material handling, with an excavation width reaching several meters.

Stable continuous operation: Smooth power transmission and seamless action transitions ensure long - term stable work for construction progress.

Long - lasting crawler: The sealed, lubricated crawler, easy to tension, is wear - resistant and has a long lifespan.

Contact Now

Product Details

The mucking loader, also referred to as an excavating loader, integrates multiple functions including digging, transporting, loading, and moving. Owing to its high working efficiency, excellent adaptability to limited spaces, and negligible air pollution in the tunnel setting, it has become an essential piece of equipment in tunnel construction works.

Utilizing an electro - hydraulic control system, it features five functions: hydraulically - driven movement, mining material gathering, transfer, loading, and floor dirt removal. Our mucking loader comes with a dual - drive system, offering both electric - driven and diesel - driven models. When it's working inside the mine, the electric - driven model is suggested as it is more environmentally friendly and secure. When it operates outside the mine, the large - capacity hydraulic oil tank allows for long - term continuous operation.

Tunnel Mucking Loader

DETAIL PRESENTATION

PRODUCT SELLING POINTS

Engineering big arm

Powerful and flexible operation，Internal reinforcement is not easy to crack

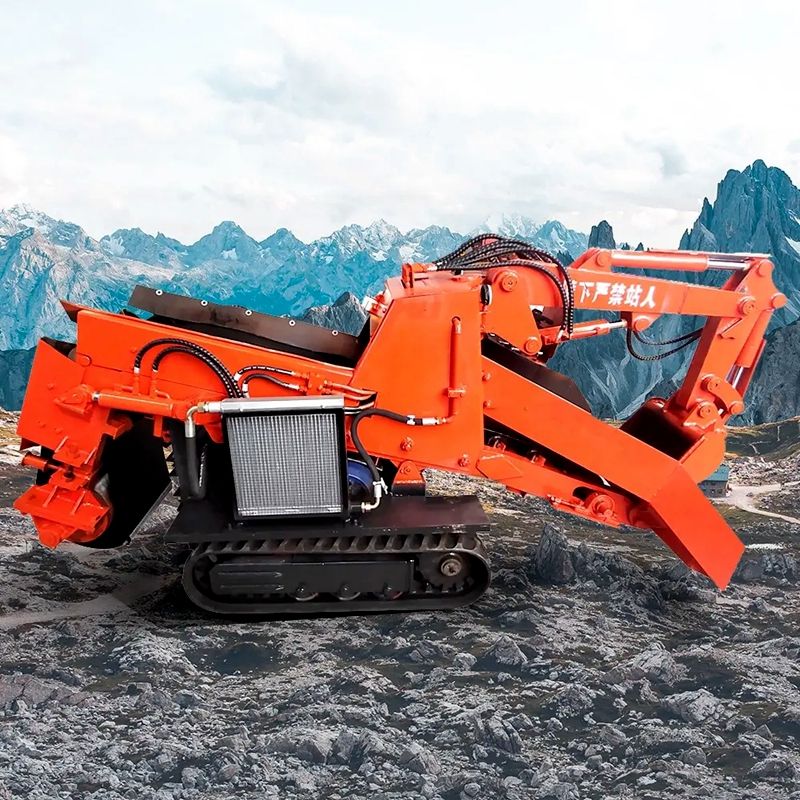

Radiator

Efficient heat dissipation, low noise, small space and easy maintenance

Transport mode

Divided into belt conveyor and Scraper conveyer durable

Attachment

Tunnel Mucking Loader

We do handle special orders. We offer customization for logo, colors and graphics

PRODUCT SPECIFICATION

Model	BJ-80-B
Loading Capacity (m³/h)	≤80
Total Machine Mass (kg)	6200
Minimum Turning Radius (m)	≤7
Minimum Ground Clearance (mm)	≥300
Excavation Width (mm)	≤4100
Excavation Depth (mm)	≤550
Excavation Height (mm)	≤2800
Digging Distance (from Bucket Lip) (mm)	≥640
Dumping Height (mm)	≥1700, customizable
Dumping Distance (mm)	≥2100, customizable
Adaptable Slope Gradient (°)	≤12
Belt Width (mm)	600
Belt Speed (m/s)	0.8
Main Motor Power (Kw)	30 (Dual 15)
Traveling Speed (m/s)	1.45
Crawler Ground Contact Pressure (Mpa)	≤0.1
Crawler Ground - Contact Dimension (mm)	2500
Crawler Tread Dimension (mm)	1800
Rated Working Pressure (Mpa)	25
Safety Valve Opening Pressure (Mpa)	26
Breaker Bit Diameter (mm)	53
Breaker Working Flow (L/min)	20 - 40
Breaker Impact Frequency (bmp)	700 - 1200
Electrical Insulation (Three - Phase) (MΩ)	>1.5
Electrical Insulation (Phase - to - Phase) (MΩ)	>1.5
Overall Dimensions (Length) (mm)	6750±50
Overall Dimensions (Width) (mm)	1820±50
Overall Dimensions (Height) (mm)	2060±50
Applicable Cross - Section (m²)	2.4×2.4

PRODUCT APPLICATIONS

Tunnel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a top - notch enterprise that is devoted to the research, development, and manufacturing of mining and construction equipment. Located in Jining, Shandong Province, the company occupies an area of 100 acres and possesses a manufacturing facility that covers 20,000 square meters. By making use of state - of - the - art production technologies, Beijun can produce 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks annually.

Beijun has obtained the ISO9001 quality management system certification and EU CE certification, and it strictly complies with mining safety production standards. The company implements a comprehensive ERP system, incorporating advanced information technology solutions to enhance the efficiency of resource planning and management. Beijun mainly focuses on manufacturing mining transport vehicles, crawler haulage machines, and aerial work platform trucks.

Backed by a highly - skilled technical group, rigorous quality control procedures, modern testing equipment, and effective production methods, the firm consistently provides high - standard products. Beijun has over 200 staff members, including 30 engineers, 40 sales representatives, and 15 mechanical engineering professors.

Dedicated to innovation and independent R & D, Beijun adheres to its core values of "Quality First, Customer - Oriented." Its product range has won wide acclaim in the markets of Africa, South America, and Southeast Asia, further solidifying Beijun's position as a reliable and innovative pioneer in the industry.
