Customer Favorite Tunnel Mucking Loader Sale

Powerful Digging: Strong excavation ability adapts to various rocks, speeding up operations.

Excellent Terrain Adaptability: Crawlers with large contact area and low pressure navigate tough terrains without getting stuck.

Steady Operation: Smooth power flow and seamless actions ensure continuous, stable work for construction.

Superior Safety: Reduces operator risk in hazardous areas. Some models are explosion - proof for high - risk sites.

Contact Now

Product Details

The Crawler Mucking Loader is suitable for roadways of various sizes, including large, medium, and small types. It can be used in work areas with a cross - section exceeding 2.4×2.4 meters and slopes of up to 25 degrees. Primarily, it is employed in tunneling and loading operations within coal mine roadways, non - coal mine roadways, and urban pipe networks. This loader offers stable loading, agile operation, smooth actions, strong scooping power, zero material spillage, consistent high efficiency, and labor - saving benefits. Presently, it stands as the top option for efficient, safe, energy - conserving, and environmentally friendly mucking equipment in the mining industry.

This equipment moves on crawlers and utilizes a conveying system featuring thick chains and high - lift scrapers. The one - piece conveying trough, constructed by welding high - strength steel plates, is extremely durable. Its service life and performance significantly surpass those of belt conveyors, and it prevents muck from flowing backward on steep slopes.

Fitted with an integrated low - speed, high - torque motor travel reducer, the loader has outstanding mobility. The travel frame, shaped through bending, exhibits high structural strength and rigidity. The track rollers, carrier rollers, guide wheels, and drive sprocket teeth, all crafted from alloy steel, are processed according to strict technical standards and quenched, ensuring excellent wear resistance and a long lifespan. During the production of the crawler chassis, welding deformation is strictly regulated to maintain flatness and perpendicularity. The quenched steel crawlers are highly hard - wearing and long - lasting.

Tunnel Mucking Loader

DETAIL PRESENTATION

Tunnel Mucking Loader

PRODUCT SELLING POINTS

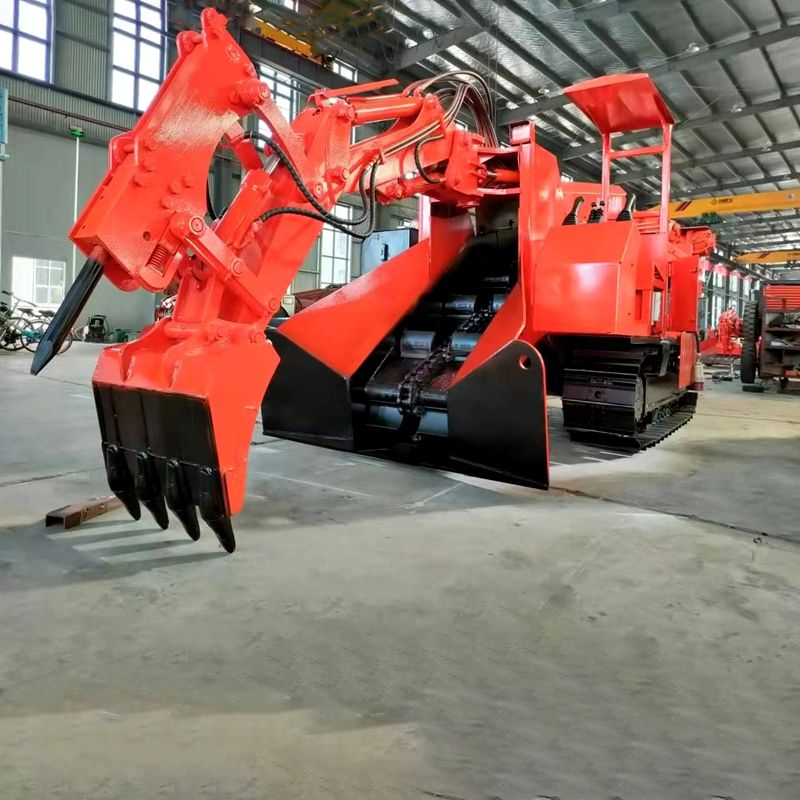

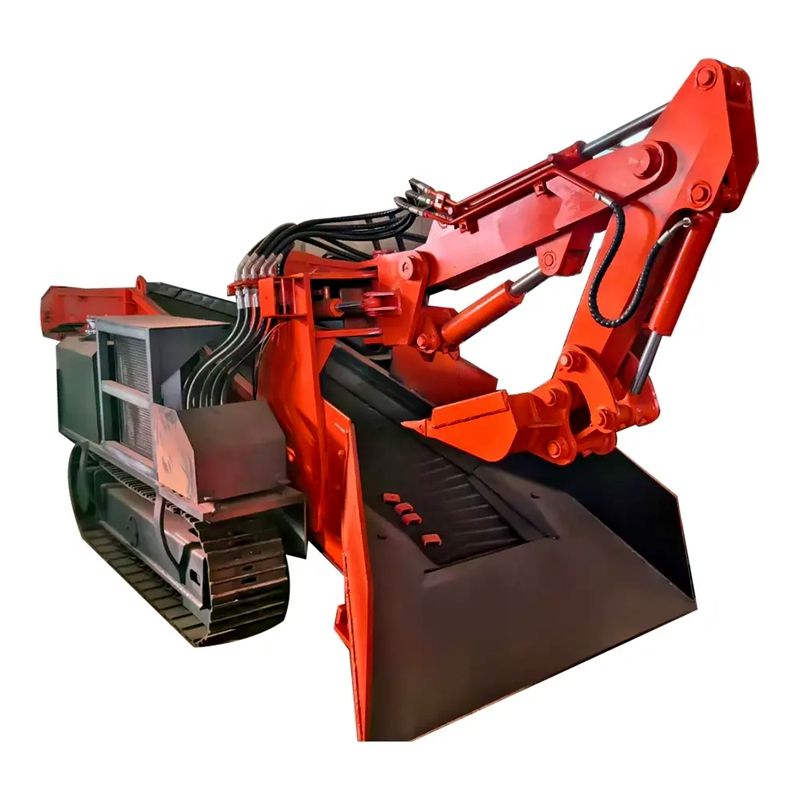

Crawler Mucking Loader

Working arm

The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

Conveying belt

It is made of high hardness material. The special design to ensure the successful conveying of the rock

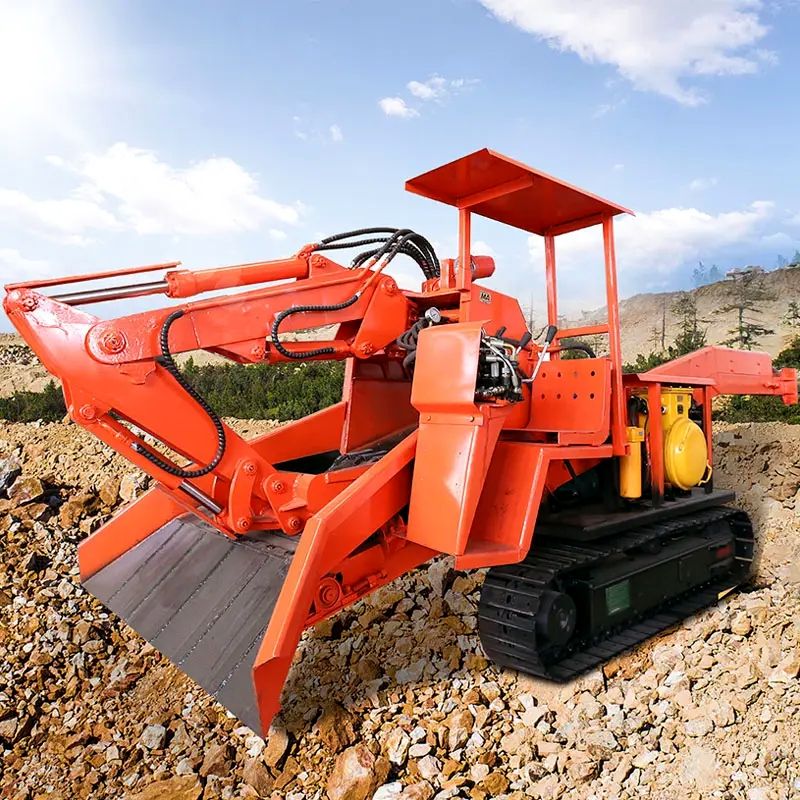

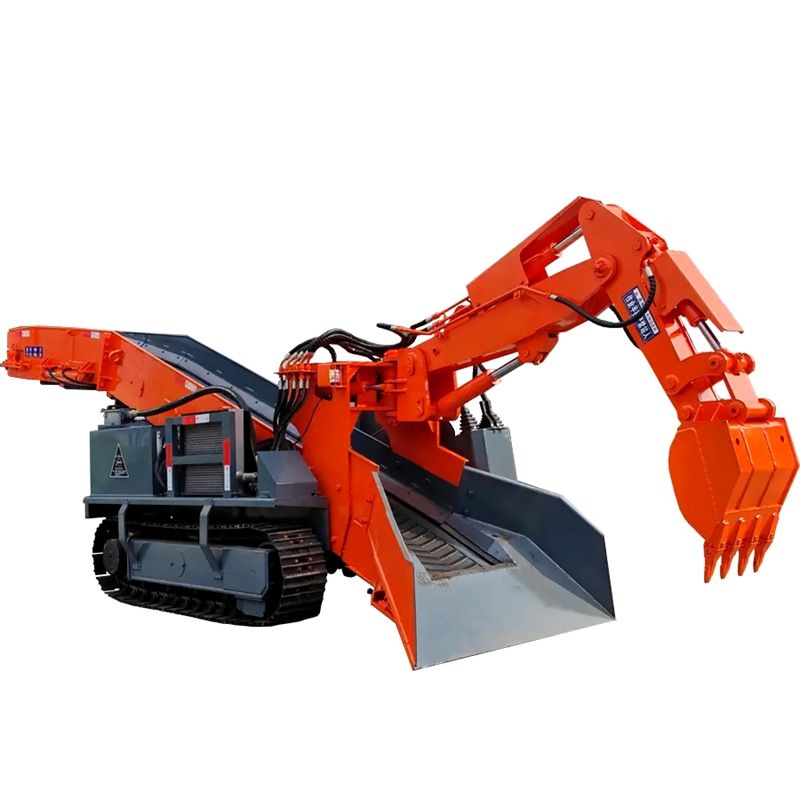

Crawler Mucking Loader

Removable mode

Through reasonable design can realize the field assembly construction convenient, that crews can assemble just as easily as they can break them down into movable parts

PRODUCT SPECIFICATION

Project Name	Unit	BJ-120-C
Loading Capacity	m³/h	≤120
Total Machine Mass	kg	7800
Excavation Width	mm	3800
Excavation Height	mm	3200
Excavation Depth	mm	≤500
Digging Reach	mm	≥1800
Gradability	°	≤25
Dumping Height	mm	1850 (Can be Raised)
Dumping Distance	mm	2450 (Can be Extended)
Minimum Turning Radius	°	≤9
Total Motor Power	kW	30
Traveling Speed	km/h	1.45
Maximum Dimension of Pass - through Material	mm	600×550
Minimum Ground Clearance	mm	≥330
Average Ground Contact Pressure of Crawler	MPa	≤0.1
Scraper Chain Speed	m/min	40±2
Height of Scraper Baffle	mm	15
Minimum Cross - section of Applicable Roadway	m	2.8×2.8
Overall Dimensions (Length×Width×Height)	mm	7300×2200×2200

PRODUCT APPLICATIONS

Tunnel Mucking Loader
