High Performance Tunnel Mucking Loader Available for Purchase

Integrated Efficiency: Integrates excavation, loading, and conveying, ensuring seamless workflow.

Air-friendly Operation: Minimizes tunnel air pollution, creating a healthier construction environment.

Stable Hydraulics: Adopts load-sensing hydraulic technology for steady, reliable operation without hidden risks.

Terrain Mastery: Strong climbing ability tackles tunnel slopes, easily maneuvering complex terrains.

Contact Now

Product Details

The mucking loader, also known as an excavating loader, combines several functions such as excavation, transportation, loading, and locomotion. Due to its high operational efficiency, excellent adaptability to confined spaces, and minimal air pollution generated within tunnels, it has become an indispensable piece of machinery in tunnel construction projects.

Equipped with an electro - hydraulic control system, it performs five main functions: hydraulic - powered movement, mining material collection, transportation, loading, and floor debris removal. Our mucking loader features a dual - drive system, offering both electric and diesel - powered models. For operations inside mines, the electric - powered version is recommended as it is more environmentally friendly and safer. When operating outside mines, the large - capacity hydraulic oil tank enables continuous operation over extended periods.

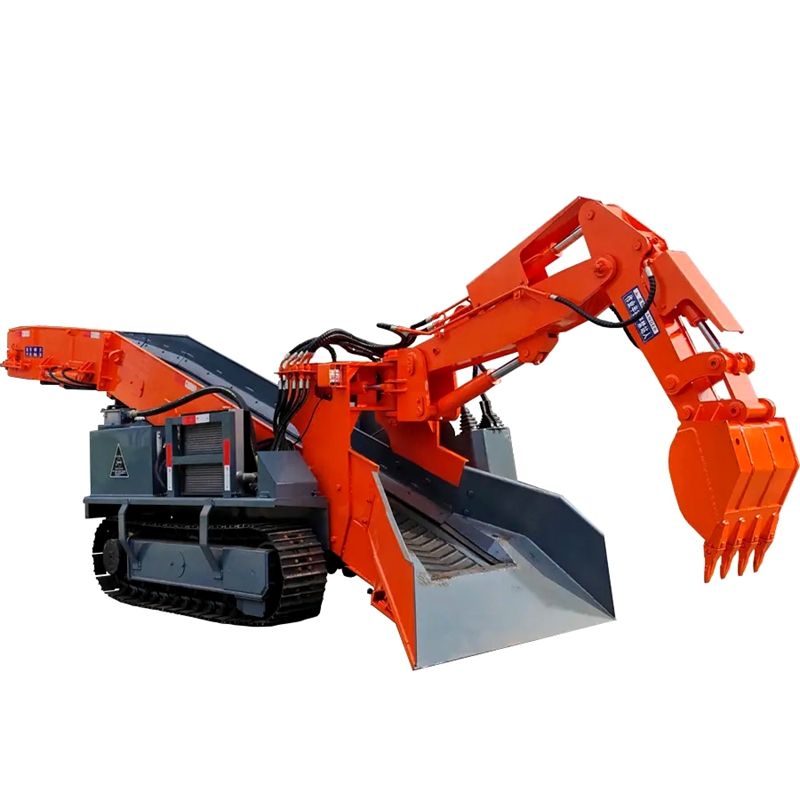

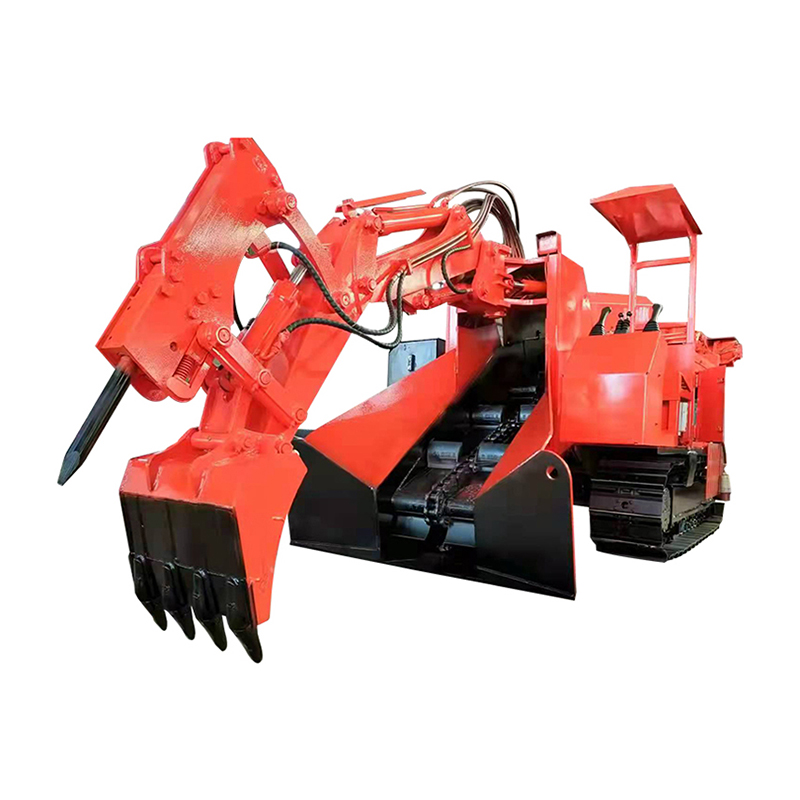

Tunnel Mucking Loader

DETAIL PRESENTATION

Tunnel Mucking Loader

PRODUCT SELLING POINTS

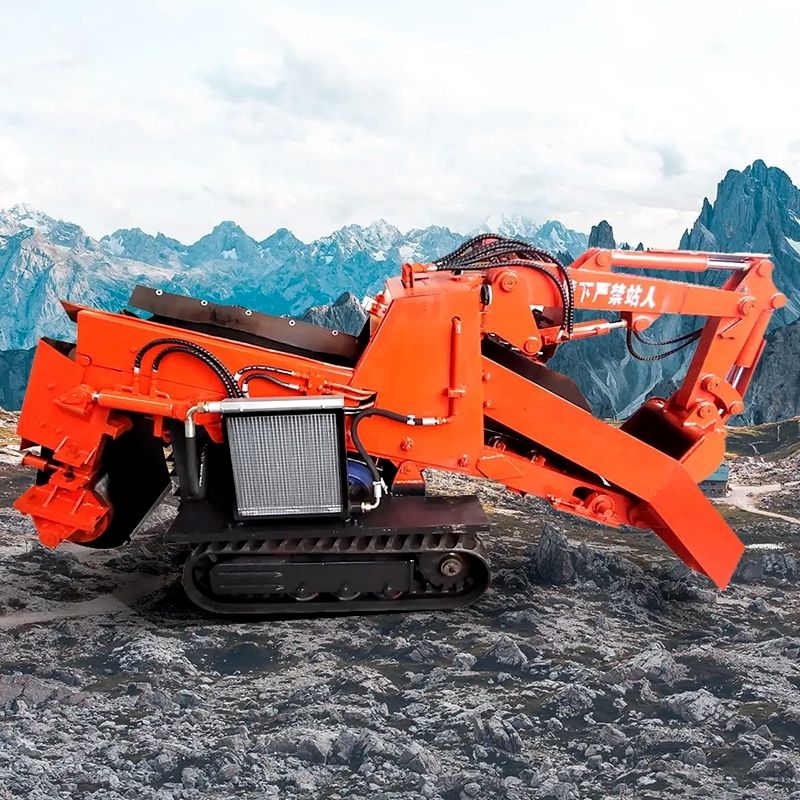

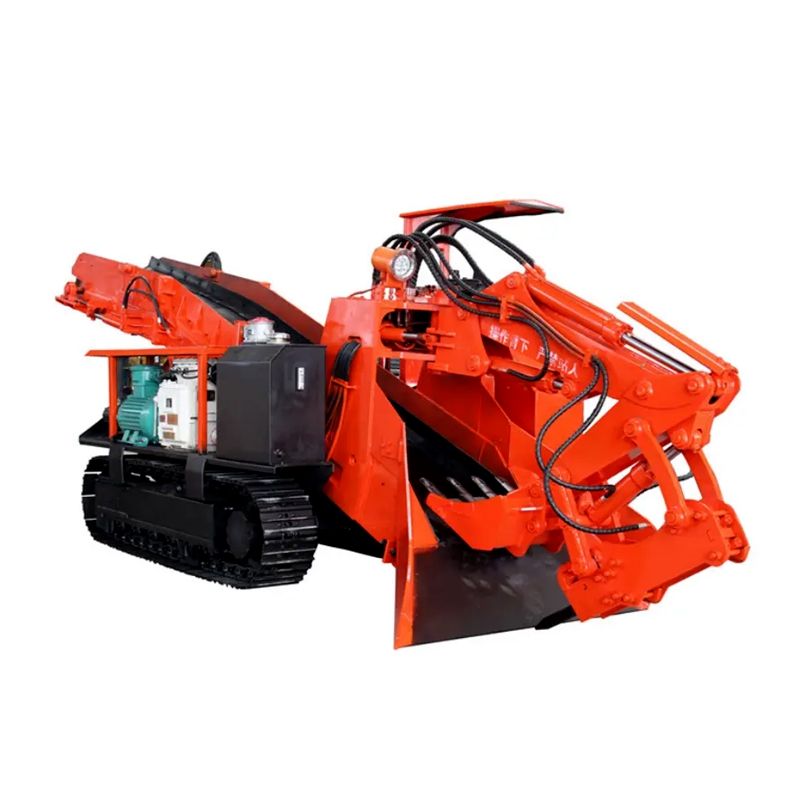

Crawler Mucking Loader

Working arm

The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

Conveying belt

It is made of high hardness material. The special design to ensure the successful conveying of the rock

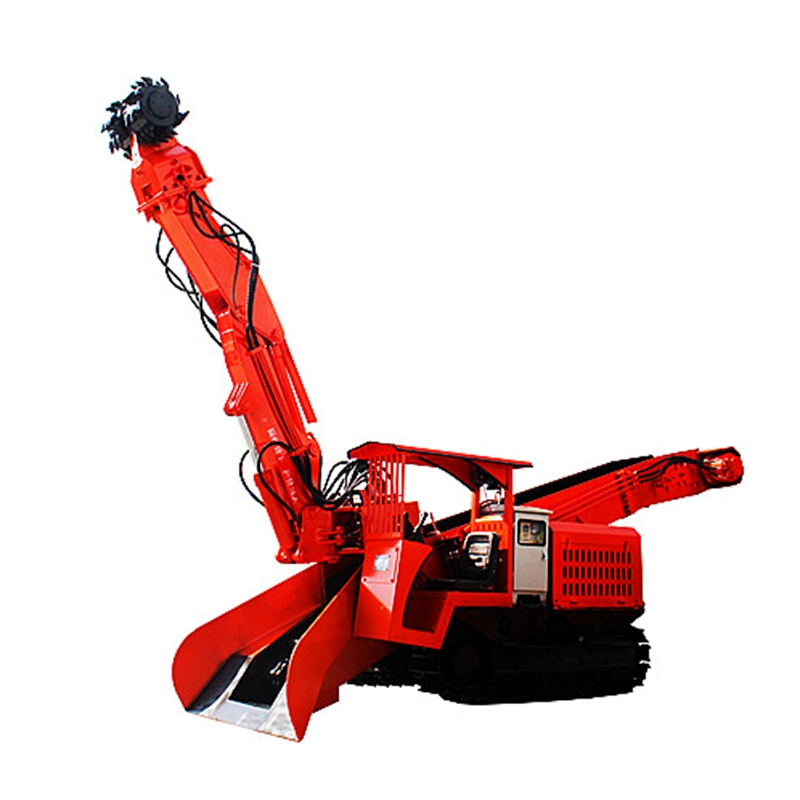

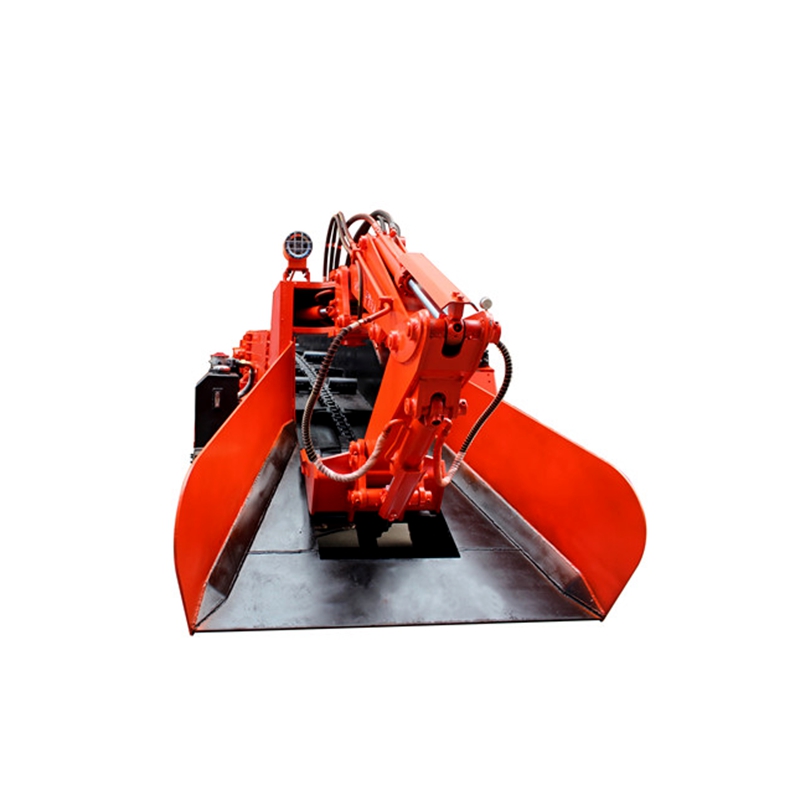

Crawler Mucking Loader

Removable mode

Through reasonable design can realize the field assembly construction convenient, that crews can assemble just as easily as they can break them down into movable parts

PRODUCT SPECIFICATION

Model	BJ-80/37L
Machine Weight	6500kg
Loading Ability	80m³
Digging Width	2800mm
Digging Distance	1800mm
Digging Height	2100mm
Digging Depth	700mm
Dumping Height	1400-1600
Dumping Distance	1500mm(could be raised)
Traveling Speed	0.63±5%km/h
Speed of Scraper Chain	0.5m/s
Working pressure	≤20Mpa
Ground clearance	200mm
Power	37kw
Operate mode/Operation Manner	Mechanical pilot
Crawler Inner Width	900mm
Maximum Material Dimension(Width*Height)	650600500
Overall Dimensions during transport	550015501650mm
Overall Dimensions during operating	700015502000
Grade ability	≤25º
Adaptive Tunnel Fracture(Width*Height)	2*2m
Adaptive Tunnel Slope	/

PRODUCT APPLICATIONS

Tunnel Mucking Loader
