Provide High Performance Tunnel Mucking Loader

Easy Maintenance: Semi-enclosed assembly design streamlines daily inspection and upkeep.

User-friendly Operation: Simple control reduces operational complexity for easier use.

Remarkable Energy-saving: Optimizes energy consumption, reducing waste for long-term economic efficiency.

Air-friendly Operation: Minimizes tunnel air pollution, creating a healthier construction environment.

Contact Now

Product Details

The BJ-120/30-B crawler mucking rock loader is a high - performance, continuous - working ore - handling machine. Mainly, it's applied to the excavation of mine hard - rock roadways and part - coal rock roadways. Additionally, it can be used for loading operations in water - diversion tunnels, subway tunnel construction, and civil air - defense cavern building. It can be used in conjunction with the hydraulic mine - specific drill rigs produced by our company. This combination realizes the mechanized operation of mine excavation and significantly speeds up the excavation progress. Due to its crawler configuration, it demonstrates outstanding adaptability in small - section and sloped areas, offering superior stability and grip compared to wheel - type counterparts.

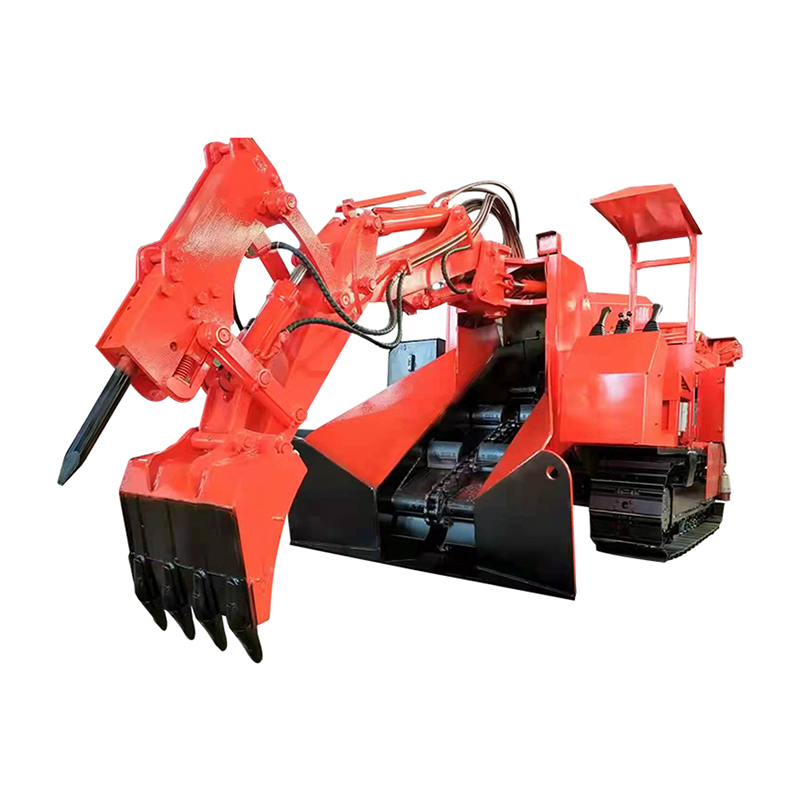

Tunnel Mucking Loader

DETAIL PRESENTATION

Tunnel Mucking Loader

PRODUCT SELLING POINTS

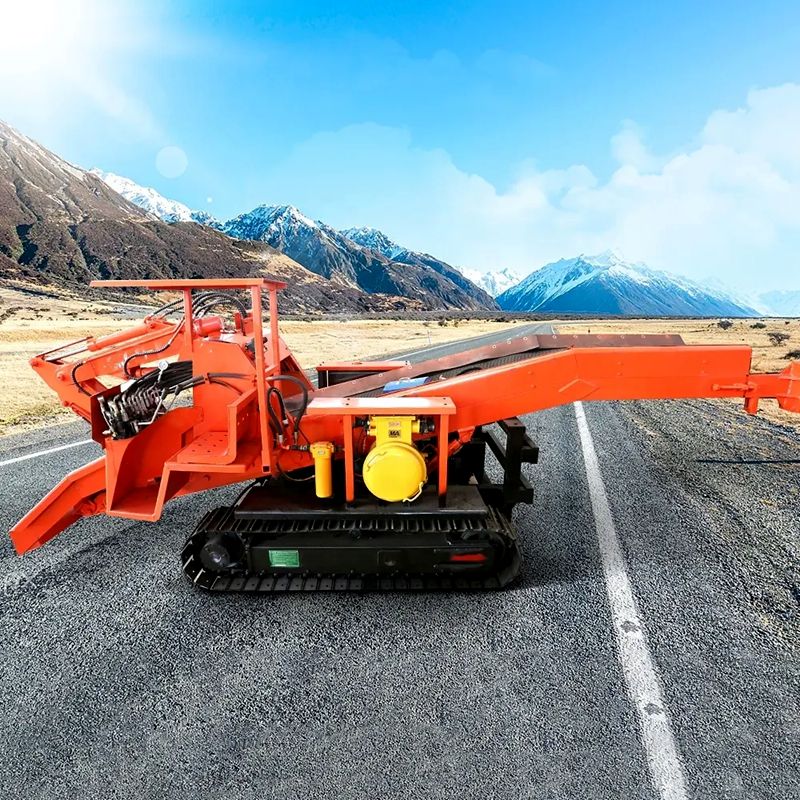

Crawler Mucking Loader

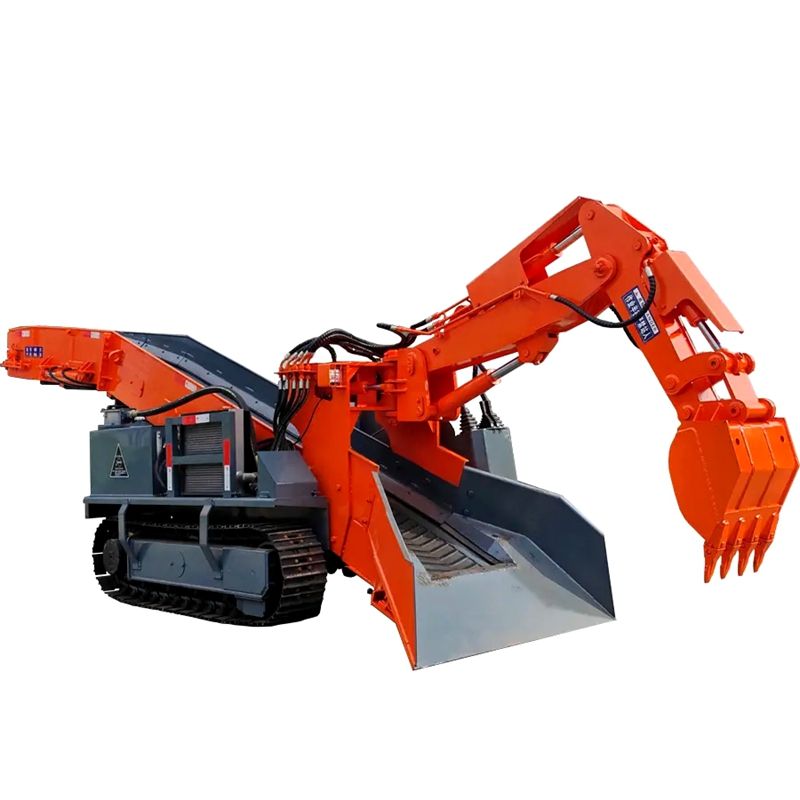

Working arm

The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

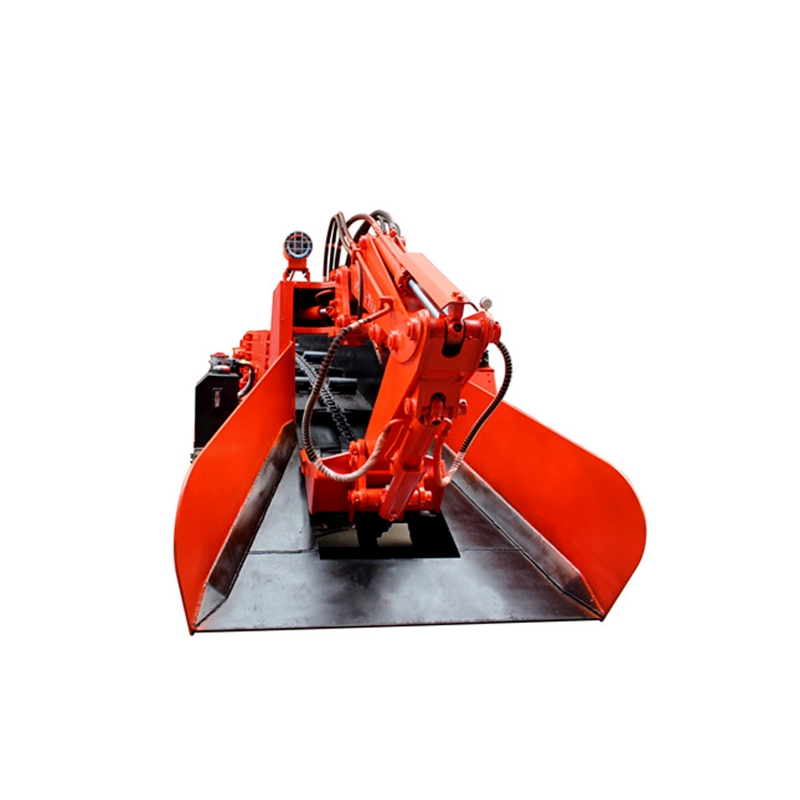

Conveying belt

It is made of high hardness material. The special design to ensure the successful conveying of the rock

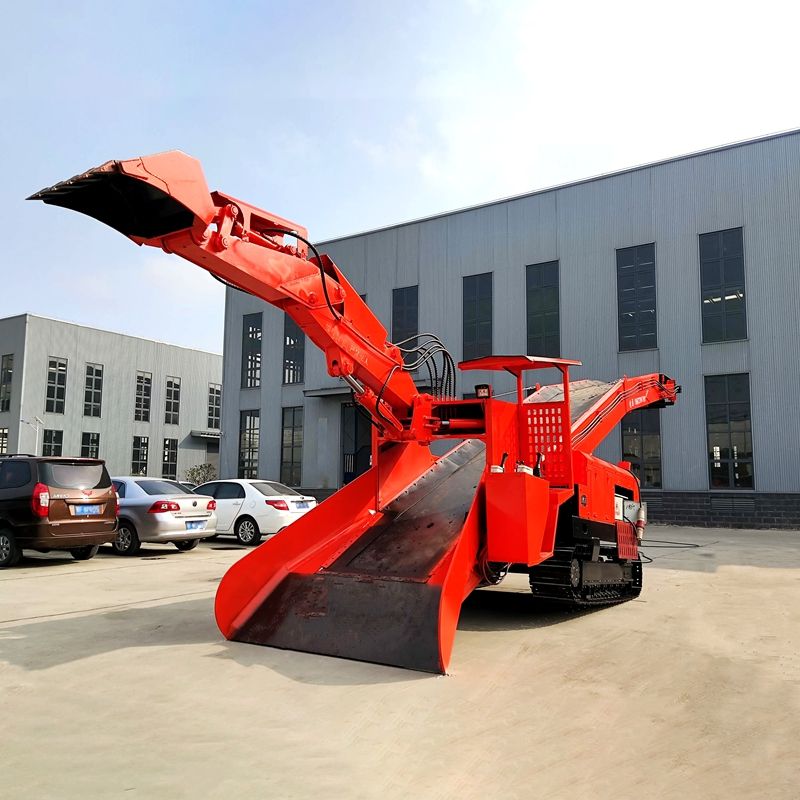

Crawler Mucking Loader

Removable mode

Through reasonable design can realize the field assembly construction convenient, that crews can assemble just as easily as they can break them down into movable parts

PRODUCT SPECIFICATION

Model	BJ-120/30-B
Loading Capacity	120 m³/h
Total Machine Mass	7800 kg
Minimum Turning Radius	≤9 m
Excavating Width	3800 mm
Excavating Height	3200 mm
Excavating Depth	≤500 mm
Digging Reach (from Shovel Mouth)	1800 mm
Unloading Height	≥1850 mm (Customizable)
Unloading Distance	≥2450 mm (Customizable)
Gradeability	≤25 °
Scraper Chain Speed	40±2 m/min
Travel Speed	1.45 km/h
Maximum Material Pass - through Size	600×550 mm
Minimum Ground Clearance	≤280 mm
Average Track Ground Contact Pressure	≤0.1 MPa
Rated Working Pressure	25 MPa
Safety Valve Opening Pressure	26 MPa
Total Power of Main Motor	30 kw (Dual 15)
Voltage Rating	660 V (380)
Overall Dimensions (Length×Width×Height)	7000×2000×1950 mm
Scraper Conveyor Mechanism Type	Single - Chain Single - Drive

PRODUCT APPLICATIONS

Tunnel Mucking Loader
