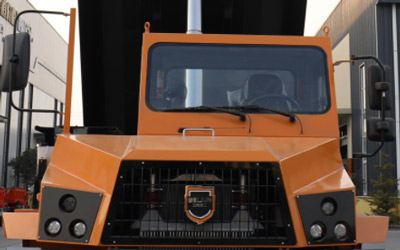

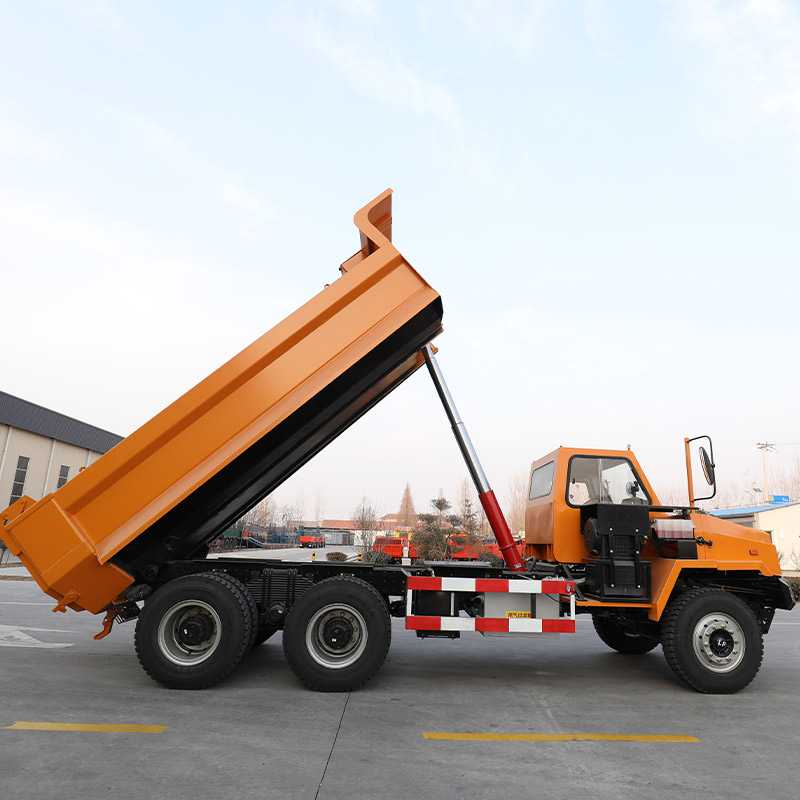

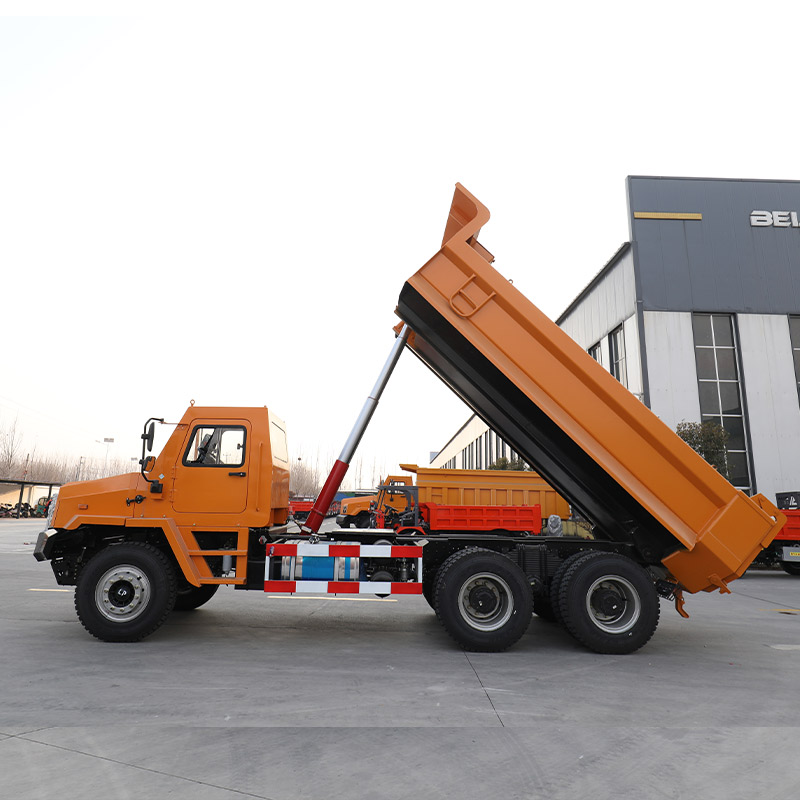

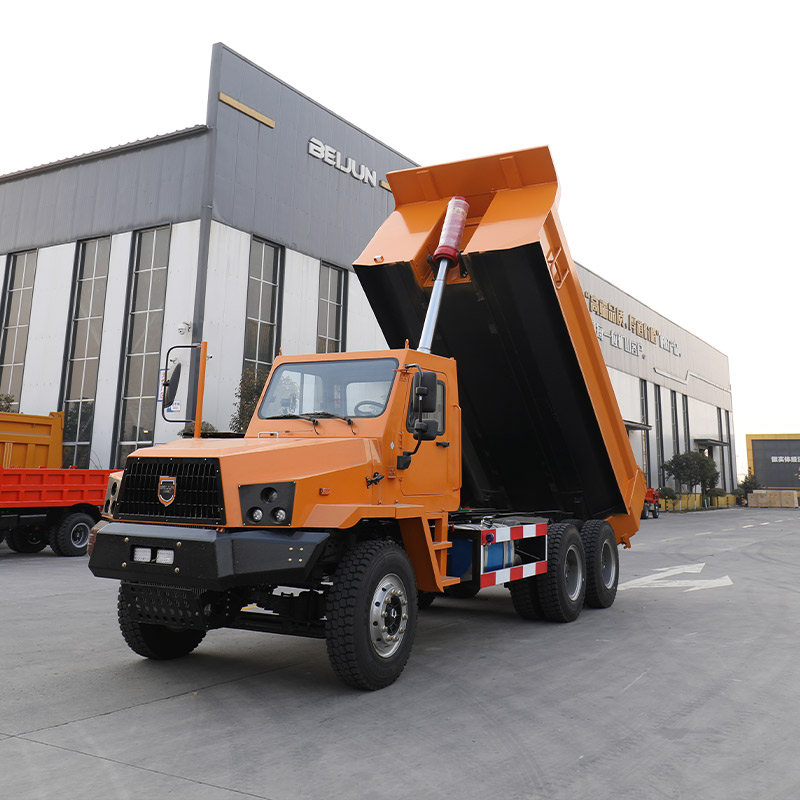

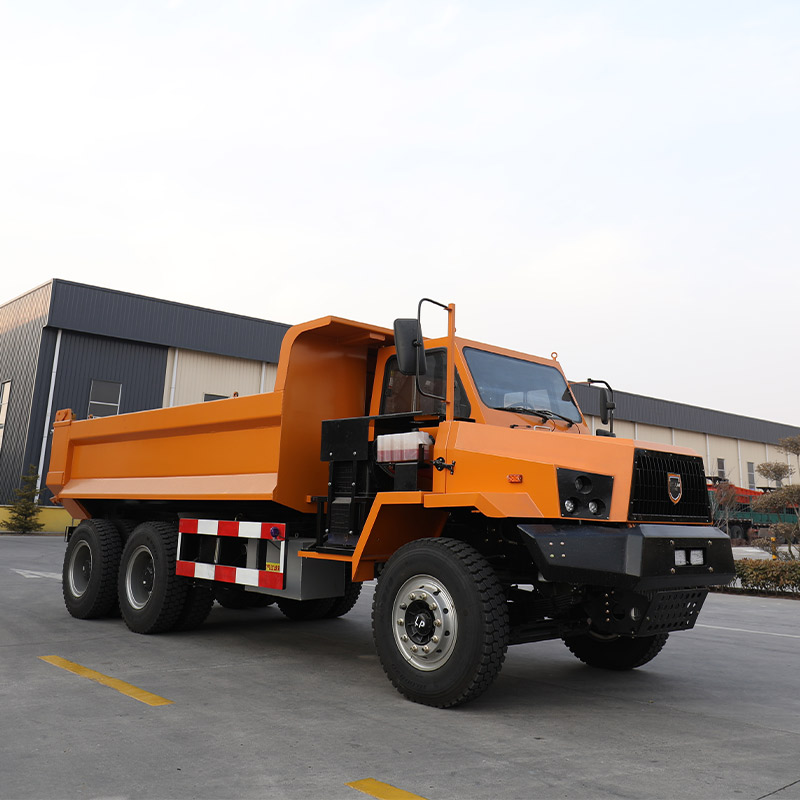

25 Ton Underground Mining Truck

Powerful Performance: High torque engine with excellent climbing ability, optimized for heavy loads and efficiency in steep mining conditions.

Exceptional Load-Bearing Capacity: 1.5x the capacity of standard vehicles, ensuring reliability for heavy material transport in underground mines.

Superior Safety and Durability: Fully sealed wet braking, low center of gravity, and rugged build ensure safe operation in harsh conditions.

Comfortable and User-Friendly Design: Well-designed cabin and intuitive controls enhance operator comfort, productivity, and satisfaction.

Contact Now

Product Details

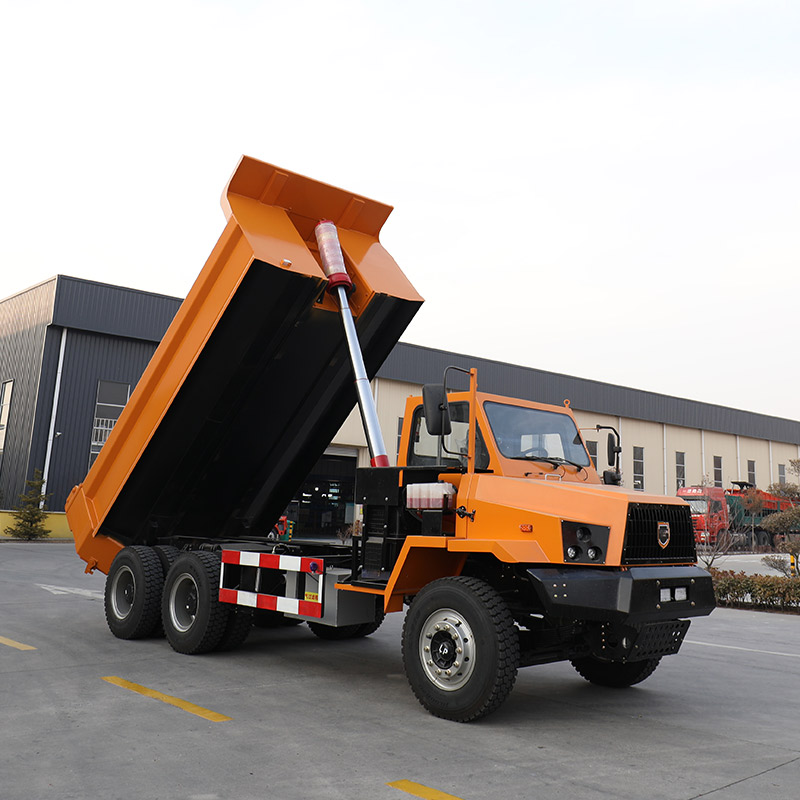

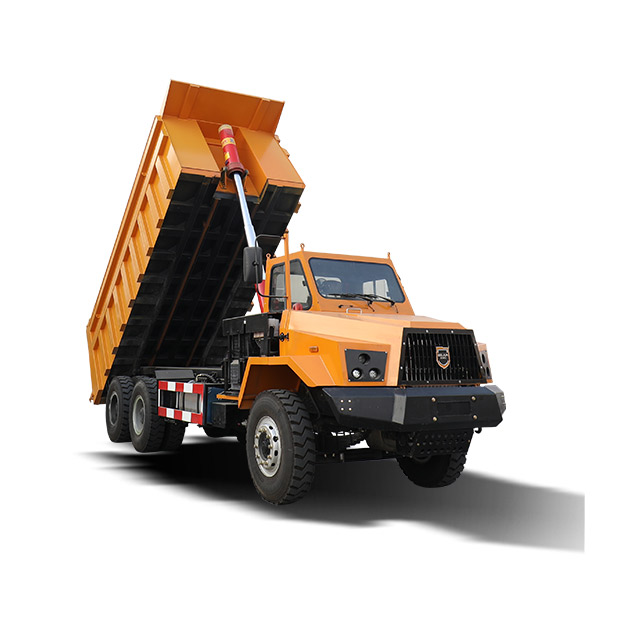

The Beijun 25 Ton Mining Dump Truck is specifically designed for efficient and reliable material transport in underground mining operations. Equipped with a powerful engine, it provides high torque and exceptional climbing ability, allowing it to carry heavy loads even on steep inclines. The truck's load-bearing capacity is 1.5 times greater than standard road vehicles, ensuring dependable performance under tough mining conditions.

Its rugged construction, including a robust lifting mechanism, cargo compartment, suspension system, and vehicle frame, guarantees durability and reliability in harsh underground environments. The fully sealed wet braking system is unaffected by external dust and sand, ensuring superior braking performance for safe operation. Additionally, the truck's low center of gravity enhances stability, and its dedicated engine and transmission provide excellent adaptability in diverse environments.

Certified with the national "KA" Mining Product Safety Mark, the Beijun mining dump truck meets strict safety and environmental standards, making it an ideal choice for efficient, safe, and reliable transportation in underground mining projects.

25 Ton Underground Mining Truck

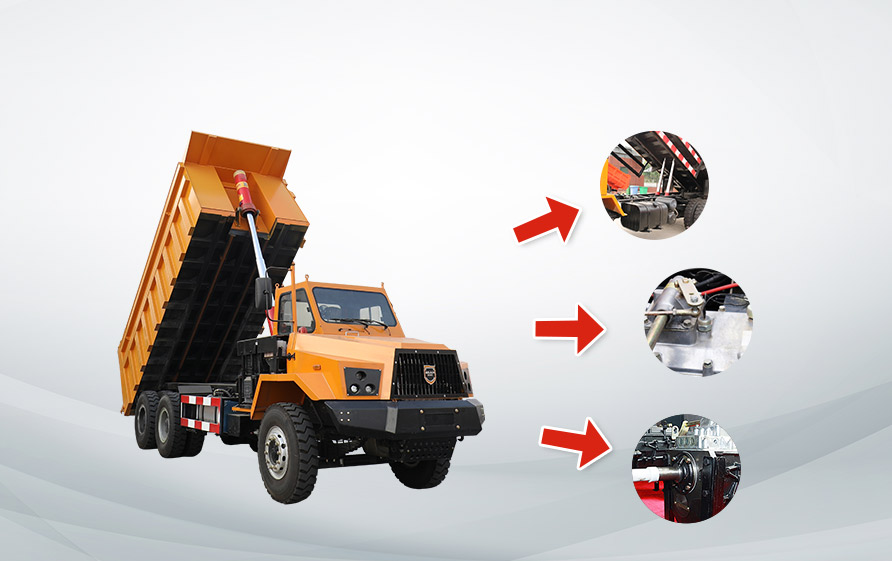

DETAIL PRESENTATION

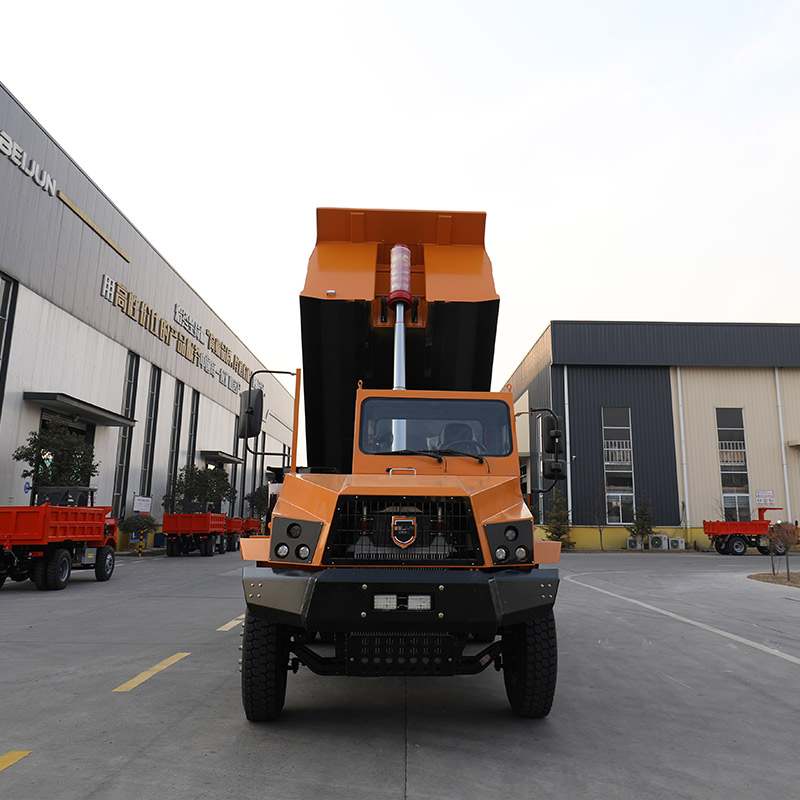

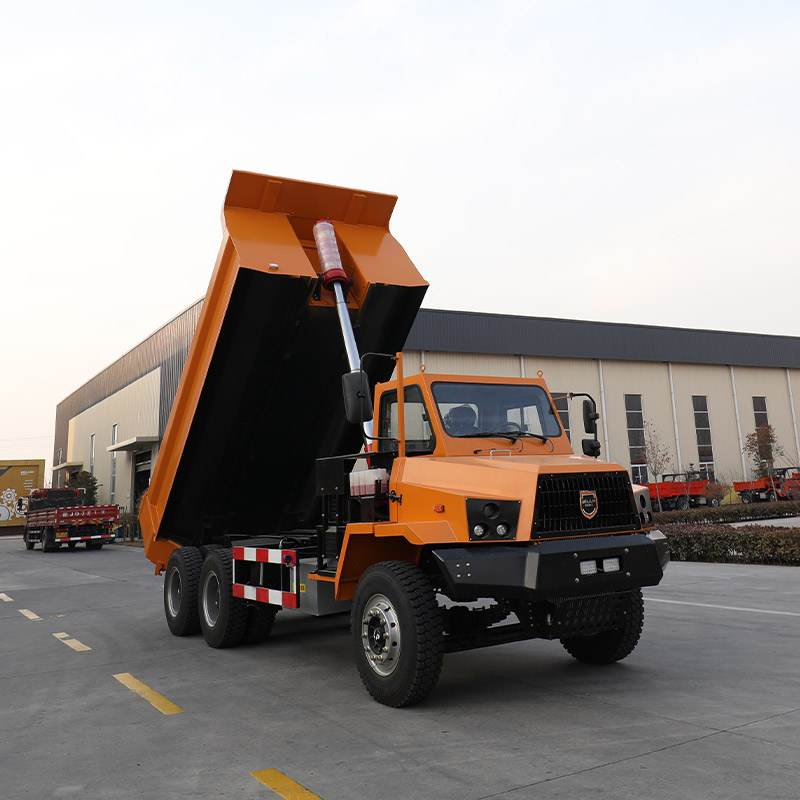

25 Ton Underground Mining Truck

PRODUCT SELLING POINTS

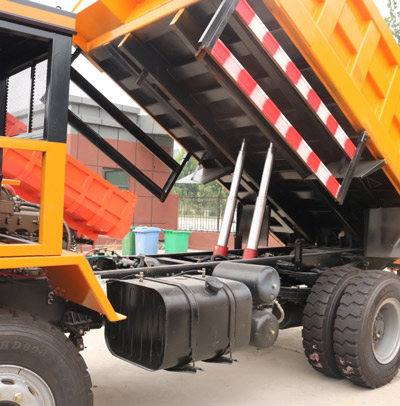

Type of dump

Parallel bar hydraulic self-unloading

Transmission

Optimized design of transmission ratio, stable performance, high efficiency, light gear shift, fuel-saving gear design precision, long service time

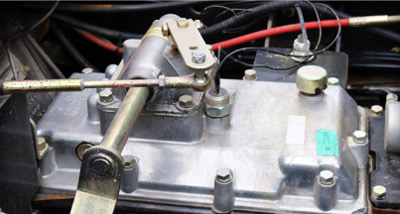

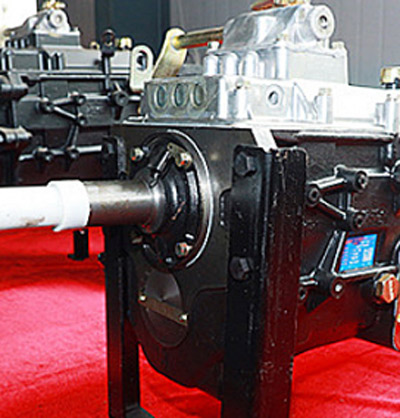

Gearbox

Shaanxi Faust 10JSD220,Energy saving, emission reduction and extended engine life

Cab

Closed cab, air conditioning, comfortable driving safety protection

Compact and flexible design for tight downhole Spaces

Customizable Ultra-Low Driving System: Ideal for special working conditions

Features

Compact and Agile Design: The Beijun underground dump truck features a compact design with a small turning radius and specially crafted cab, suspension frame, and cargo compartment. This ensures excellent maneuverability in confined underground spaces such as tunnels and ramps.

Enhanced Safety Features: Equipped with waterproof and moisture-proof electrical components, anti-slip tires, and improved lighting, the truck enhances obstacle-crossing ability and ensures high safety in challenging underground environments with poor lighting and slippery surfaces.

Powerful Performance: Driven by a robust engine with high torque, excellent gradeability, and superior starting performance, the truck efficiently transports heavy loads in rugged underground conditions.

High Bearing Capacity and Durability: Built to mining vehicle standards, the Beijun dump truck offers a bearing capacity 1.5 times that of regular road vehicles. Its durable construction and high-quality components ensure it thrives in harsh underground environments.

This truck is the ideal solution for mining companies seeking reliability, efficiency, and safety in confined underground spaces.

PRODUCT SPECIFICATION

Item	Parameter
Model	UQ-25
Engine model	YUCHAI YC6L340-33
Engine power	243kw
Transmission model	Shaanxi Faust 10JSD220
Drive axle type	Dual rear axle air brake
Front Axle Model	Hand axle
Rear Axle Model	Hand axle20T
Tire	1000R20 steel wire tyre for Kunlun Mine
Cab type	Enclosed cab
Dimension of Bottom Spring Plate	90mm*16mm
Bucket Size	5000mm2500mm1000mm
Thickness of Bucket Steel Plate	bottom 16mm side 10mm
Unloading Type	Hydraulic Double Dumper
Steering Type	Hydraulic power steering
Braking Type	Air Brake
Driving Position	Left Hand Drive
Cooling system	Water Cooling System
Loading Capacity	25 ton

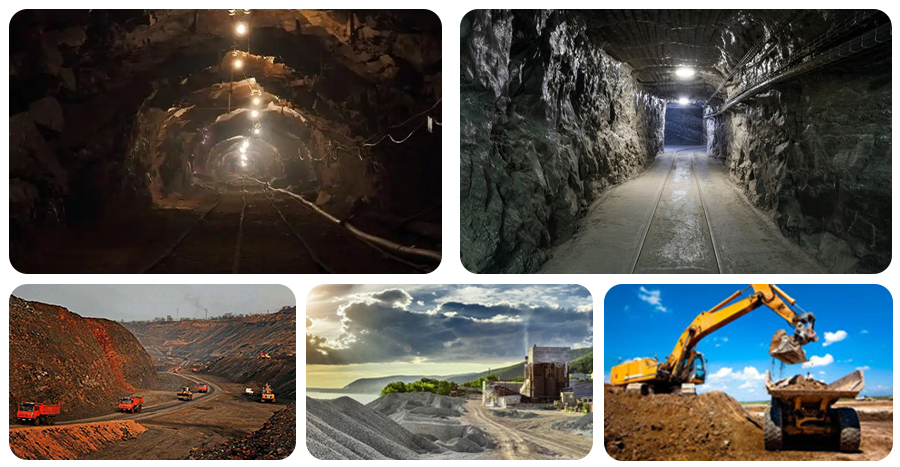

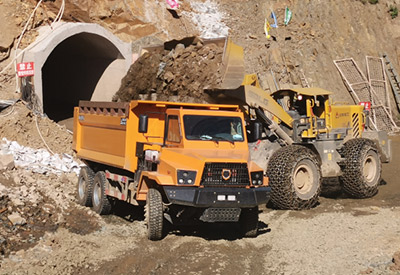

PRODUCT APPLICATIONS

25 Ton Underground Mining Truck

ABOUT US

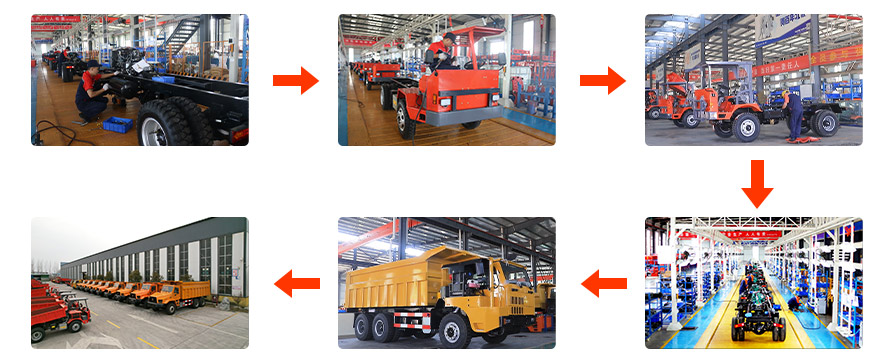

Shandong Beijun Machinery Industry Co., Ltd. is a prominent enterprise specializing in the research, development, and manufacturing of mining and construction machinery. Located in Jining, Shandong, the company covers 100 acres and operates a 20,000-square-meter production facility. With advanced production technology, Beijun has an annual output capacity of 4,000 mining trucks, 500 fully hydraulic crawler trucks, and 3,000 aerial work platform trucks.

The company holds ISO9001 quality management certification, EU CE certification, and mine safety production qualifications. Beijun integrates an advanced ERP system to enhance enterprise resource planning and management using modern IT solutions. Its main products include mining transport vehicles, crawler transport vehicles, and aerial work platform trucks.

With a highly skilled technical team, robust quality control systems, cutting-edge testing facilities, and efficient production processes, Beijun consistently delivers top-quality products that meet customer needs and promote sustainable growth. The company employs over 200 professionals, including 30 technicians, 40 marketing managers, and 15 mechanical design professors.

Committed to innovation and independent R&D, Beijun follows the "Quality First, Customer First" principle. Its products have earned strong recognition in markets across Africa, South America, and Southeast Asia, positioning the company as a reliable and forward-looking leader in the industry.
