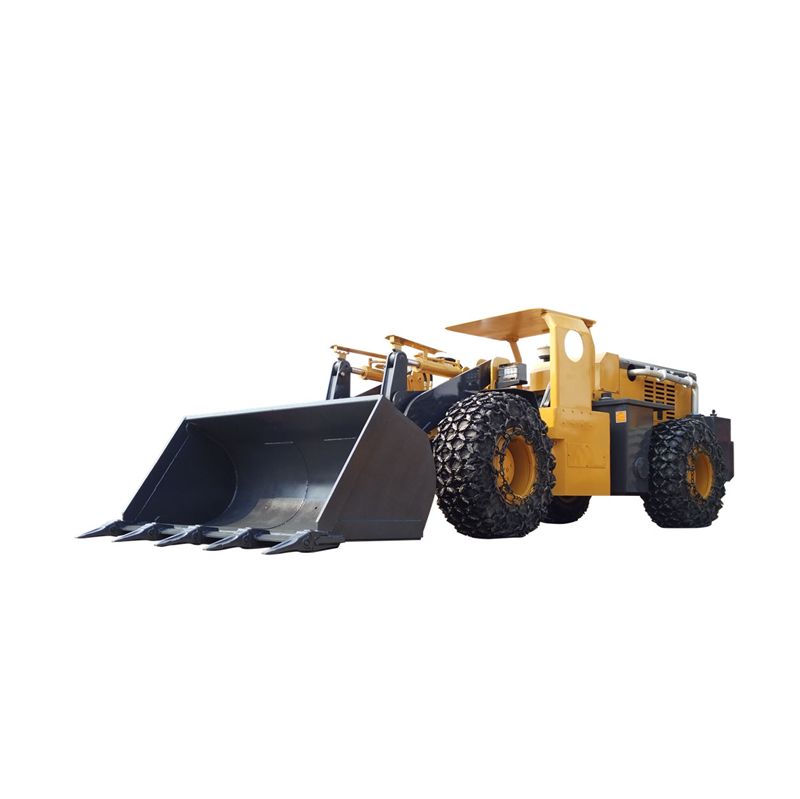

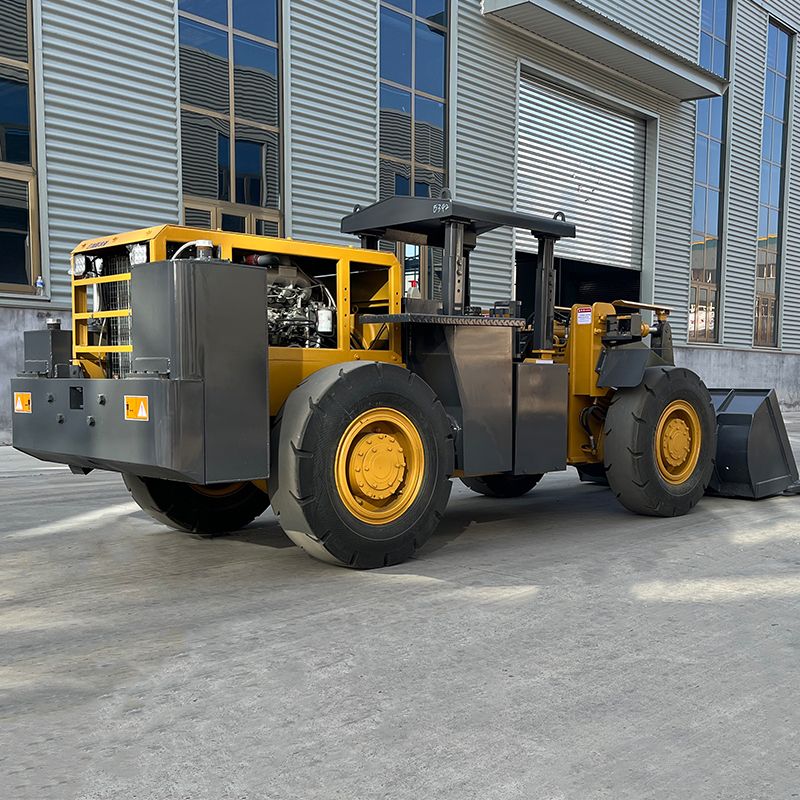

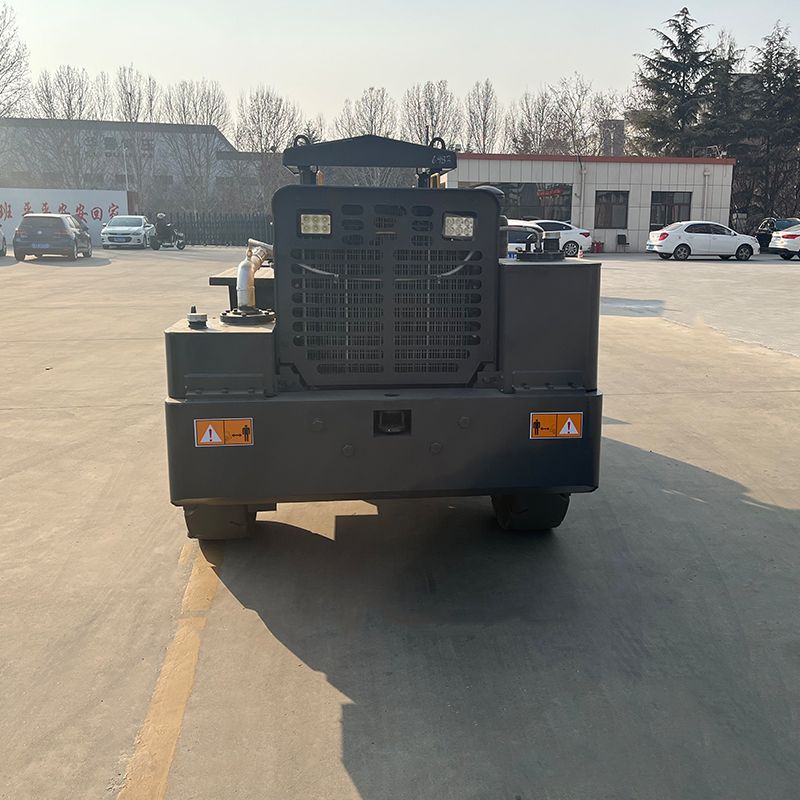

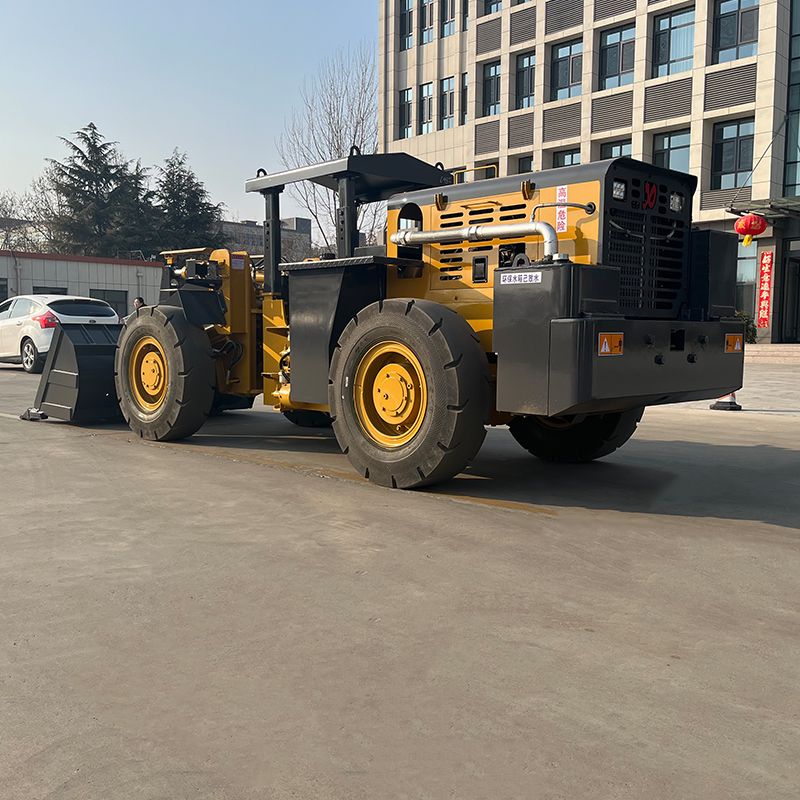

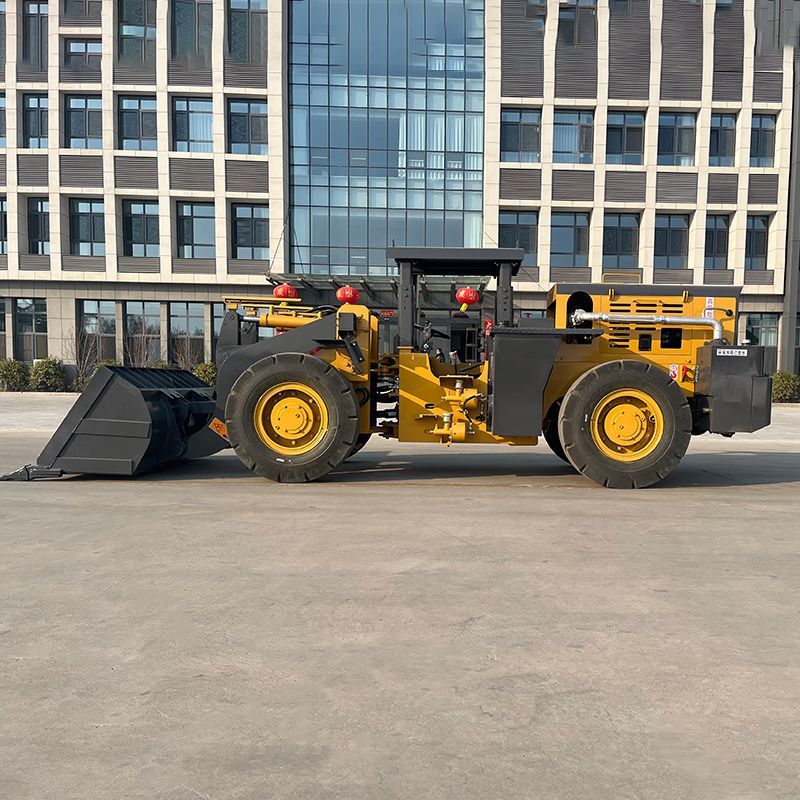

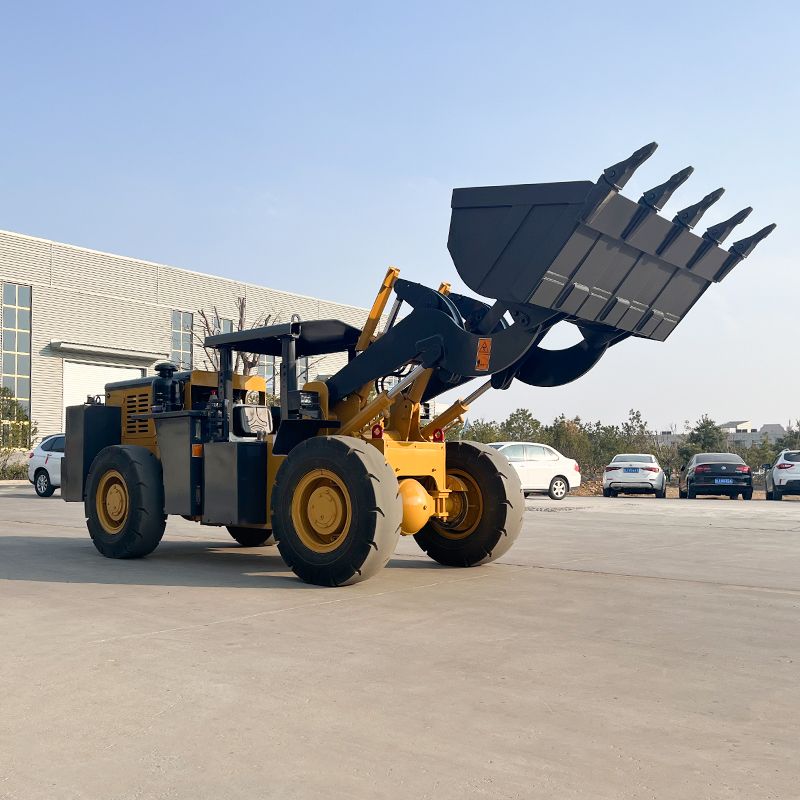

4 T Wide-Body Mining Loader Superior Stability Design

2.4-Meter Wide Frame: Provides exceptional stability for 4-ton loading operations

2.1m³ Bucket Capacity: Handles large material volumes with each cycle

92kW Engine Options: Choose between YTO or Yuchai power systems

35 km/h Transport Speed: Ensures fast cycle times between loading areas

2530mm Dumping Height: Perfectly interfaces with underground haulers

Contact Now

Product Details

BJ30C Wide-Body Loader: Unshakable Performance for Demanding Mines

Mines requiring maximum stability will appreciate the BJ30C's 2.4-meter platform. This wider stance transforms heavy loading tasks into smooth operations, handling full 4-ton payloads with exceptional balance. The machine's expanded footprint delivers superior traction and control that bulkier equipment struggles to match.

Choose between proven 92kW power plants from YTO or Yuchai to match your operational needs. The intelligent power train provides precise loading control while achieving 35 km/h transport speeds for rapid cycle completion. With optimized 2530mm dumping clearance, the loader interfaces perfectly with underground haulage systems.

Built around a reinforced chassis and heavy-duty 17.5-25 tires, this loader thrives in continuous operation. The 2800mm wheelbase and 1800mm track width create exceptional stability during intensive loading cycles. For operations prioritizing performance over compact dimensions, the BJ30C wide-body configuration delivers reliable productivity that keeps your mine moving forward.

3.5T Eco Friendly Underground Loader Euro IV Compliant

DETAIL PRESENTATION

Underground Wheel Loader

PRODUCT SELLING POINTS

	01 ARTICULATED PENDULUM JOINT THE LEGENDARY ARTICULATED SWING JOINT. ALL FOUR WHEELS ARE IN CONSTANT CONTACT WITH THE GROUND AND THE MACHINE MOVES WITH MAXIMUM TRACTION.
02 HIGH AND LOW SPEED DRIVING LONG-DISTANCE SWITCHABLE HIGH-SPEED DRIVING MODE IMPROVE WORK EFFICIENCY .
	03 HYDRAULIC CYLINDER HYDRAULIC LIFTING, GOOD SEALING STABLE OPERATION, NO OIL LEAKAGE
04 BUTTER POUR INLET EACH BUTTER FILLING PORT IS EQUIPPED WITH A CAP FOR DAILY MAINTENANCE
	05 LARGE SELECTION OF TIRESTHE OPTIMAL TYRES FOR EVERY SUBGRADE - YOU HAVE A WIDE SELECTION OF DIFFERENT TYRES AVAILABLE FOR YOUR EVERYDAY.

Underground Wheel Loader

PRODUCT SPECIFICATION

Model	BJ30C (BJ940M Wide type, 2.4 meters wide)
Bucket capacity (m³)	1.7/2.1
Rated load (T)	4
Operating weight (T)	10.5
Speed (km/h)	0-35
Ⅰ/Ⅱ gear	7.0-12.5
Ⅲ/Ⅳ gear	31-35
Reverse gear (km/h)	Gear I 14 / Gear II 25
Overall dimension (L×W×H mm)	7000×2400×2450
Wheel base (mm)	2800
Wheel tread (mm)	1800
Max. dumping height (mm)	2530
Dumping reach (mm)	1265
Engine model	Dongfanghong YTO 6110 / Yuchai 6108 / Yuchai 6105 turbochargers
Rated power (kW)	92
Tire model	17.5-25

ABOUT US

Underground Wheel Loader

At our Shandong headquarters' training center, technical archives from all significant projects over twenty years are displayed. New engineers must study these "industrial case histories" to understand equipment behavior across different environments. This case-based learning system ensures technical inheritance isn't just theoretical indoctrination, but the passing of experience and wisdom between generations.
