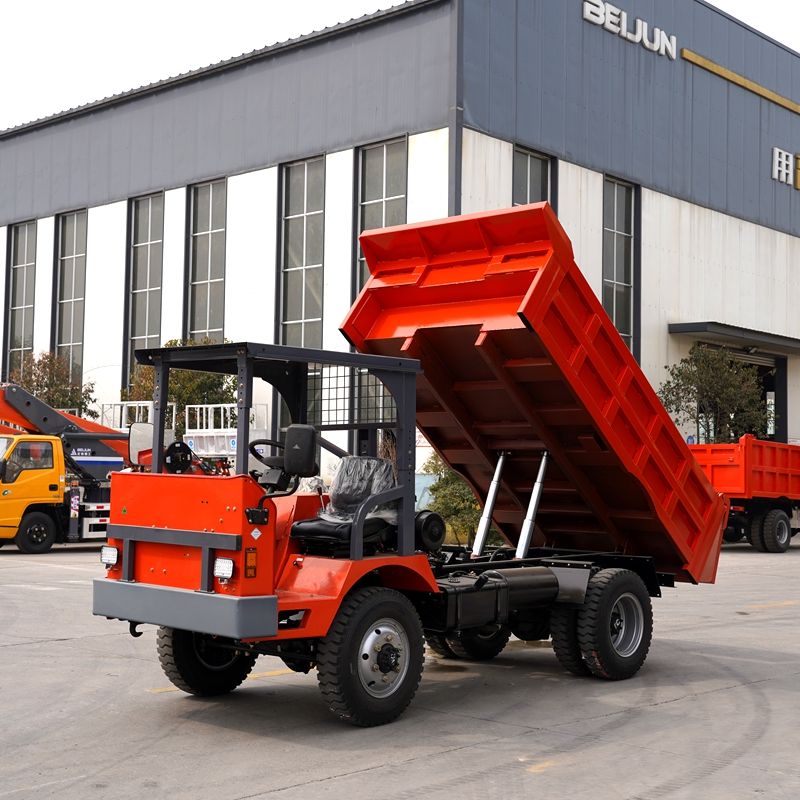

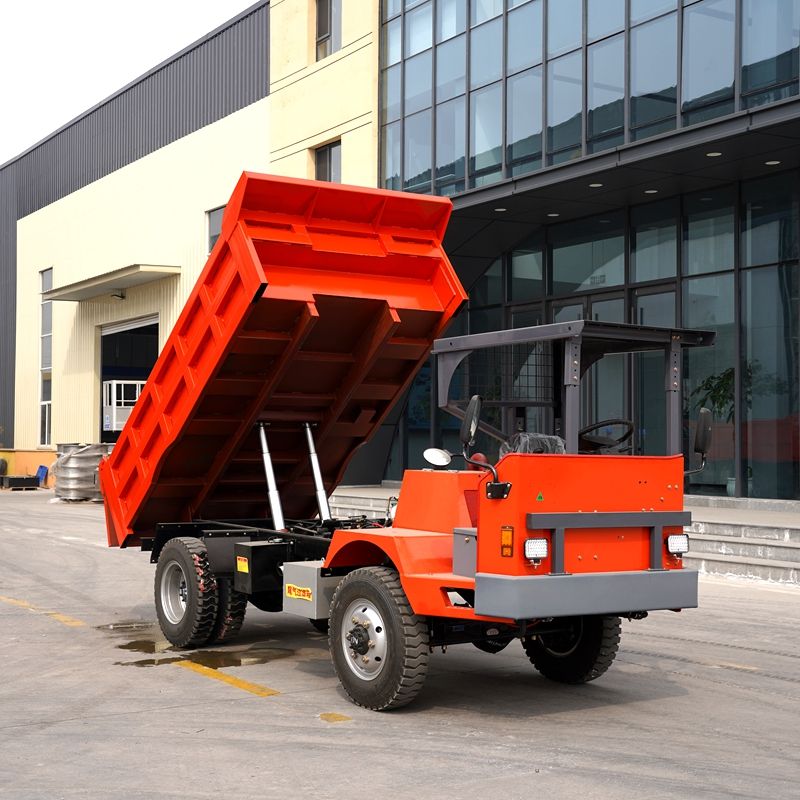

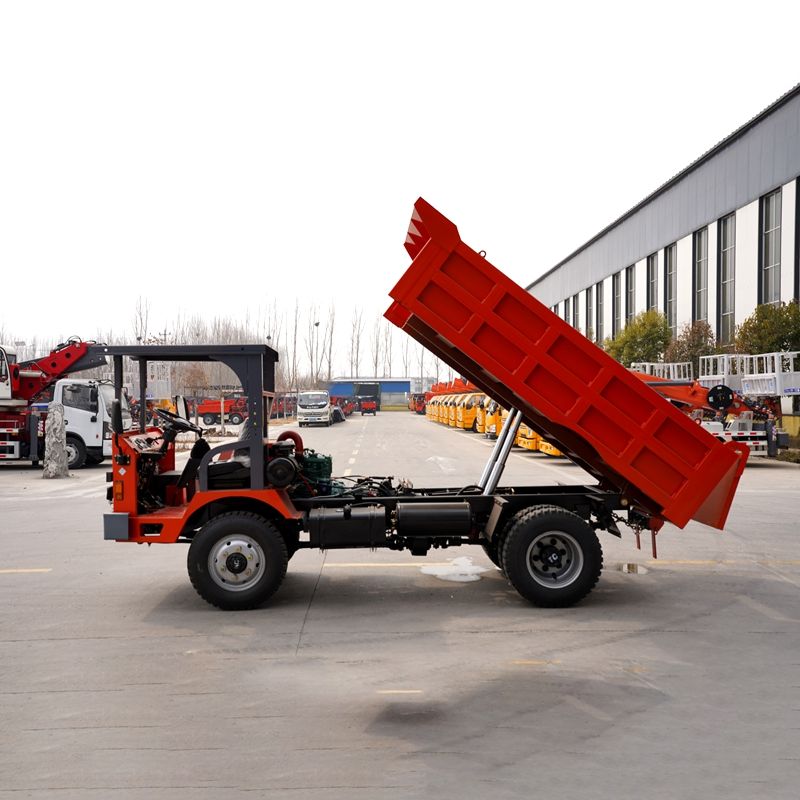

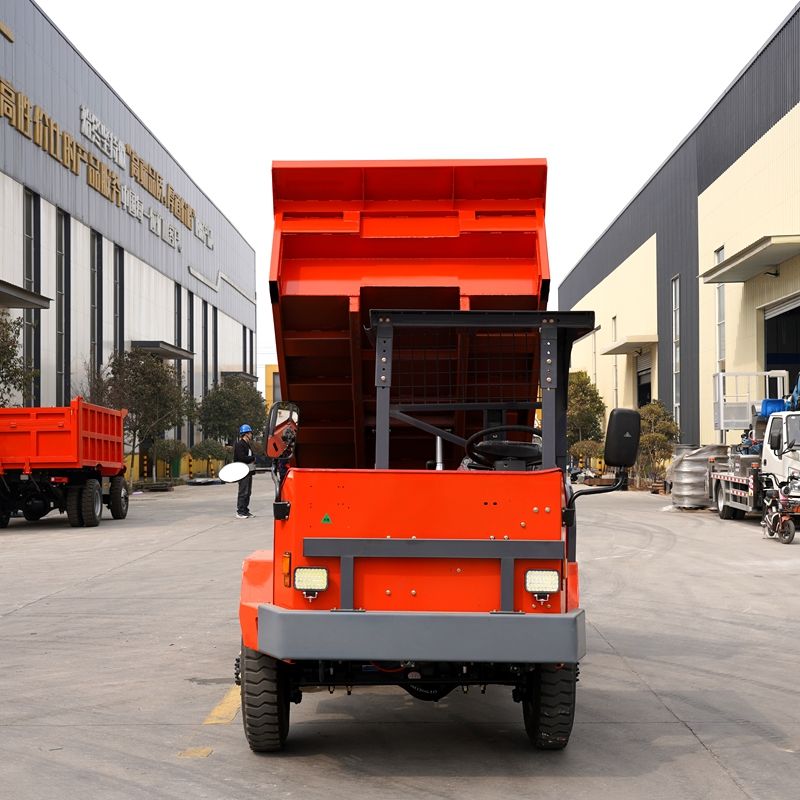

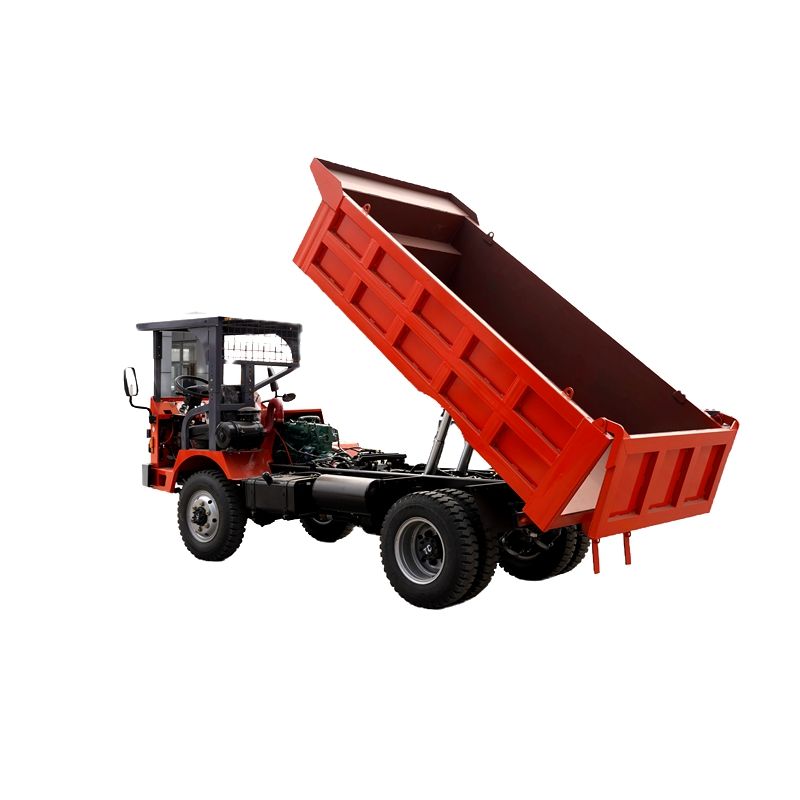

5 T 4WD Small Underground Mining Truck

Smooth Operation & Control：Ergonomic design and precise hydraulics ensure agile maneuvering. Compact structure aids navigation in narrow mining zones, optimizing efficiency.

Heavy-Duty Construction：Reinforced steel chassis, industrial axles, and sealed components resist corrosion, dust, and impacts.

Low Total Cost of Ownership：Fuel-efficient engines and modular maintenance reduce operational costs. Durable components minimize downtime for cost-sensitive operations.

All-Terrain Adaptability：Deep-grip tires and robust suspension ensure traction on mud, gravel, and uneven terrain. Versatile for open-pit and underground transport.

Contact Now

Product Details

Combining a renowned-brand engine, advanced drivetrain, and 4WD (four-wheel drive) system, this mining truck delivers unmatched performance. Its low-speed, high-torque output and 4WD traction enable effortless climbing on steep mine slopes and stable navigation through rocky, uneven tunnel networks, showcasing superior efficiency in complex underground environments.

The truck’s chassis frame—crafted from the same high-strength materials as ten-wheel heavy-duty trucks—offers 4WD-specific robustness. Reinforced to withstand the torque and stress of four-wheel propulsion, it remains stable under heavy loads and rough mine roads, resisting deformation or cracking in harsh, high-impact conditions.

Whether operating on the open expanses of pit mines or the tight corridors of iron/rare-metal mines, the truck’s 4WD system and compact design excel. Deep-tread tires and 4WD traction ensure reliable performance on mud, gravel, and inclines, while its low noise, high-horsepower engine and agile controls make it an energy-efficient, user-friendly choice for all mining transport needs.

5 Ton Small Underground Mining Truck

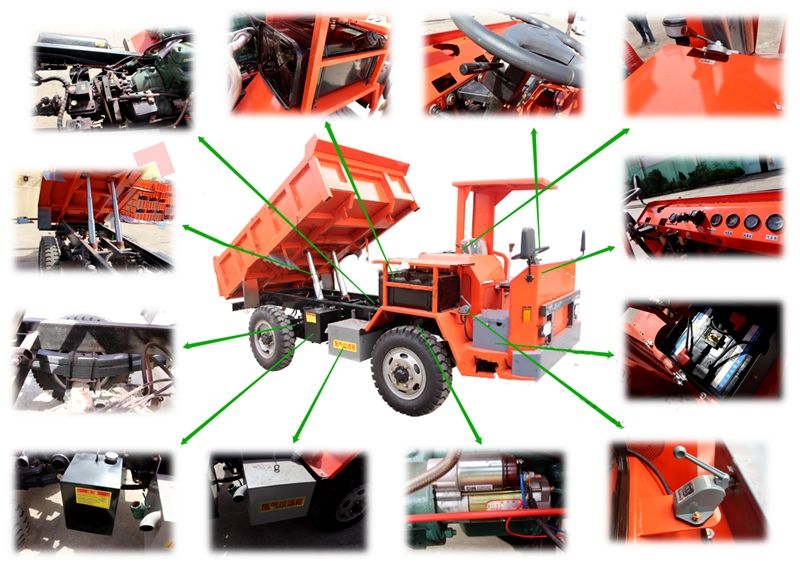

DETAIL PRESENTATION

PRODUCT SELLING POINTS

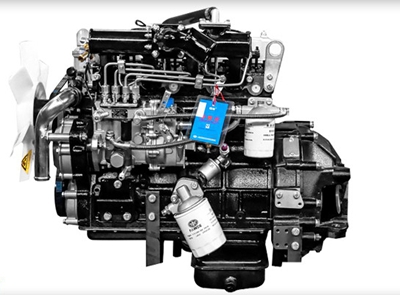

Engine

Yun nei yu chai engine strongpower stability is good

Hydraulic Dump

High strength, low center of gravity, smooth operation;

High transportation efficiency.

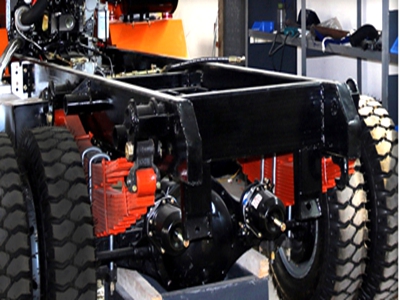

FRAME

The frame USES 70manganese material(crane big arm matenial)

custom square tube production use time is long

PRODUCT SPECIFICATION

Model Name	5 TON Wheeled Mining Dump Truck
Brand Logo	KA
Engine Model	Chang Chai 490, 63 horsepower
Transmission	Dongfeng 145 front - mounted high - low speed transmission
Axle Model	Front axle 1069, rear axle 1069
Bucket Size	2.8 * 1.6 * 0.55 (meters)
Bucket Plate Specifications	Bottom: 8mm, Side: 6mm
Tire	700 - 16 Chaoyang mining tires (double rear tires)
Frame Model	140 * 60 * 8 (mm)
Spring Plate	Front: 10 pieces, Rear: 10 + 6 pieces, 70mm * 10mm
Hydraulic Cylinder	Diameter 115mm, Stroke 900mm
Braking Method	Wet braking
Exhaust Gas Treatment	Water treatment
Driving Style	Mining - specific safety lifting canopy
Vehicle Height	1.8 meters
Shifting Method	Shift cable
Overall Dimensions	4.4 * 1.65 * 1.55 (length * width * height, in meters)

PRODUCT APPLICATIONS

5 Ton Small Underground Mining Truck

PRODUCT MANUFACTURING PROCESS

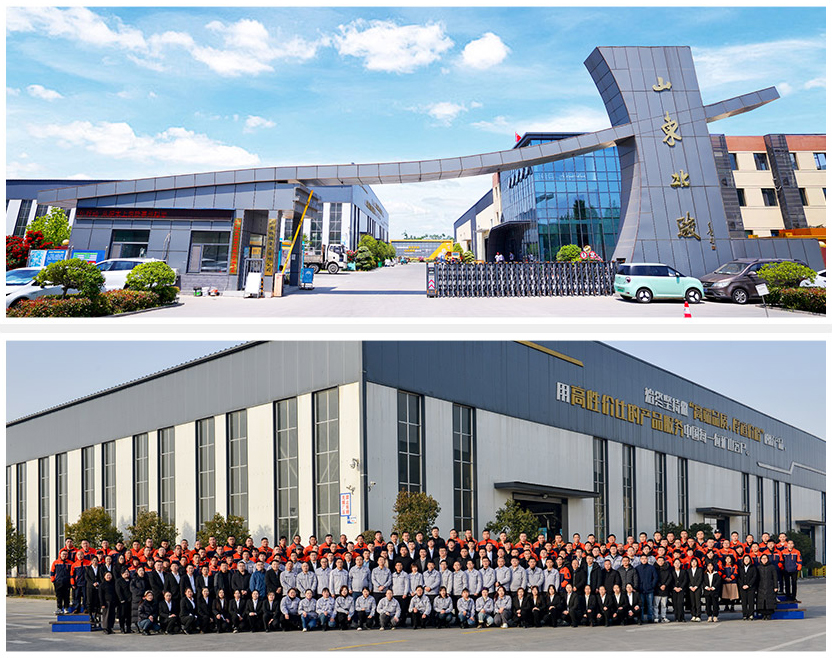

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. is a prominent leader in the development, research, and production of mining and construction machinery. Based in Jining, Shandong, the company covers a 100-acre site with a 20,000-square-meter production facility. By leveraging cutting-edge production technologies, Beijun achieves an annual production capacity of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun holds ISO9001 quality management system certification and EU CE accreditation, while adhering strictly to mining safety production standards. The company implements a comprehensive ERP system, integrating advanced information technology to enhance resource planning and operational efficiency. Beijun’s key product lines include mining transport vehicles, crawler haulage systems, and aerial work platform trucks.

Supported by a skilled technical workforce, rigorous quality control procedures, modern testing facilities, and optimized production workflows, the company consistently delivers premium-quality products. Beijun employs over 200 professionals, including 30 engineers, 40 sales experts, and 15 mechanical engineering professors with profound expertise.

Dedicated to innovation and independent R&D, Beijun adheres to its core principles of "Quality First, Customer-Centric." Its product range has earned wide acclaim in African, South American, and Southeast Asian markets, further strengthening Beijun’s standing as a trusted and innovative industry frontrunner.
