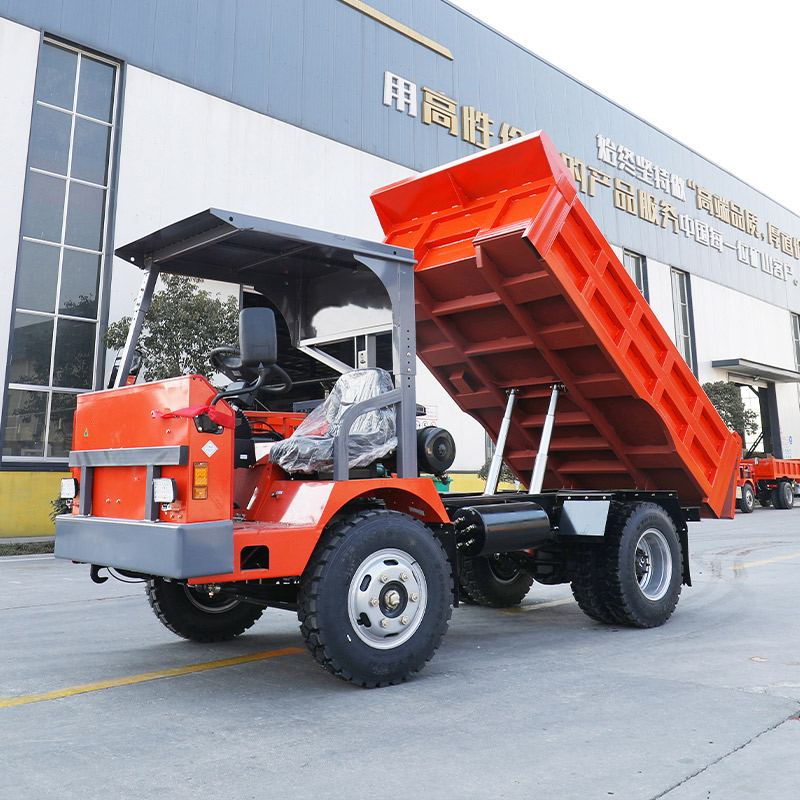

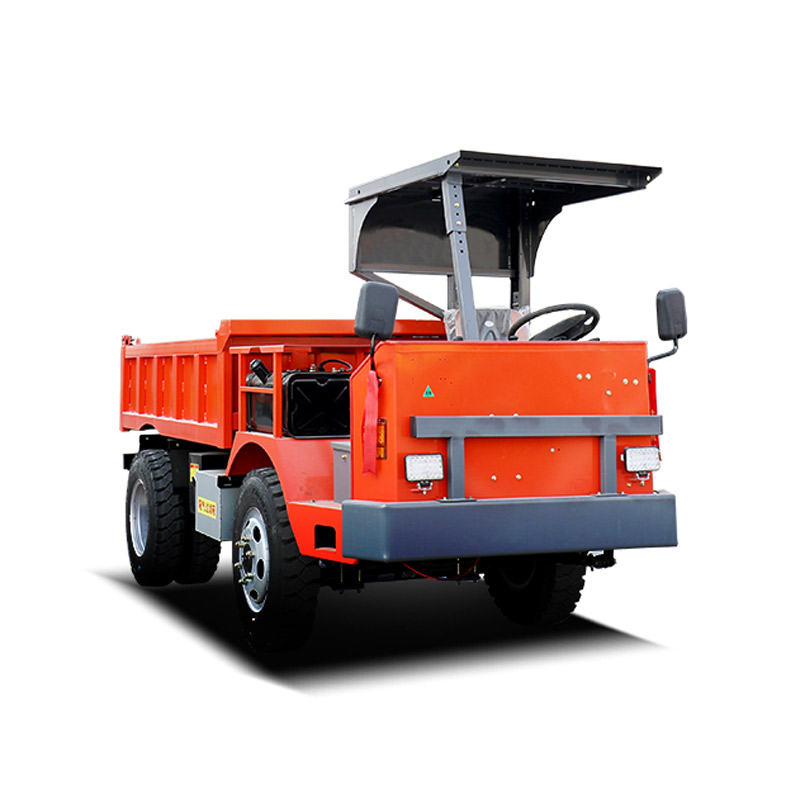

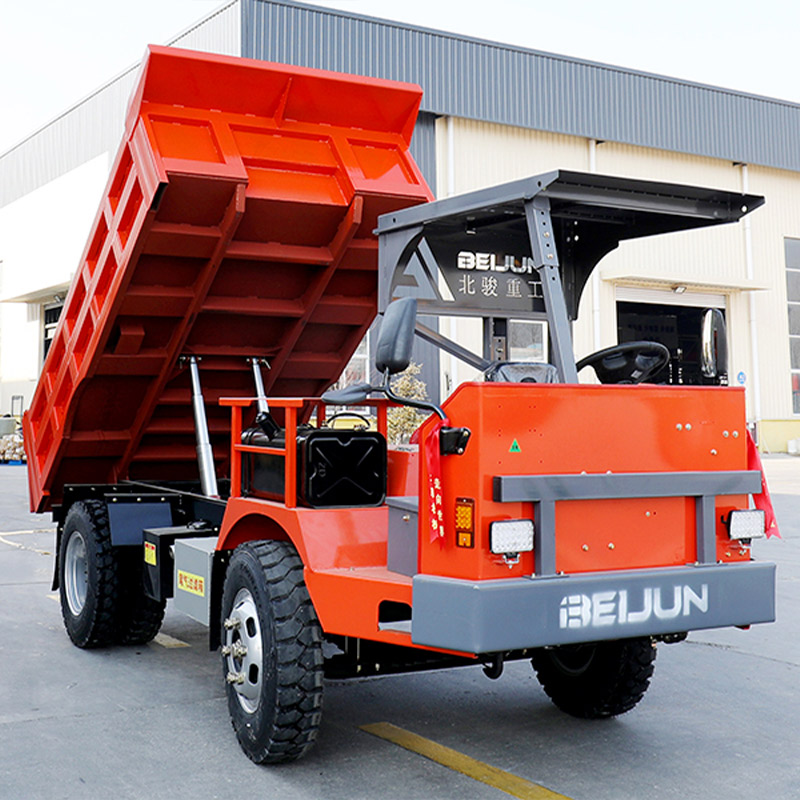

Small Underground Mining Truck

Powerful Performance: Strong engine with high torque, excellent gradeability, and superior starting ability, easily handling complex underground conditions.

Enhanced Safety: Equipped with anti-slip tires, waterproof electrical components, and improved lighting for high safety in challenging underground environments.

Compact and Agile Design: Small turning radius, specialized cargo compartment, and suspension system provide excellent maneuverability in narrow tunnels and ramps.

High Load Capacity and Durability: Designed to mining vehicle standards with a load capacity 1.5 times that of regular road vehicles, ensuring long-lasting durability in harsh underground conditions.

Contact Now

Product Details

The Beijun Small Underground Mining Truck is specifically designed for efficient and reliable underground transportation. Powered by a robust engine, it features a fully hydraulic steering system, four-wheel wet braking, and superior maneuverability in confined spaces. The truck offers excellent performance, enhanced safety features, and high durability, making it an ideal solution for mining companies working in narrow, low-height tunnels and rough underground terrain. With a high load capacity and long service life, it ensures reliable and cost-effective transportation in challenging mining environments.

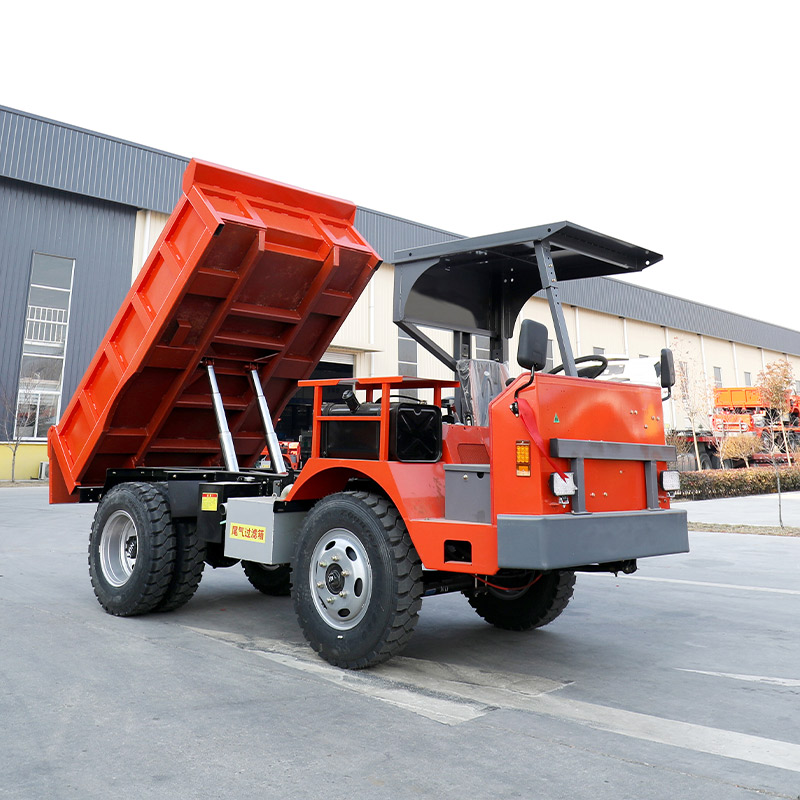

Small Underground Mining Truck

DETAIL PRESENTATION

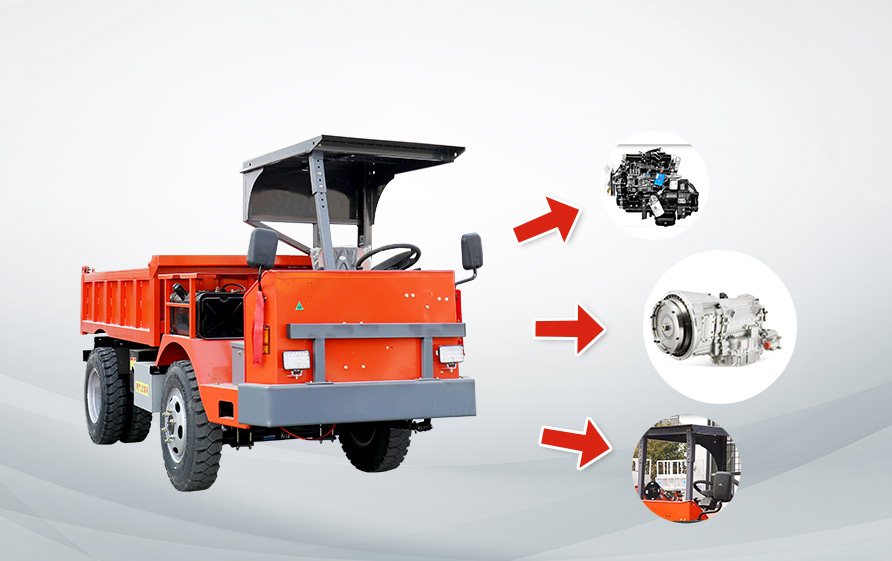

PRODUCT SELLING POINTS

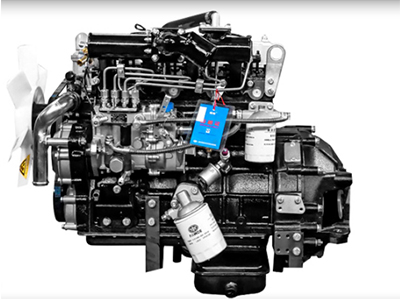

	01 ENGINE Changchai 490 engine, strong power, good stability

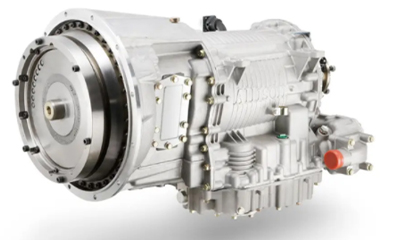

02 TRANSMISSION Optimized design of transmission ratio, stable performance, high efficiency, light gear shift, fuel-saving gear design precision, long service time

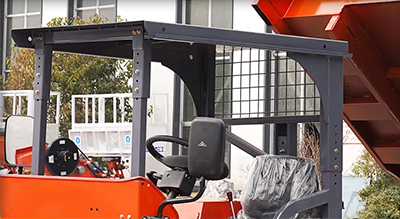

	03 MINE ROOF REINFORCEMENT Single closed cab, double closed cab

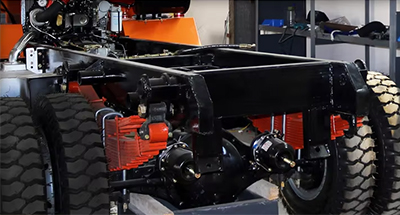

04 FRAME The frame USES 70 manganese material (crane big arm material) custom square tube production use time is long

PRODUCT SPECIFICATION

Item	Parameter
Model	UQ-3.5
Engine model	CHANGCHAI 490
Engine power	63HP
Transmission model	NANJING130
Transmission gear	5+1 gear
Drive mode	42/44
Front Axle Model	1069
Rear Axle Model	1069
Tire	700x16 Line Tire
Bottom Spring Plate	Front 10 , Rear 10+6
Dimension of Bottom Spring Plate	70mm*10mm
Bucket Size	2400mm1500mm450mm
Thickness of Bucket Steel Plate	bottom 8mm side 6mm

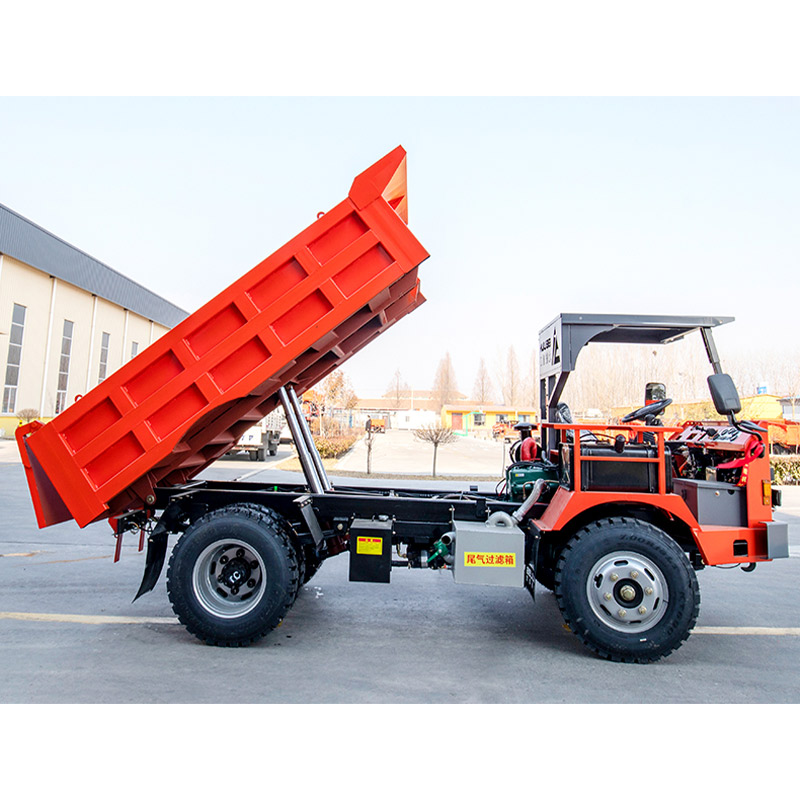

Unloading Type	Hydraulic Double Dumper
Steering Type	Hydraulic power steering
Braking Type	Air Brake
Driving Position	Left Hand Drive
Cooling system	Water Cooling System
Loading Capacity	3.5 ton

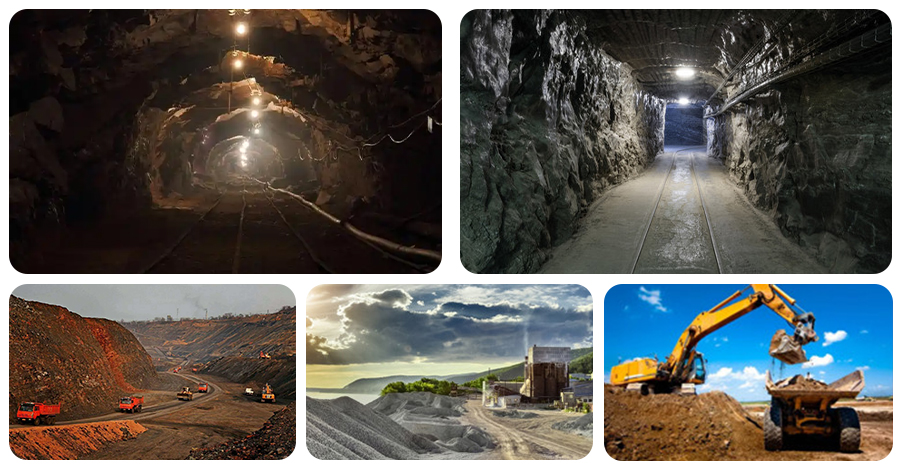

PRODUCT APPLICATIONS

Small Underground Mining Truck

ABOUT US

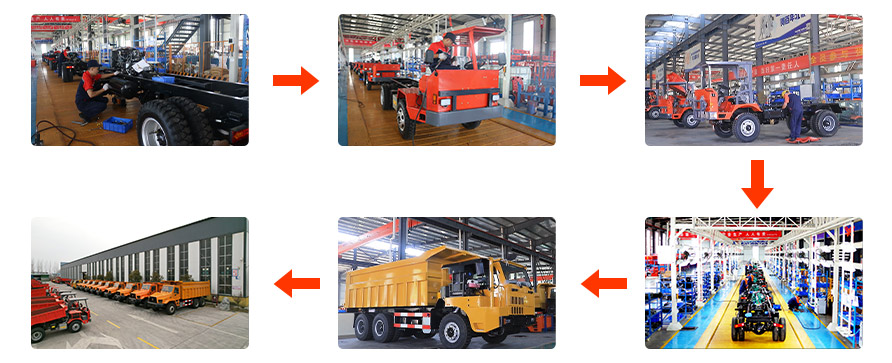

Shandong Beijun Machinery Industry Co., Ltd. is a prominent enterprise dedicated to the research, development, and manufacturing of mining and construction machinery. Located in Jining, Shandong, the company spans 100 acres and operates a 20,000-square-meter production facility. With advanced manufacturing technology, Beijun has an impressive annual output of 4,000 mining trucks, 500 fully hydraulic crawler trucks, and 3,000 aerial work platform trucks.

Beijun has earned ISO9001 quality management system certification, EU CE certification, and mining safety production qualifications. The company utilizes a comprehensive ERP system, integrating advanced IT solutions to enhance resource planning and management. Beijun focuses on producing mining transport vehicles, crawler transport vehicles, and aerial work platform trucks.

The company is supported by a strong technical team, robust quality assurance processes, state-of-the-art testing facilities, and efficient manufacturing methods, enabling it to consistently deliver high-quality products. Beijun employs over 200 professionals, including 30 technicians, 40 marketing managers, and 15 professors with expertise in mechanical design.

With a commitment to innovation and independent R&D, Beijun adheres to its core values of "Quality First, Customer First." Its products have gained strong recognition in markets across Africa, South America, and Southeast Asia, cementing Beijun's reputation as a reliable and forward-thinking industry leader.
