LHD: "Intelligent Workhorses" of Underground Mining Unveiling the Mystery of Load-Haul-Dump Machines

In the wave of the global mining industry’s efficiency-driven and intelligent transformation, LHD (Load-Haul-Dump Machine) has become a core equipment in underground mining. This specialized vehicle, integrating loading, hauling, and unloading functions, not only revolutionizes traditional mining processes but also drives the industry toward green and unmanned development through technological iterations.

I. Core Functions and Technological Breakthroughs of LHD

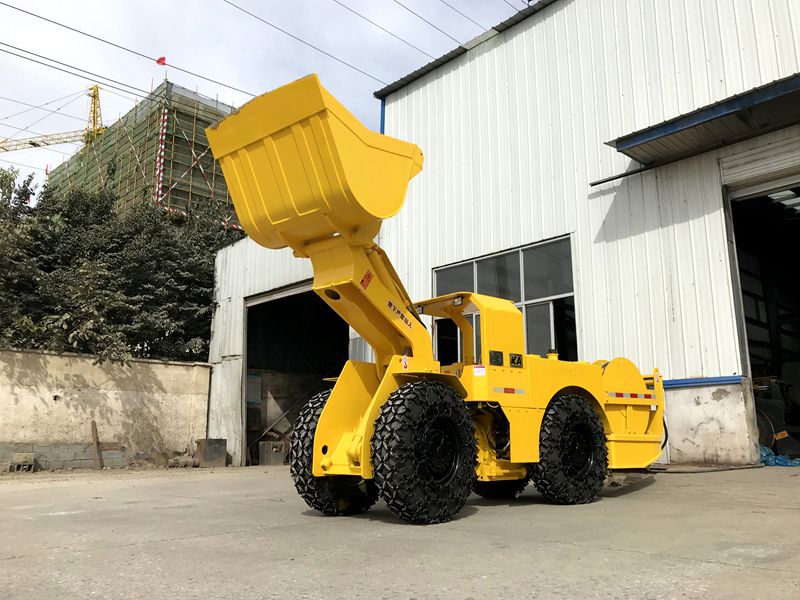

LHD, short for "Load-Haul-Dump Machine," is designed to provide a one-stop material handling solution for underground mines. Equipped with a front bucket to load crushed ore, it transports materials through an enclosed carriage to designated locations for unloading, enabling full-process operations in narrow tunnels and significantly improving efficiency.

In recent years, LHD technology has made breakthroughs in three key areas:

Innovation in power systems: Electrification has become the mainstream trend. After introducing electric LHDs, Henan Tieshan Mine reduced underground exhaust pollution by 90%, cut energy costs by 40%, and saved over 3.6 million yuan in annual operating expenses. As a leading enterprise in the industry, Shandong Beijun Machinery Industry Co., Ltd. has achieved large-scale application of its new energy LHDs in mining areas such as Xinjiang and Tibet. Leveraging advanced computer-controlled integrated systems, it has truly realized intelligent and automated production processes. The company’s electric LHDs, optimized through enhanced battery management systems, have a 30% longer range than traditional diesel models, and are paired with intelligent charging solutions, significantly reducing mine operating costs.

Intelligent upgrading: Technologies such as 5G remote control, AI visual recognition, and autonomous path planning have been widely implemented. Shandong Beijun’s LHDs, empowered by these intelligent technologies, not only operate efficiently in domestic mines but have also been exported to 37 countries and regions, covering emerging markets in Southeast Asia and Africa. With localized service networks and cost-effectiveness, the company is gradually breaking the monopoly of international giants in the high-end LHD market.

Optimization in structural design: Modular design has become key to enhancing equipment adaptability. Shandong Beijun’s LHD series also adopts modular design: the body uses automotive-grade rigid frames, and the chassis is equipped with high-strength cast axles, enabling flexible adaptation to different working conditions through module combinations. In geologically complex operating environments such as Hongta District Bauxite Mine and Suning County Coal Mine, their stability and operational efficiency are particularly prominent, helping to increase mine resource recovery rates by 15%.

II. Application Scenarios and Industry Value

The core advantages of LHDs lie in their "integration" and "flexibility," making them irreplaceable in various scenarios:

Narrow ore body mining: In 2-3 meter-wide tunnels, LHDs can maneuver flexibly to perform operations that traditional equipment cannot. Shandong Beijun’s mini LHDs (1.8-ton class) are not only suitable for underground mines but also stand out in old residential area renovations. Their compact bodies and high passability adapt to complex urban road conditions, filling market gaps.

Efficient deep-well transportation: In wells deeper than -400 meters, LHDs transport ore directly to crushing stations via ramps, reducing intermediate transfer links, with a single unit capable of transporting up to 2,000 tons per day. Shandong Beijun’s super-large LHDs (with a load capacity exceeding 100 tons) have been put into use in domestic deep mines. Paired with intelligent scheduling systems, they increase transportation efficiency by 25% and reduce overall costs by over 30%.

Green mine construction: Electric LHDs, combined with photovoltaic power supply systems, can achieve "zero carbon emissions" underground. Shandong Beijun’s electric LHD series has passed CE certification and ISO14000 environmental management system certification. In projects such as Qingdao Metro and Shijiazhuang Metro, their low-noise and zero-emission features have significantly improved construction environments, setting a benchmark for green construction.

Economically, although LHDs require high initial investment (large-scale equipment costs over 10 million yuan), their whole-life cycle cost advantages are significant. Taking Tieshan Mine as an example, electric LHDs require 1/3 less maintenance than diesel models and eliminate the need for ventilation system renovations, reducing overall costs by over 30%. Shandong Beijun’s LHDs, certified with four mining safety standards (UQ-5, UQ-8, UQ-12, UQ-25) and quality management system certification, hold a 40% share in the domestic market, becoming a core force in the mining equipment sector.

III. Market Landscape and Future Trends

The global LHD market is undergoing profound changes, with Shandong Beijun emerging as a key player through technological accumulation and market layout. Its LHD models cover full tonnages, forming an integrated industrial chain from R&D and production to sales, with an annual output of 5,000 LHDs. It has not only consolidated its domestic market position but also built brand influence in emerging markets such as Southeast Asia and Africa through exports to 37 countries and regions.

In the next five years, the LHD industry will witness three major transformations, and Shandong Beijun has already taken proactive steps:

Popularization of unmanned operation: Semi-autonomous LHDs have been deployed on a large scale in some international mines, and the global unmanned operation rate is expected to exceed 50% by 2030. Shandong Beijun is collaborating with research institutions to develop autonomous LHDs, planning to launch the first prototype with obstacle avoidance and path planning functions by 2026.

Deepened scenario segmentation: Mini and super-large LHDs will dominate their respective market segments. Shandong Beijun has launched customized LHD solutions for different ore types, such as explosion-proof electric LHDs for high-gas mines and enclosed-cab LHDs for high-temperature and high-dust environments.

Collaborative innovation in the industrial chain: Localization of core components is key to cost reduction and efficiency improvement. By integrating upstream and downstream resources, Shandong Beijun has achieved independent R&D of key components such as electric drive systems and intelligent control systems, with over 20 patents filed, driving a 19% reduction in overall machine costs and further consolidating its technological edge.

IV. Expert Opinions and Selection Recommendations

"The intelligentization and greening of LHDs essentially represent a restructuring of mining productivity," noted experts from the China Mining Association, emphasizing that enterprises should consider three key dimensions when selecting equipment:

Operating environment: Electric LHDs are preferred for deep wells and high-gas mines; enclosed cabs and air purification systems are recommended for high-temperature and high-dust environments. Shandong Beijun’s explosion-proof electric LHDs have passed national mining product safety certification, performing stably in complex geological conditions.

Economic evaluation: Electric LHDs offer better cost advantages for short-distance operations (<500 meters); for long-distance transportation, a comprehensive cost comparison between diesel models and electric + battery swap station solutions is necessary. Shandong Beijun provides whole-life cycle cost analysis services to help customers optimize LHD configurations and reduce total ownership costs.

Technical roadmap: It is advisable to prioritize LHDs supporting OTA upgrades to adapt to future iterations of intelligent systems. Shandong Beijun’s intelligent LHD platform has realized remote firmware upgrades, enabling real-time delivery of new functions to ensure optimal equipment performance.

From North American gold mines to African copper mines, LHDs are reshaping the mining ecosystem as "intelligent workhorses." With the deep integration of technologies such as 5G and hydrogen energy, this equipment will not only serve as mining tools but also become core carriers of mine digital transformation. Through technological innovation and market cultivation, Shandong Beijun is emerging as a key driver of this transformation — the innovative boundaries of its LHDs continue to push beyond the limits of traditional mining.

Industry Insight: The development of LHDs reflects the dual logic of the global mining industry: addressing challenges such as declining resource grades and increasing mining depth, while meeting green transformation requirements under the "dual carbon" goals. In the future, enterprises like Shandong Beijun, with core technological strength and integrated industrial chain capabilities, will take the lead in this industry transformation.
