Low Price Wheel Mucking Loader Sale

Exceptional Loading Capacity: Different models and specs offer varying capabilities, handling debris volumes effortlessly.

Agile Operation: With remarkable maneuverability, it works efficiently in tight spaces.

Sturdy Build: Built for harsh conditions, it uses wear - resistant materials and advanced tech for longevity.

Top - notch Safety: Fitted with multiple safeguards, it ensures operator safety at all times.

Contact Now

Product Details

The high - efficiency wheel mucking loader is tailor - made for tunnel construction and debris clearance, delivering robust functionality in restricted areas. Outfitted with a state - of - the - art track mechanism, this equipment guarantees outstanding mobility and steadiness, even in difficult subterranean settings. It combines excavation, loading, and transportation operations, ensuring peak efficiency while cutting down on operational expenses.

This loader features a sophisticated electro - hydraulic control system, offering dual power alternatives: electric and diesel. For underground work, electric power is the preferred option, as it curbs emissions and boosts safety. Thanks to its compact form and durable construction, the loader is a prime selection for tunneling projects, providing consistent performance and optimizing productivity.

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	-	BJ-70T1-C
Overall Dimensions (Length × Width × Height)	mm	5500 × 1500 × 1500
Loading Capacity	m³/h	≤ 70
Total Machine Mass	kg	3100
Excavation Width	mm	3000
Excavation Height	mm	2000
Excavation Depth	mm	≤ 550
Applicable Climbing Gradient	°	≤ 5 (Hard Ground)
Minimum Cross - section of Applicable Roadway	m	2.2 × 2.2
Digging Reach	mm	1600
Minimum Turning Radius	°	≤ 5
Dumping Height	mm	1500 (Can be Increased)
Dumping Distance	mm	1600 (Can be Extended)
Motor Power	kW	15
Traveling Speed	m/s	1.45 ± 5%
Maximum Dimension of Pass - through Material	mm	600 × 500
Track Width	mm	1250/1220
Wheelbase	mm	1550

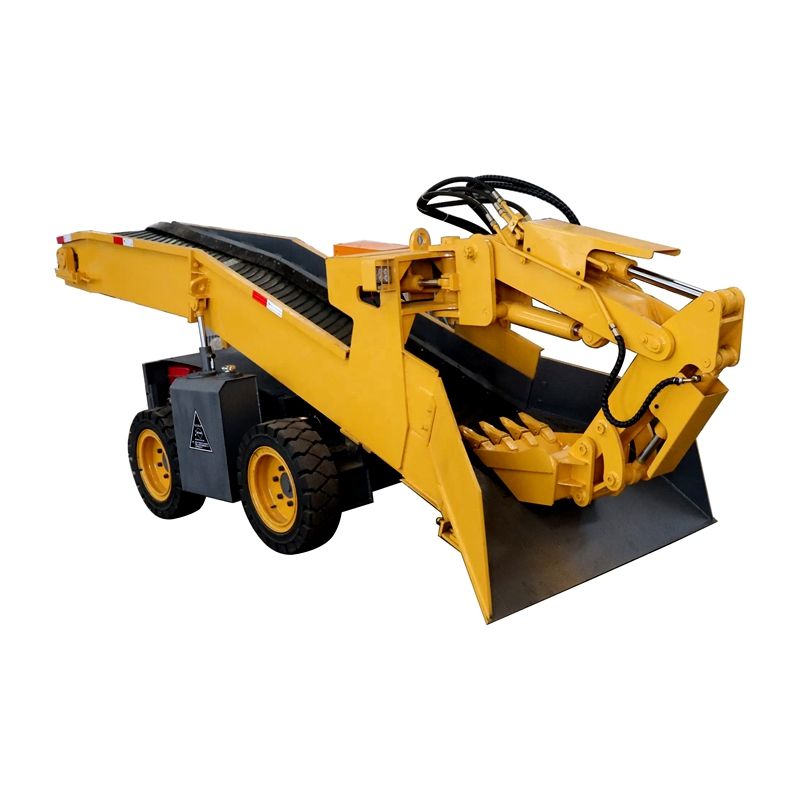

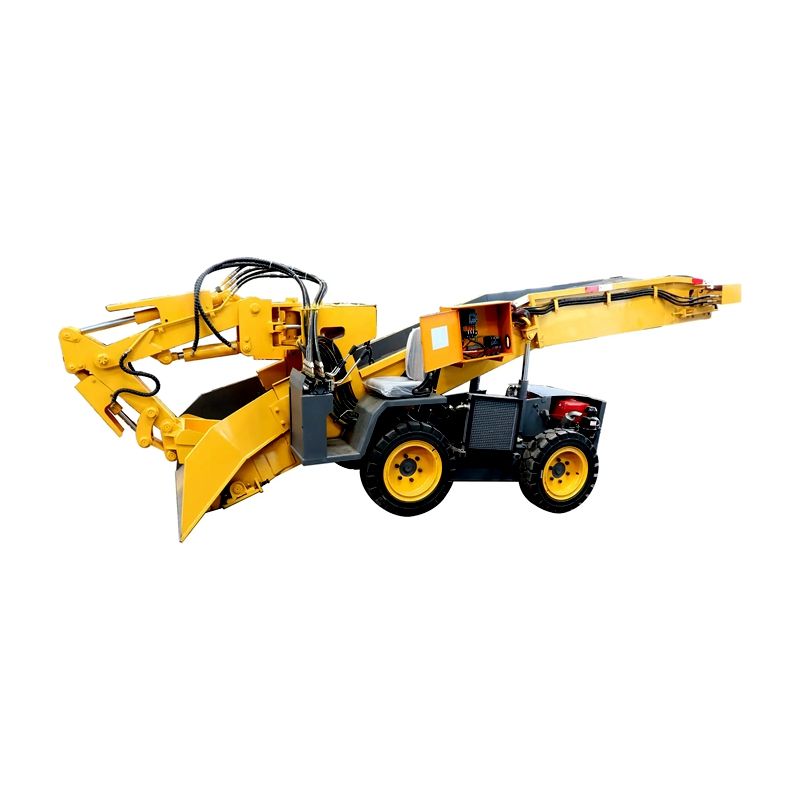

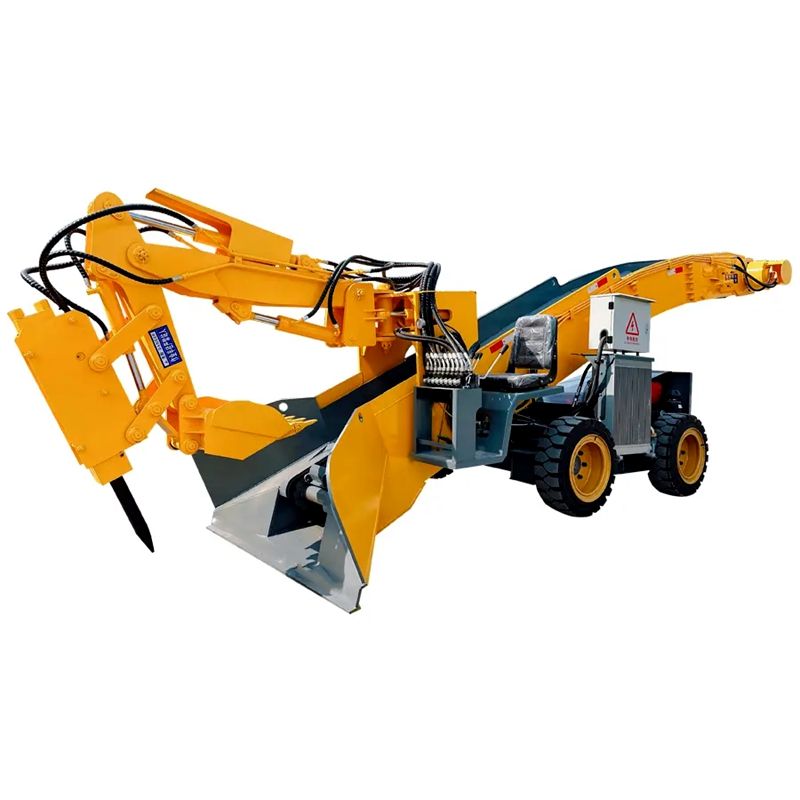

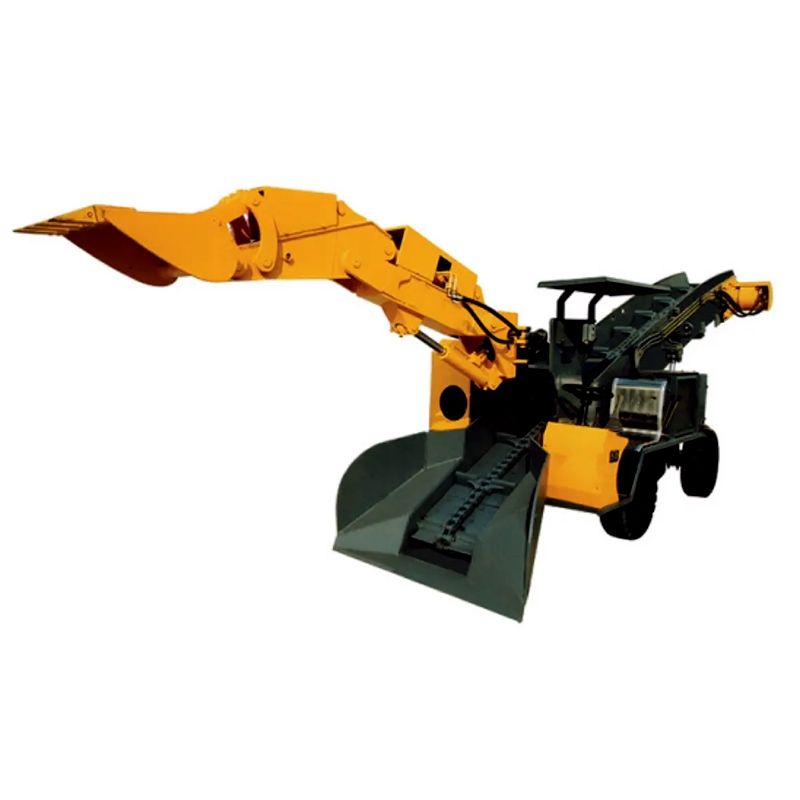

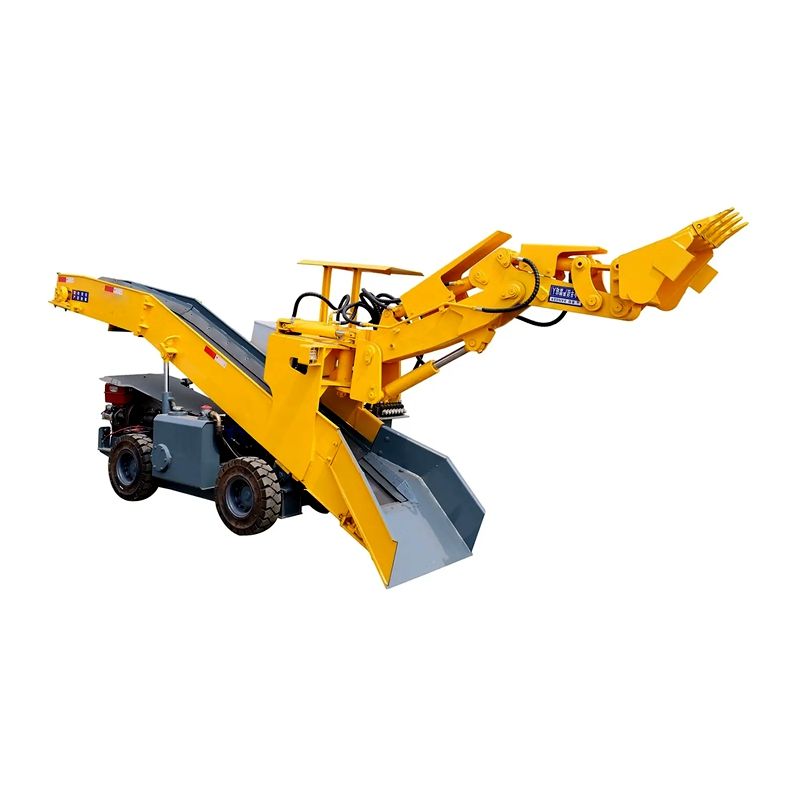

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a leading firm specializing in the research, innovation, and production of mining and construction machinery. Located in Jining, Shandong, the company sprawls across 100 acres of land and features a 20,000 - square - meter manufacturing facility. Leveraging advanced production techniques, Beijun is capable of an annual output of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has been accredited with the ISO9001 quality management system certification and has secured the EU CE mark. It adheres rigorously to mining safety production standards. The company has implemented an all - encompassing ERP system, integrating cutting - edge information technology solutions to enhance resource planning and management efficiency. Beijun primarily focuses on manufacturing mining transport vehicles, crawler hauling equipment, and aerial work platform trucks.

Backed by a proficient technical team, stringent quality control procedures, modern testing equipment, and efficient production methods, the company consistently delivers high - grade products. Beijun employs over 200 staff members, including 30 engineers, 40 sales personnel, and 15 mechanical engineering specialists.

Committed to innovation and independent R&D, Beijun steadfastly upholds its core principles of "Quality First, Customer - Oriented." Its product range has garnered extensive acclaim in the markets of Africa, South America, and Southeast Asia, thereby reinforcing Beijun's reputation as a trustworthy and innovative industry trailblazer.
