Premium Quality Wheel Mucking Loader Sale

Smooth Conveyance: Enables continuous material transport, shortening transfer time and accelerating project progress.

Remarkable Energy-saving: Optimizes energy consumption, reducing waste for long-term economic efficiency.

Stable Hydraulics: Adopts load-sensing hydraulic technology for steady, reliable operation without hidden risks.

Easy Maintenance: Semi-enclosed assembly design streamlines daily inspection and upkeep.

Contact Now

Product Details

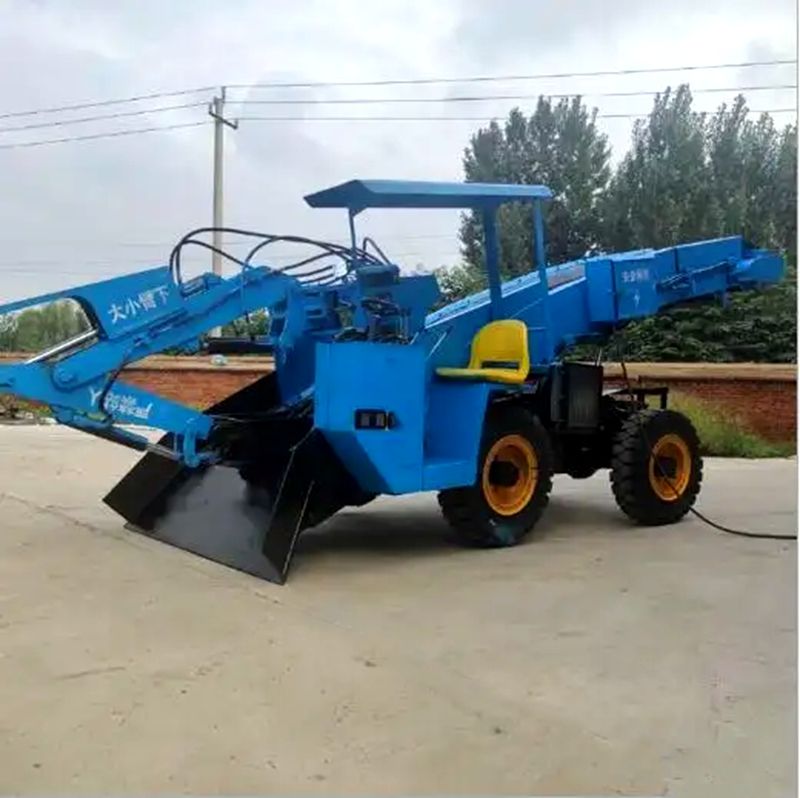

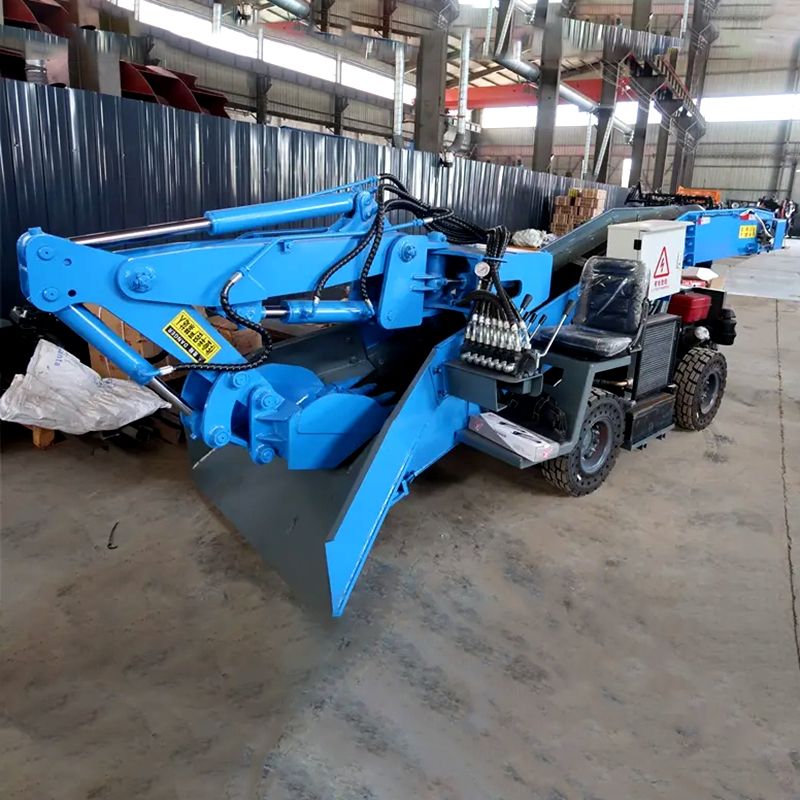

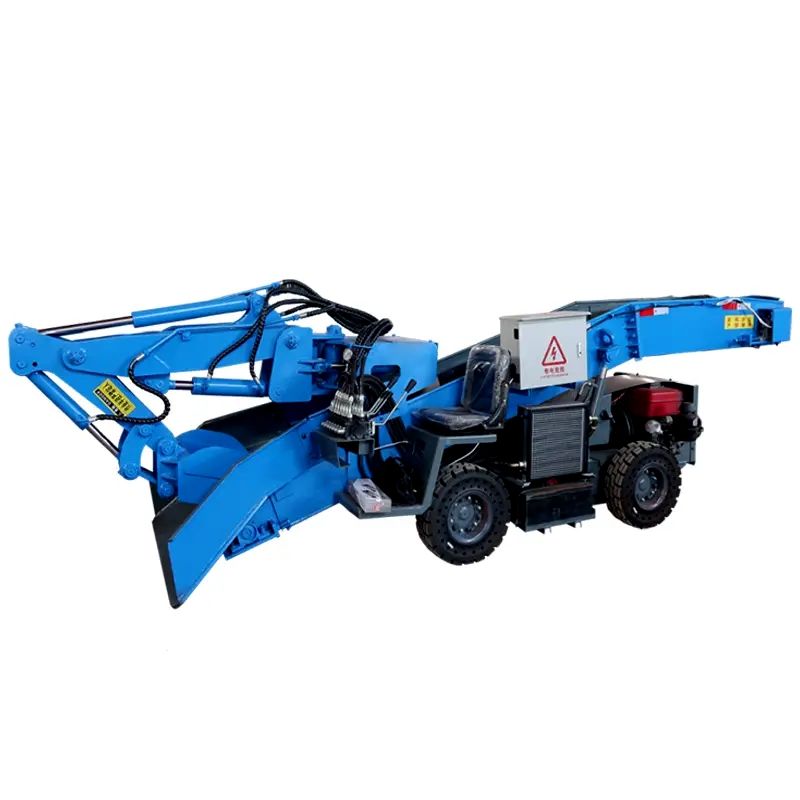

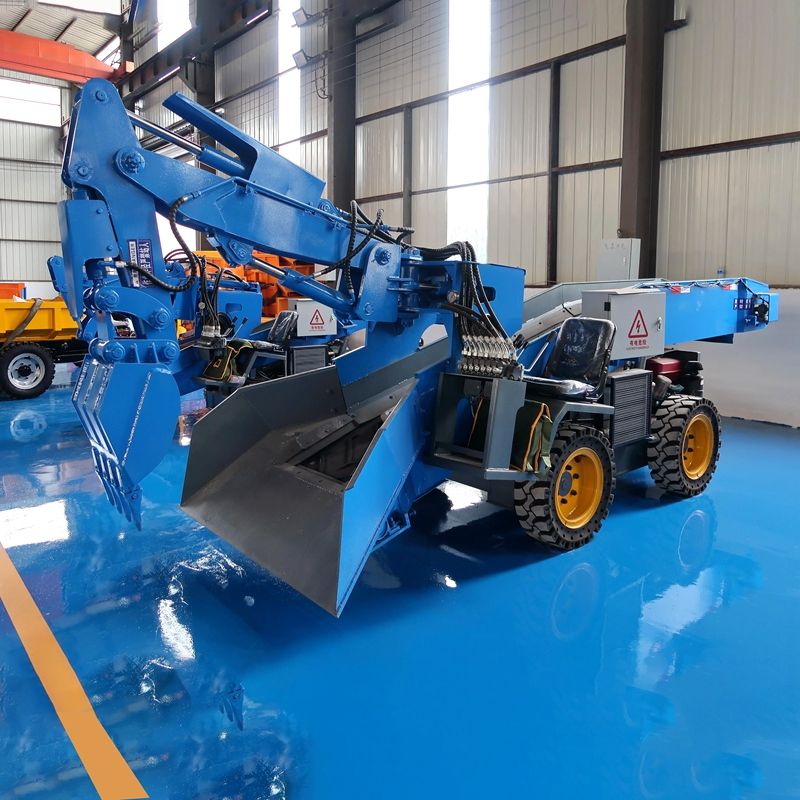

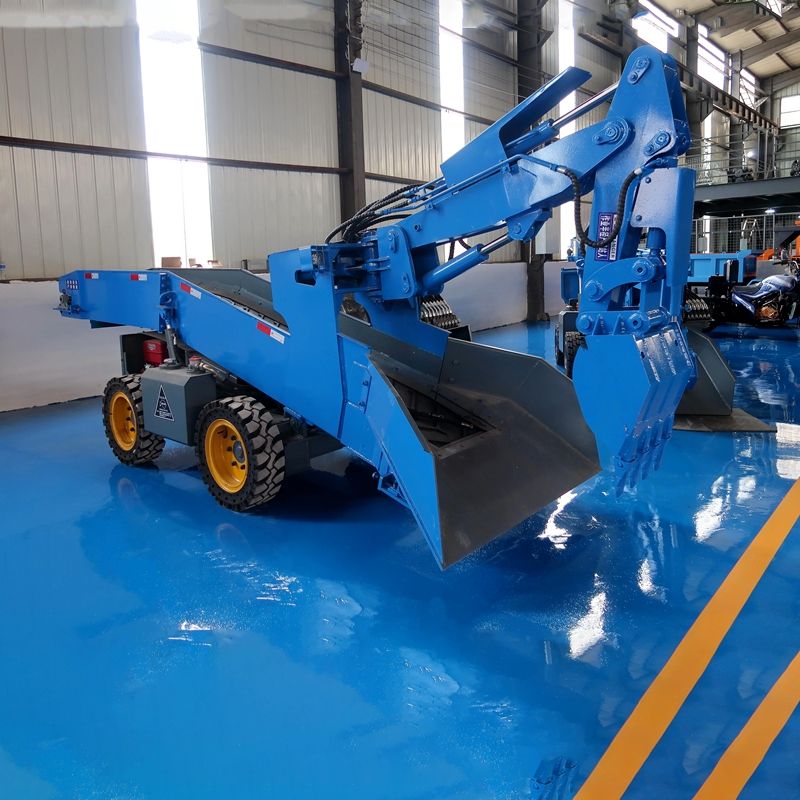

BJ - 50A wheeled mucking rock loader is a continuous - production high - efficiency ore - out equipment. It is mainly used for the excavation of mine rock roadways and semi - coal rock roadways. Additionally, it can be employed for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction. It can be used in combination with the hydraulic mine drilling trucks produced by our company, realizing the mechanization of mine excavation and significantly increasing the excavation speed. It is applicable to small - section and sloped areas.

Wheel Mucking Loader

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

Tunnel Mucking Loader

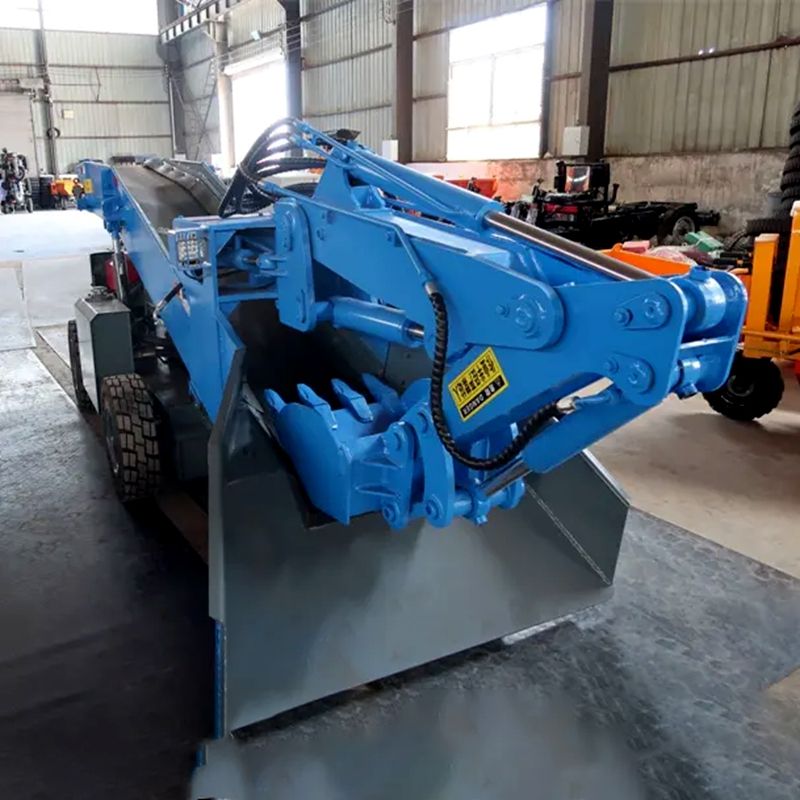

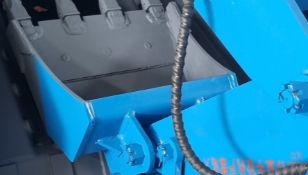

Excavator Bucket

By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

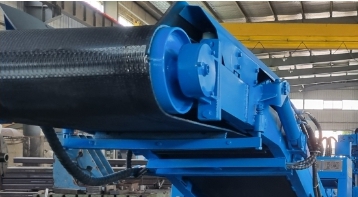

Conveying System

Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.

Tunnel Mucking Loader

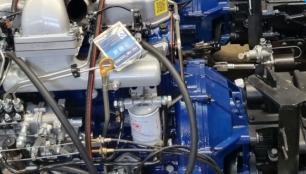

Core Engine

Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.

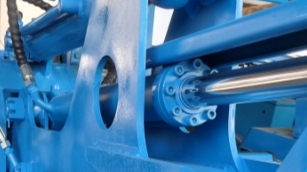

Hydraulic Ram

As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.

Wheel Mucking Loader

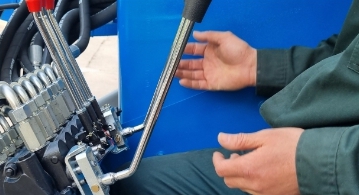

Simple Operation

Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.

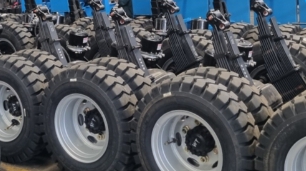

Chassis and Tyre

The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model(wheel type)	BJ-50A
Traveling Speed	2km
Ground Clearance	200mm
Wheel Tread	1380mm
Wheel Base	1500mm
Rated Working Pressure	16mpa
Big Arm Maximum Turning Angle	±73º
Total Motor Power	11+4kw
Maximum Material Dimension	650500500mm
Adaptive Tunnel Gradient	≤15º
Belt Speed	0.63m/s
Overall Dimensions	460013801600mm
Machine Weight	3100kg
Minimum Turning Radius	4m
Digging Width	2000mm
Digging Height	1700mm
Digging Depth	700mm
Digging Distance	1300mm
Dumping Height	1400-1700mm
Dumping Distance	1400mm
Grade ability	≤15º
Adaptive Tunnel Minimum Fracture	>1.6*1.8m

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. emerges as a leading - tier enterprise centered on the research, development, and fabrication of mining and construction machinery. Situated in Jining, Shandong, the firm occupies an area of 100 acres and possesses a 20,000 - square - meter manufacturing plant. Through the application of advanced - level production techniques, Beijun is able to achieve an annual output of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has acquired the ISO9001 quality management system certification and EU CE certification, and rigorously complies with mining safety production norms. The company deploys a comprehensive ERP system, incorporating advanced information technology solutions to improve resource planning and management effectiveness. Beijun's principal focus lies in manufacturing mining transport vehicles, crawler haulage vehicles, and aerial work platform trucks.

Supported by a proficient - skilled technical team, stringent quality control processes, contemporary testing facilities, and efficient production approaches, the company constantly offers high - quality products. Beijun has more than 200 employees, including 30 engineers, 40 sales representatives, and 15 mechanical engineering professors.

Dedicated to innovation and independent research and development, Beijun adheres to its core tenets of "Quality - Prioritized, Customer - Centric." Its product lineup has garnered widespread praise in the markets of Africa, South America, and Southeast Asia, fortifying Beijun's standing as a dependable and innovative industry pacesetter.
