Wheel Mucking Loader Factory Direct

Dependable Functionality：Superior craftsmanship guarantees consistent, long - lasting performance with minimal breakdowns.

Intuitive Operation：Straightforward controls simplify the operating process, making it accessible and convenient for users.

Comprehensive Efficiency：Combines excavation, loading, and transportation functions, enabling a smooth and uninterrupted workflow.

Terrain Dominance：Powerful climbing capabilities allow it to overcome tunnel inclines and effortlessly navigate through challenging terrains.

Contact Now

Product Details

This piece of machinery utilizes a full - fledged hydraulic transmission system, combining four vital functions: hydraulic locomotion, excavation and collection, material conveyance, and loading. Owing to its streamlined and compact structure, it can produce robust thrust and cover a wide mucking area. Its major operations are managed by pilot - controlled valves, ensuring an intuitive and smooth operation. This not only safeguards safety and comfort but also provides excellent maneuverability, remarkable climbing capacity, and a stable, vibration - free operation.

It is capable of loading rocks across the entire cross - section without any omissions, thereby eliminating the requirement for manual surface cleaning. This significantly boosts work productivity, cuts down on mining costs, and optimizes economic returns. With a material - unloading capacity of 50 - 60 cubic meters per hour, one unit can effectively replace the workload of over 30 workers. This reduction in the number of personnel not only enhances labor efficiency but also mitigates potential safety risks during operation.

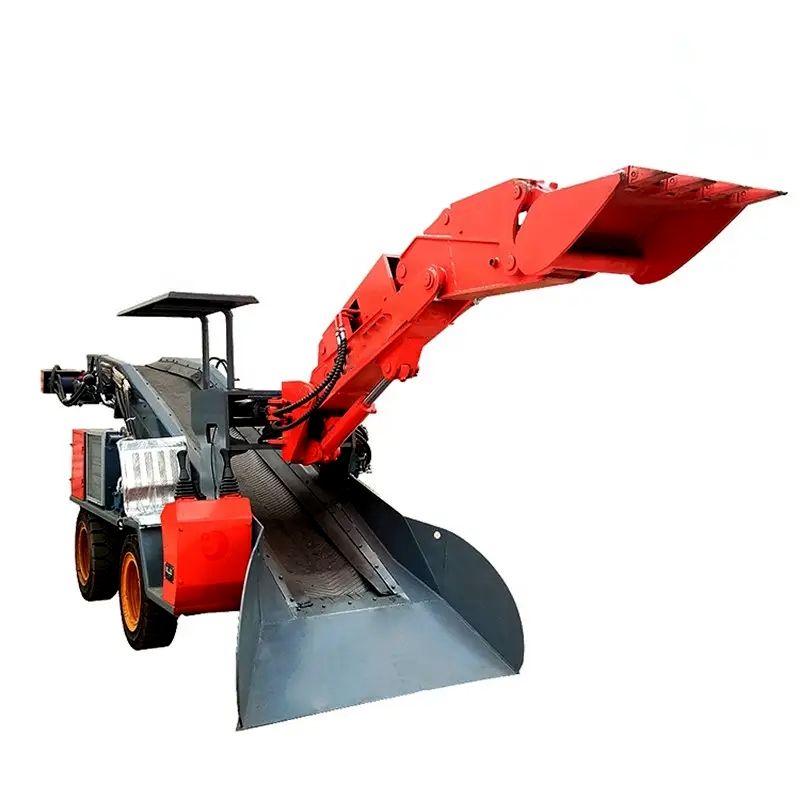

Wheel Mucking Loader

DETAIL PRESENTATION

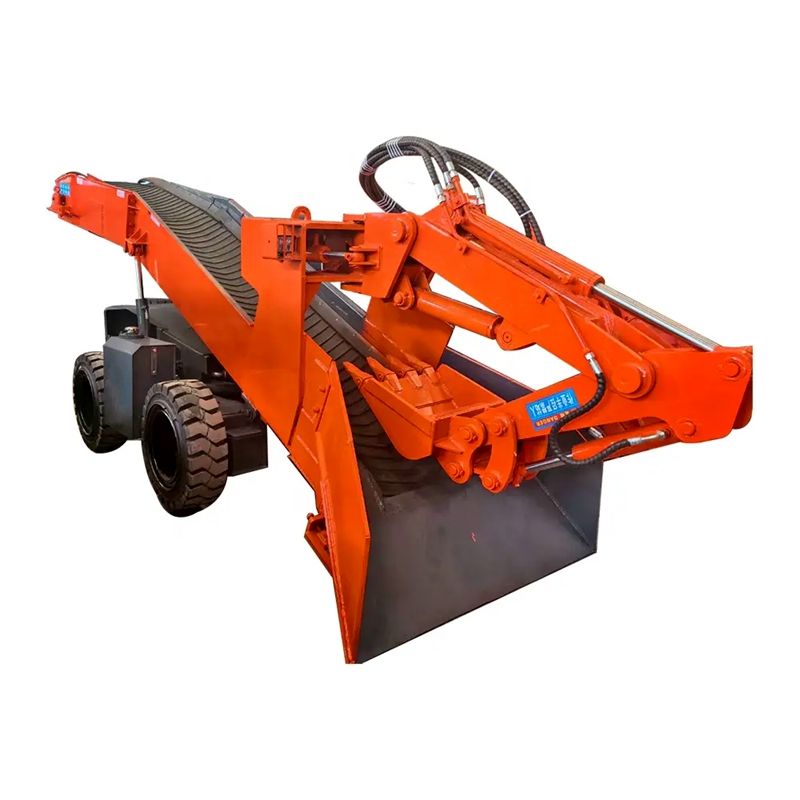

Wheel Mucking Loader

PRODUCT SELLING POINTS

	01 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.
02 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	03 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
04 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	05 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
06 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine

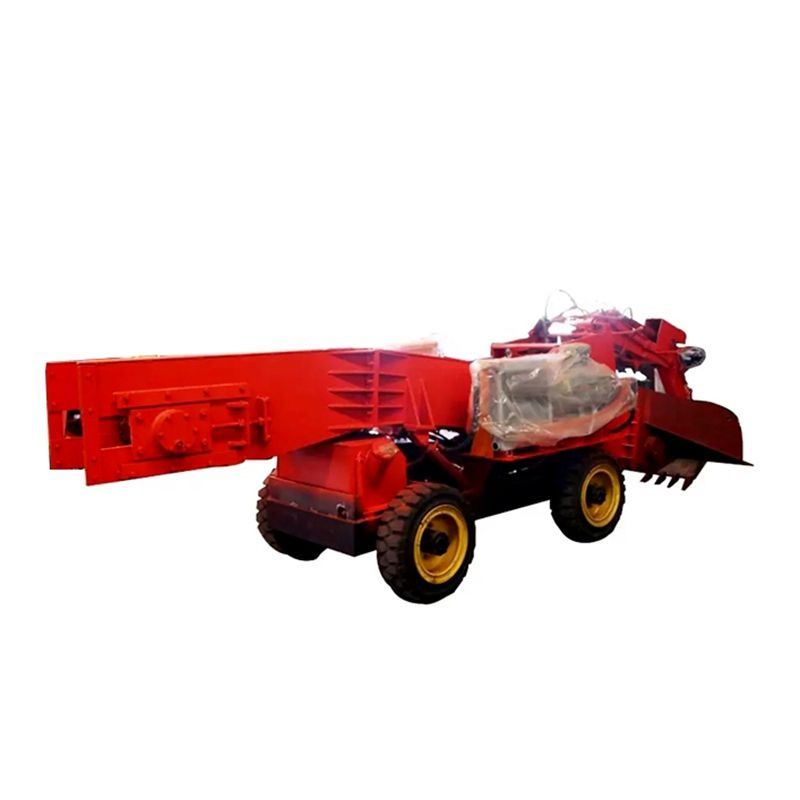

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ-80T-B
Loading Capacity (m³/h)	≤ 80
Total Machine Mass (kg)	4000
Wheelbase (A) (mm)	1600
Track Width (Front/Rear) (mm)	1460
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3500
Digging Reach (C) (mm)	≥ 1720
Excavation Depth (Z) (mm)	≤ 500
Excavation Height (H) (mm)	3300
Maximum Dumping Height (H) (mm)	1700 (Can be Raised)
Loading Length (D) (mm)	1700 (Can be Extended)
Gradability (°)	≤ 5
Diameter of Drill Rod (mm)	45
Impact Frequency (Hz)	700 - 1200
Maximum Dimension of Pass - through Material (mm)	≤ 800×600
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 80
Main Motor Power (Kw)	15
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	6500±50
Maximum Dimensions in Transport State (mm) - Width	1850±50
Maximum Dimensions in Transport State (mm) - Height	1900±50
Minimum Applicable Cross - section (㎡)	2.4×2.4

PRODUCT DISPLAY

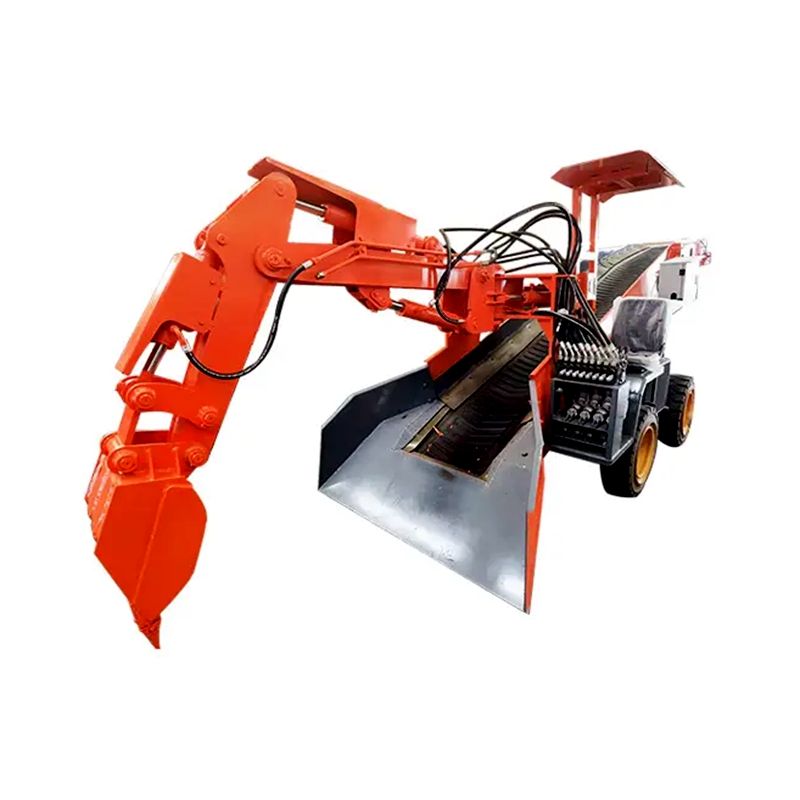

Wheel Mucking Loader

PRODUCT APPLICATIONS

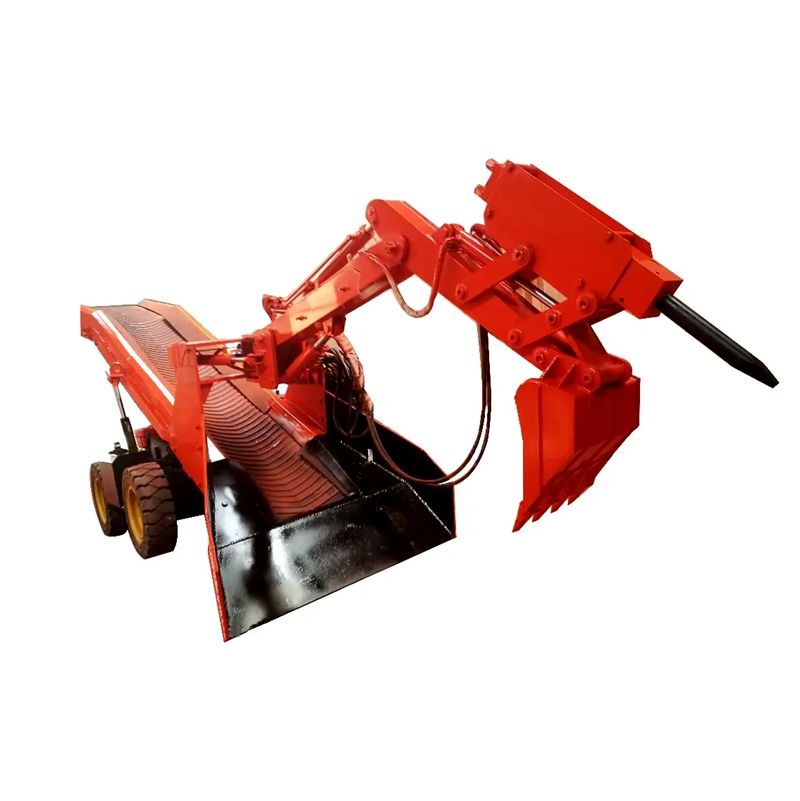

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. ranks among the leading enterprises, showing a firm dedication to the research, development, and fabrication of mining and construction machinery. Located in Jining, Shandong, the company occupies a large area of 100 acres, with a 20,000 - square - meter manufacturing facility. By utilizing the most advanced production technologies, Beijun is able to achieve an annual output of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has successfully obtained the ISO9001 quality management system accreditation and the EU CE certification. It strictly complies with mining safety and production regulations. The company has put in place a comprehensive ERP system, incorporating sophisticated information technology approaches to optimize resource planning and improve management efficiency. Beijun mainly specializes in manufacturing mining transport vehicles, crawler - type hauling machinery, and aerial work platform trucks.

Supported by a highly proficient technical crew, rigorous quality control procedures, contemporary testing apparatus, and effective production strategies, the company continuously supplies high - quality products. Beijun has over 200 employees, including 30 engineers, 40 sales staff, and 15 mechanical engineering specialists.

Committed to innovation and independent research and development, Beijun steadfastly adheres to its core tenets of "Quality First, Customer - Oriented." Its product range has received extensive praise in the African, South American, and Southeast Asian markets, further strengthening Beijun’s position as a trustworthy and innovative pacesetter in the industry.

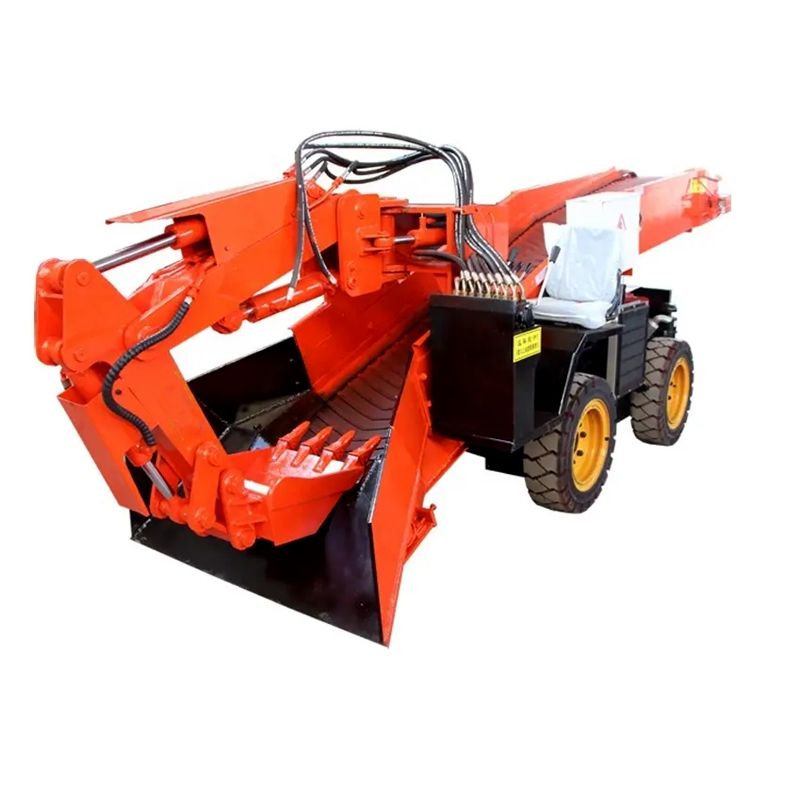

Wheel Mucking Loader
