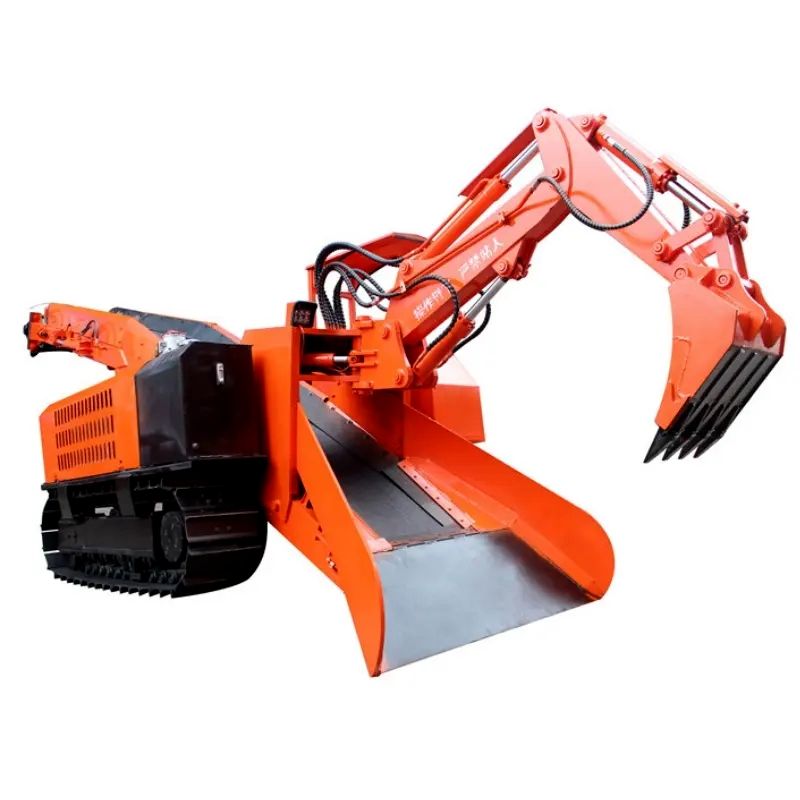

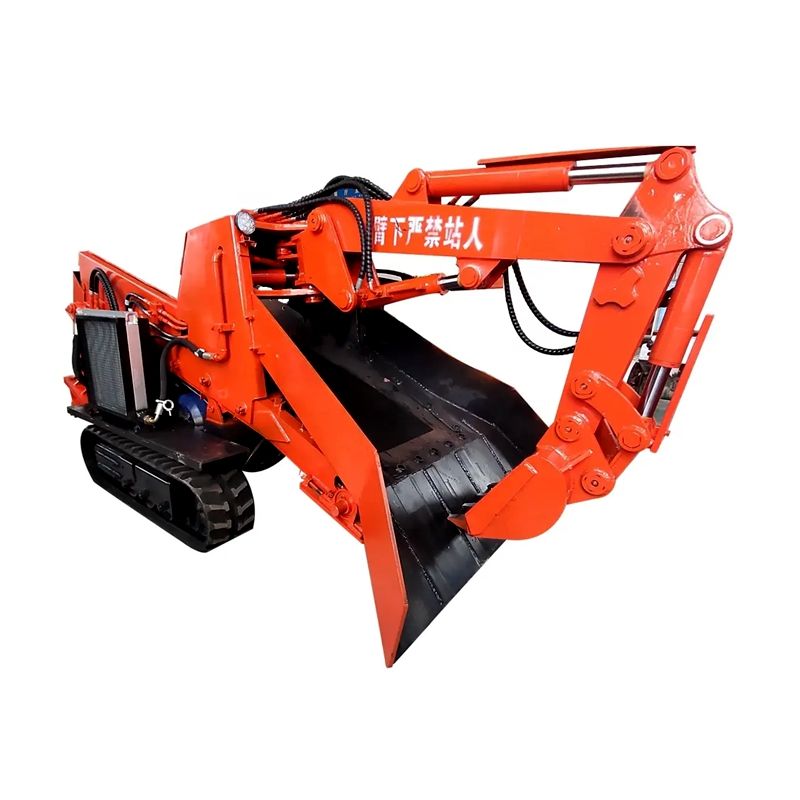

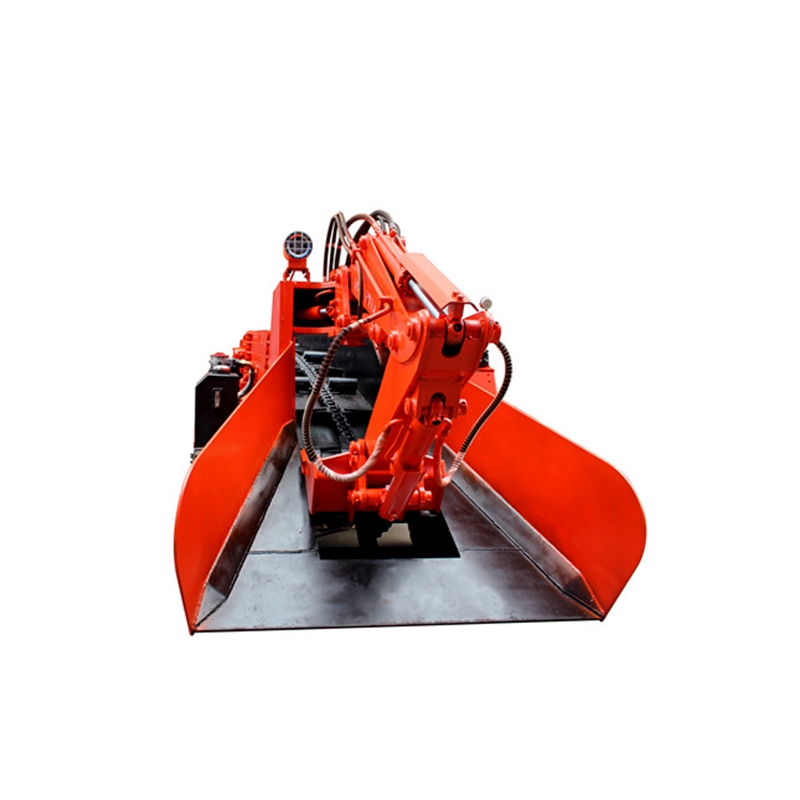

Best Crawler Type Mucking Loader With Belt Sell

Productive Digging and Grabbing: The high - powered excavation mechanism allows for rapid processing of materials, with an excavation span extending to several meters.

Durable Crawler System: The enclosed, lubricated crawler, which is simple to adjust the tension of, exhibits excellent wear resistance and offers an extended service life.

Reliable Sustained Operation: Thanks to smooth power transfer and seamless movement transitions, it guarantees stable, long - term performance to keep construction projects on track.

Agile Maneuvering: Boasting a minimal turning radius, it can effortlessly execute turns even in constricted areas.

Contact Now

Product Details

The mucking loader, also known as an excavating loader, combines several key functions such as excavation, transportation, loading, and locomotion. Due to its superior operational efficiency, remarkable ability to adapt to confined spaces, and minimal air pollution generated within tunnel environments, it has emerged as indispensable machinery in tunnel construction projects.

Equipped with an electro - hydraulic control system, it encompasses five primary functions: hydraulic - powered movement, mining material collection, conveying, loading, and floor debris removal. Our mucking loader is designed with a dual - drive system, providing both electric - powered and diesel - powered options. For operations inside mines, the electric - powered version is recommended, as it is more eco - friendly and ensures a higher level of safety. When used outside mines, the large - volume hydraulic oil tank enables continuous operation over extended periods.

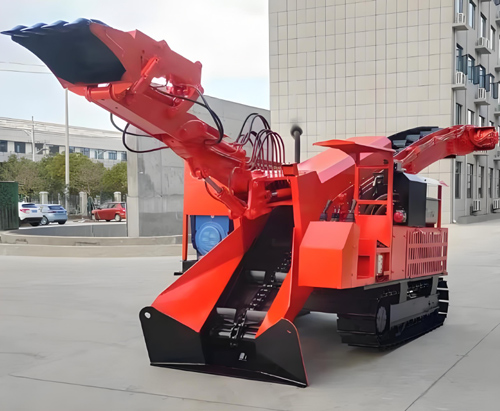

Tunnel Mucking Loader

DETAIL PRESENTATION

Tunnel Mucking Loader

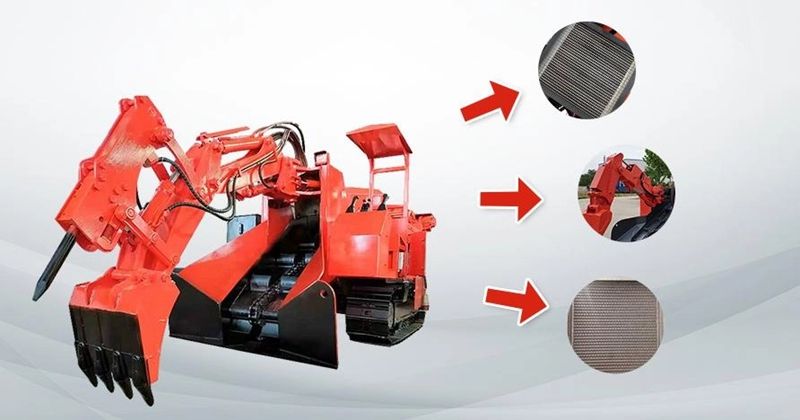

PRODUCT SELLING POINTS

Engineering big arm

Powerful and flexible operation，Internal reinforcement is not easy to crack

Radiator

Efficient heat dissipation, low noise, small space and easy maintenance

Transport mode

Divided into belt conveyor and Scraper conveyer durable

Attachment

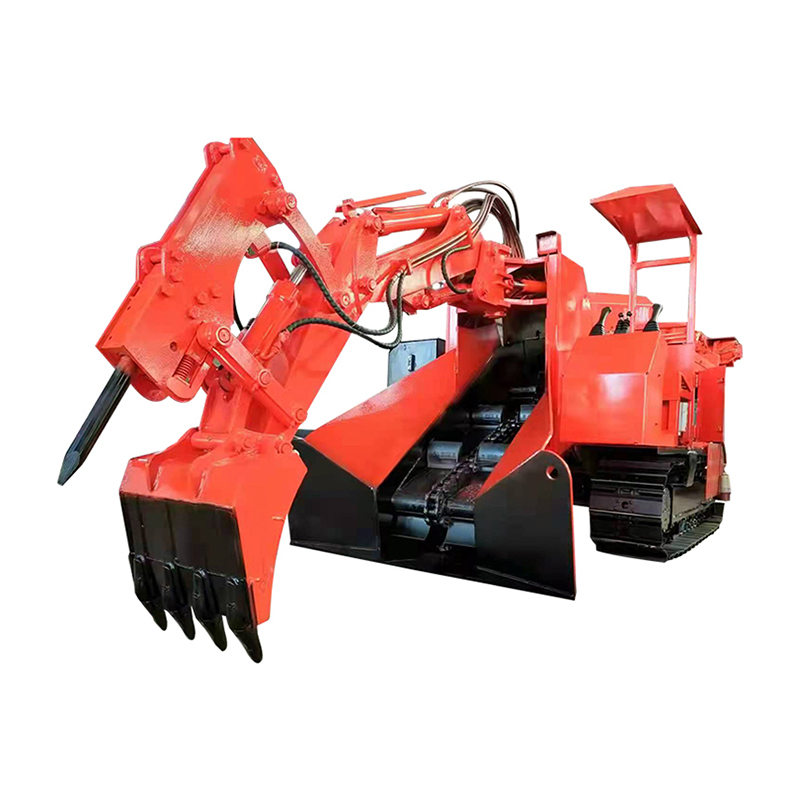

Tunnel Mucking Loader

We do handle special orders. We offer customization for logo, colors and graphics

PRODUCT SPECIFICATION

Model	BJ-80-B
Loading Capacity (m³/h)	≤80
Total Machine Mass (kg)	6200
Minimum Turning Radius (m)	≤7
Minimum Ground Clearance (mm)	≥300
Excavation Width (mm)	≤4100
Excavation Depth (mm)	≤550
Excavation Height (mm)	≤2800
Digging Distance (from Bucket Lip) (mm)	≥640
Dumping Height (mm)	≥1700, customizable
Dumping Distance (mm)	≥2100, customizable
Adaptable Slope Gradient (°)	≤12
Belt Width (mm)	600
Belt Speed (m/s)	0.8
Main Motor Power (Kw)	30 (Dual 15)
Traveling Speed (m/s)	1.45
Crawler Ground Contact Pressure (Mpa)	≤0.1
Crawler Ground - Contact Dimension (mm)	2500
Crawler Tread Dimension (mm)	1800
Rated Working Pressure (Mpa)	25
Safety Valve Opening Pressure (Mpa)	26
Breaker Bit Diameter (mm)	53
Breaker Working Flow (L/min)	20 - 40
Breaker Impact Frequency (bmp)	700 - 1200
Electrical Insulation (Three - Phase) (MΩ)	>1.5
Electrical Insulation (Phase - to - Phase) (MΩ)	>1.5
Overall Dimensions (Length) (mm)	6750±50
Overall Dimensions (Width) (mm)	1820±50
Overall Dimensions (Height) (mm)	2060±50
Applicable Cross - Section (m²)	2.4×2.4

PRODUCT APPLICATIONS

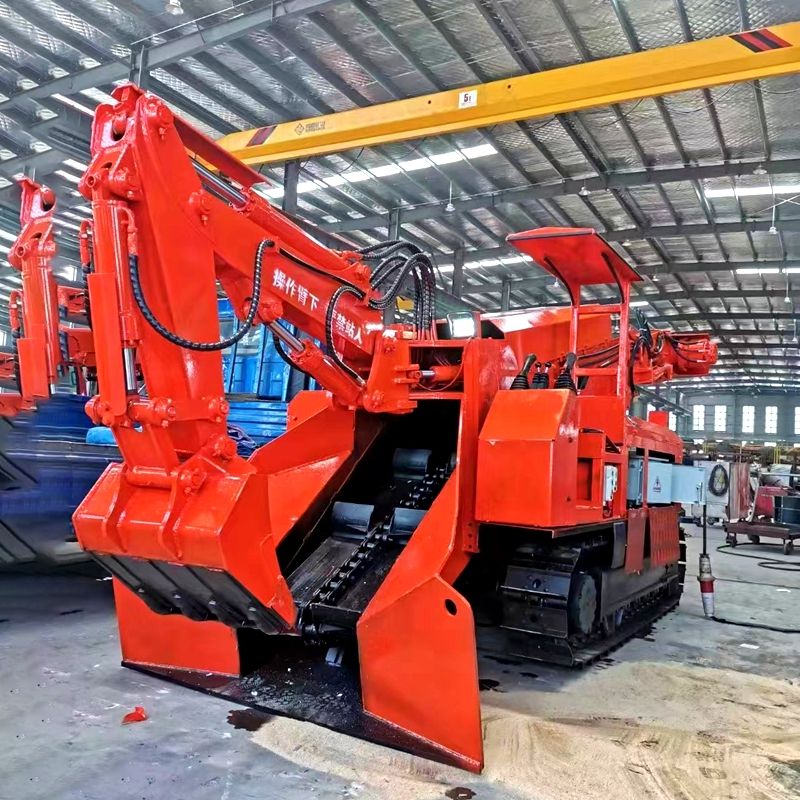

Tunnel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. distinguishes itself as a premier enterprise deeply committed to the research, development, and production of mining and construction machinery. Situated in Jining, Shandong Province, the company sprawls across an area of 100 acres, featuring a 20,000 - square - meter manufacturing plant. Leveraging advanced production techniques, Beijun achieves an annual output of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has been accredited with the ISO9001 quality management system certification and EU CE certification, and strictly adheres to mining safety and production norms. The company deploys an all - encompassing ERP system, integrating cutting - edge information technology solutions to optimize resource planning and management effectiveness. Specializing in the production of mining transport vehicles, crawler - type hauling equipment, and aerial work platform trucks, Beijun focuses its efforts on these key product lines.

Supported by a highly proficient technical team, stringent quality control processes, contemporary testing facilities, and efficient production strategies, the company consistently delivers products of the highest quality. With a workforce of over 200 employees, including 30 engineers, 40 sales professionals, and 15 mechanical engineering experts, Beijun has a robust human resource base.

Devoted to innovation and independent research and development, Beijun firmly upholds its core principles of "Quality - Centric, Customer - Focused." Its product portfolio has garnered widespread praise in the African, South American, and Southeast Asian markets, further reinforcing Beijun's standing as a trustworthy and innovative leader in the industry.

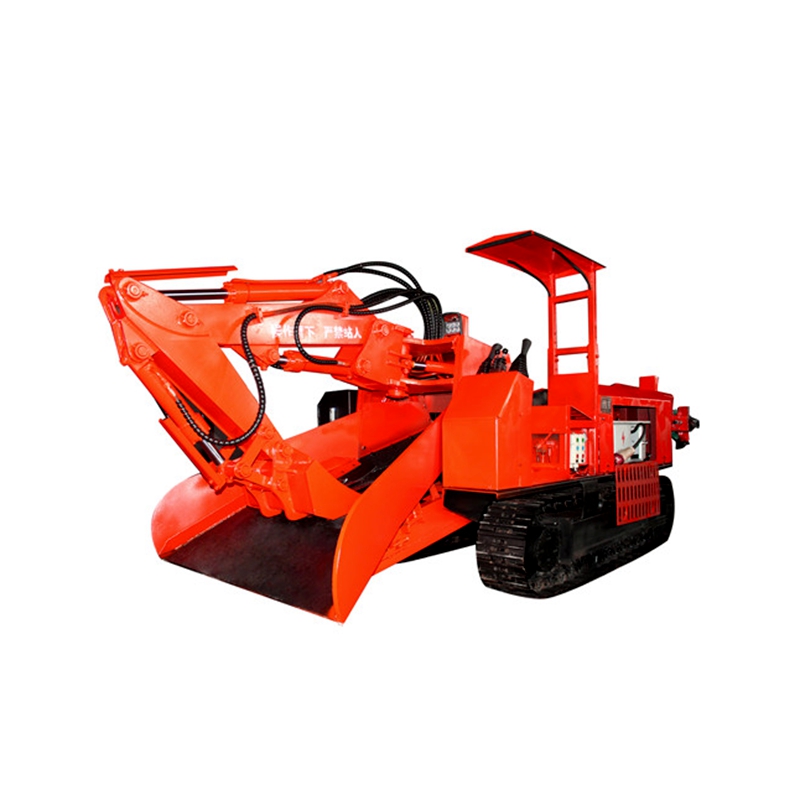

Tunnel Mucking Loader
