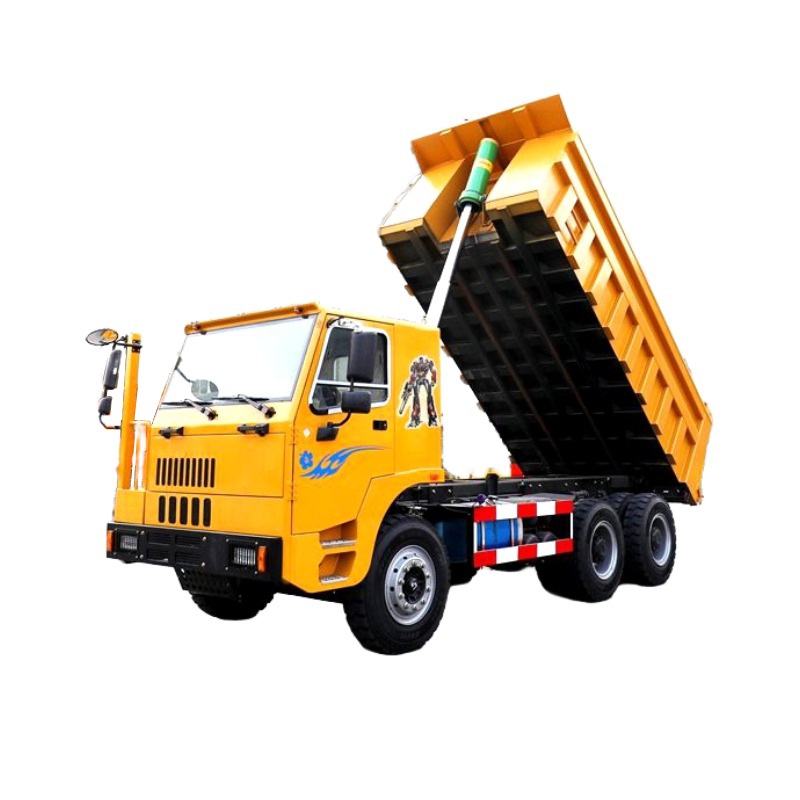

20 TON Wheeled Mining Dump Truck

Powerful Performance：High-torque engine enables excellent climbing and heavy - load transport, optimizing efficiency in steep mining conditions.

Increased Load - Carrying Capacity：1.5 times the standard capacity, ensuring reliable heavy - material transport in underground mining.

Cutting - Edge Safety and Durability：Fully enclosed wet brakes, low center of gravity, and robust build ensure safe operation in harsh environments.

Comfort - Centric Design：Well - designed cabin and intuitive controls enhance operator comfort, productivity, and job satisfaction.

Contact Now

Product Details

The Beijun 20 - Ton Mining Head Dump Truck has been meticulously engineered to transport materials with high efficiency and reliability within underground mining settings. Powered by a high - performance engine, it generates substantial torque and demonstrates outstanding climbing capabilities, enabling it to haul heavy loads even on steep inclines. This particular model boasts a load - bearing capacity that is 1.5 times greater than that of typical road vehicles, ensuring stable operation under arduous mining conditions.

Built with a sturdy lifting mechanism, cargo compartment, suspension system, and chassis, this dump truck is designed to endure the harshness of underground environments, offering long - lasting durability and reliability. Its fully - enclosed wet brake system is impervious to external dust and debris, guaranteeing superior braking performance for safe driving. Additionally, its lowered center of gravity enhances stability, while its specially - designed engine and transmission provide excellent adaptability to various terrains.

Having successfully acquired the national "KA" Mining Product Safety certification, the Beijun mining dump truck adheres to stringent safety and environmental norms. As a result, it emerges as the optimal option for attaining safe, efficient, and dependable transportation in underground mining undertakings.

Wheeled Mining Dump Truck

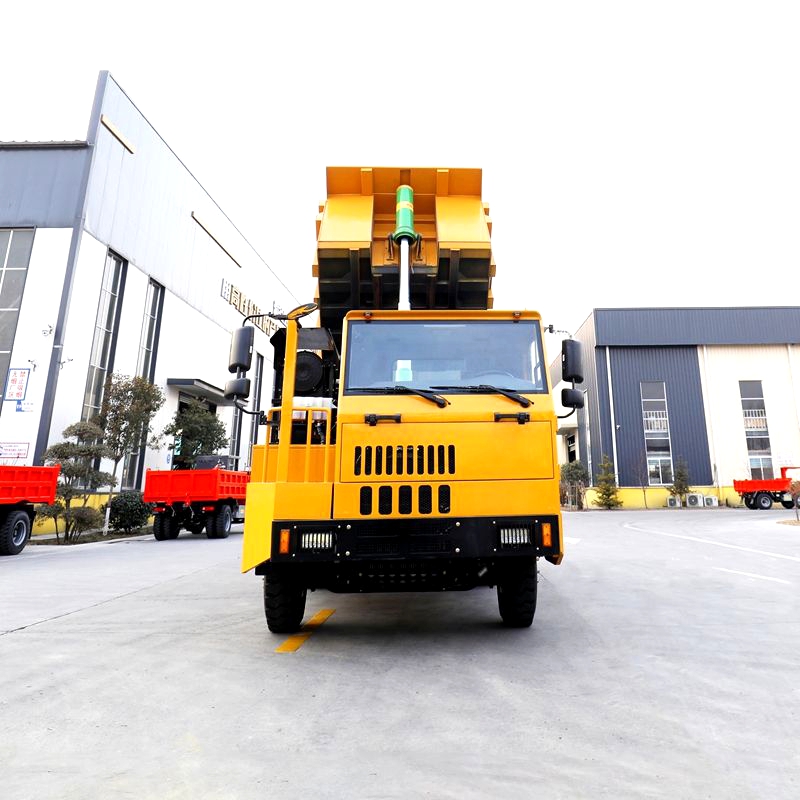

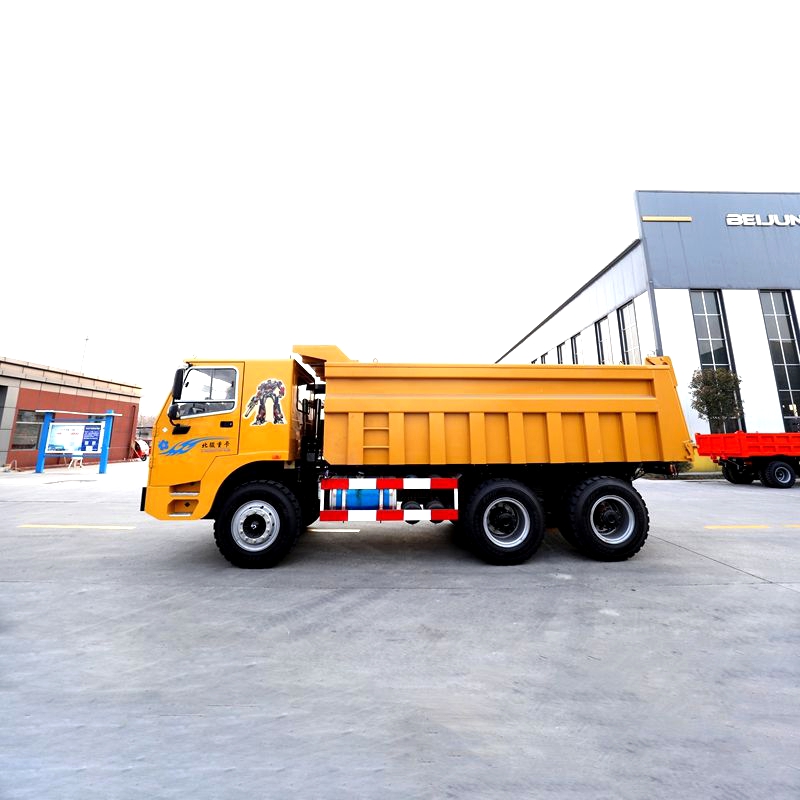

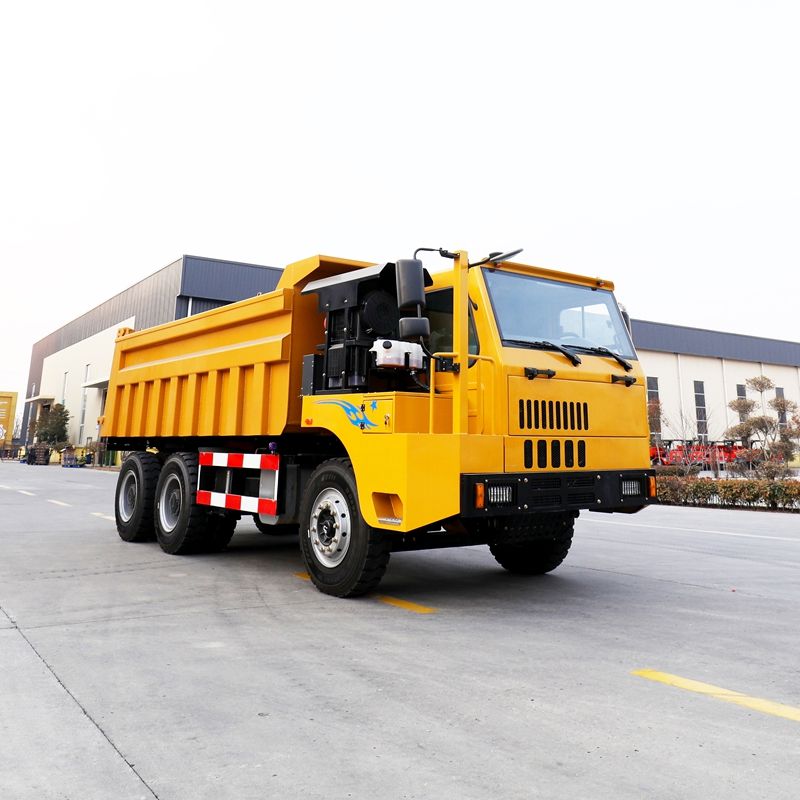

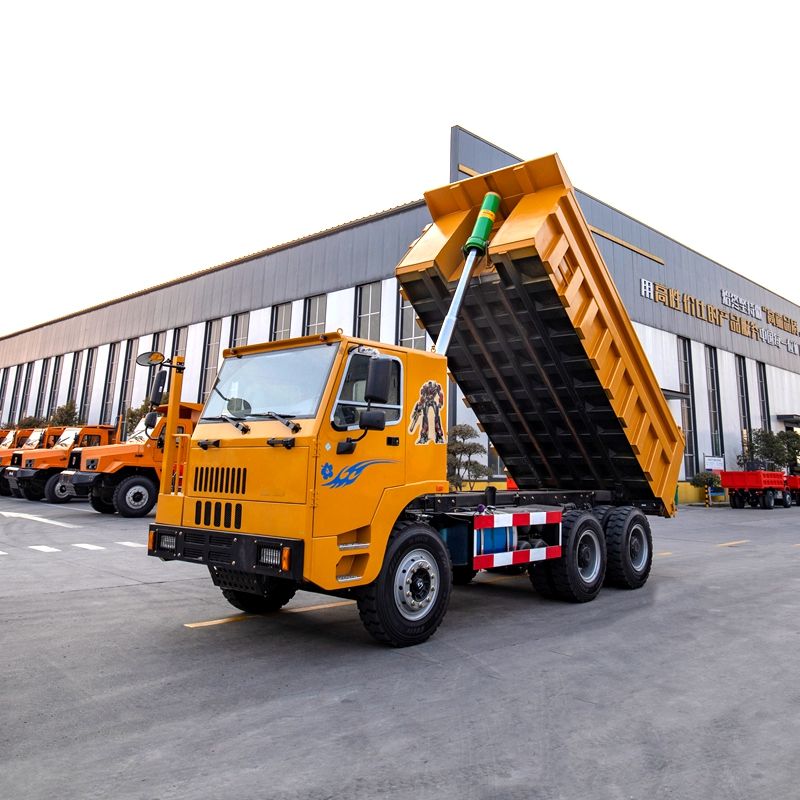

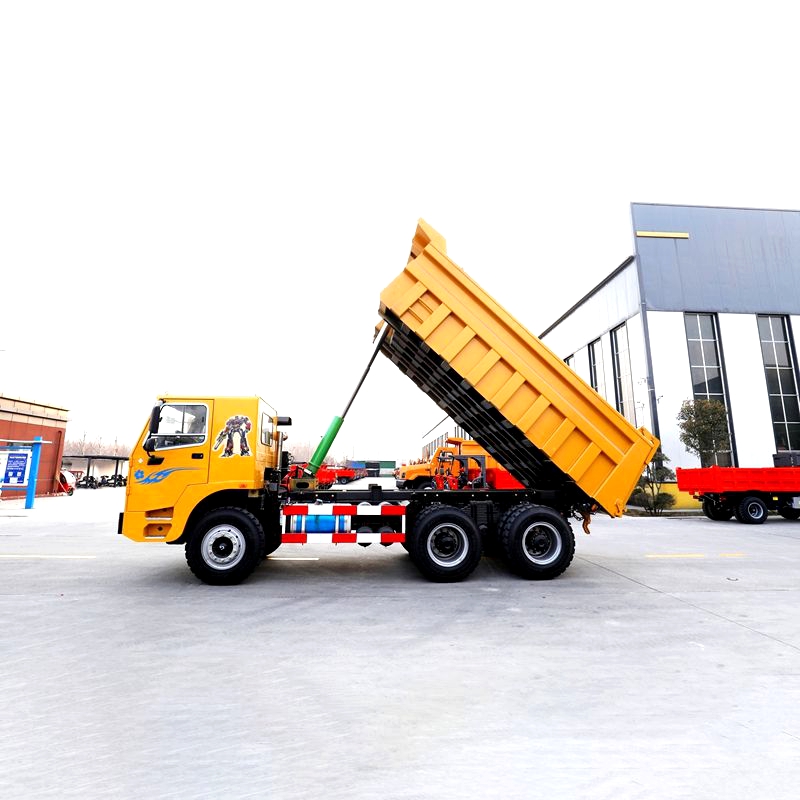

DETAIL PRESENTATION

Wheeled Mining Dump Truck

PRODUCT SELLING POINTS

Wheeled Mining Dump Truck

Engine

Large brand engines with high output power, powerful performance,

low failure rate, low maintenance costs, and guaranteed quality

Gearbox

Equipped with low - speed gear, high output torque,

stronger climbing power, and more sustainable output power. Shifting gears is more flexible and

convenient, greatly improving handling.

Wheeled Mining Dump Truck

Mine Tyre

We use mining specific steel wire tires, which are wear - resistant, high - temperature resistant, and puncture resistant.

PRODUCT SPECIFICATION

Item	Details
Model Name	UQ-20
Brand Logo	KA
Engine Model	Yuchai 4108 intercooled turbocharged, 160HP
Transmission	10JS90 transmission
Axle Model	Front axle 153 (10 holes), rear axle 153 (10 holes)
Bucket Size	4×2.2×0.8 (meters)
Bucket Plate Thickness	Bottom: 10mm, Sides: 8mm
Tire	900 - 20 Kunlun mining steel - wire tires
Frame Model	24 8+8 riveted frame
Spring Plate	Front: 12 pieces, Rear: 10 + 8 pieces, 90mm×16mm
Hydraulic Cylinder	Diameter: 130mm, Stroke: 1200mm
Braking Method	Wet braking
Steering Method	Hydraulic power - assisted steering
Exhaust Gas Treatment	Water treatment
Driving Position	Left - hand drive
Cab	1.4×1.5m, sub - top thickened steel plate, single - person semi - enclosed
Overall Dimensions	5.6×2.3×2 (length×width×height, in meters)
Vehicle Height	2m
Shifting Method	Shift cable

PRODUCT APPLICATIONS

Wheeled Mining Dump Truck

PRODUCT MANUFACTURING PROCESS

Wheeled Mining Dump Truck

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. takes a leading stance as a trailblazing enterprise specializing in the research, development, and fabrication of mining and construction machinery. Nestled in Jining, Shandong, the company sprawls across 100 acres and boasts a 20,000 - square - meter manufacturing plant. By capitalizing on state - of - the - art production technologies, Beijun attains an annual yield of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has been granted the ISO9001 quality management system certification along with the EU CE certification, and scrupulously adheres to mining safety production norms. The firm implements an all - round ERP system, integrating cutting - edge information technologies to enhance resource planning and streamline management procedures. Beijun's prime focus is on manufacturing mining transport vehicles, crawler haulage vehicles, and aerial work platform trucks.

Supported by a capable technical team, strict quality control protocols, contemporary testing facilities, and efficient production techniques, the company continuously offers high - end products. Beijun employs over 200 personnel, including 30 engineers, 40 sales executives, and 15 mechanical engineering professors with profound expertise.

Dedicated to innovation and independent R & D, Beijun adheres to its core principles of "Quality - First, Customer - Centric." Its product line has garnered extensive acclaim in the African, South American, and Southeast Asian markets, further cementing Beijun's standing as a reliable and innovative industry pioneer.
