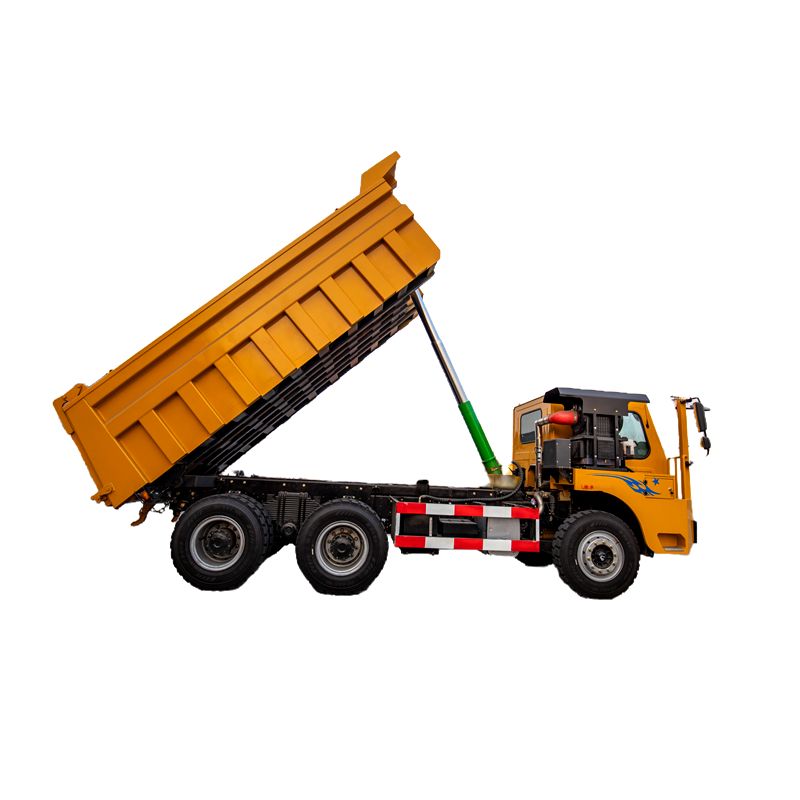

20T Wheeled Mining Dump Truck

Robust Propulsion System:Equipped with a high-torque engine, it delivers exceptional ascending capability, optimized for heavy payloads and efficiency in steep mining conditions.

Enhanced Payload Capacity:Offers 1.5x the carrying capacity of standard vehicles, ensuring reliable transportation of bulk materials in underground operations.

Advanced Safety & Durability:Features fully enclosed wet brakes, low gravity center, and rugged build, ensuring stable operation in extreme environments.

Operator-Centric Design:Ergonomic cabin with intuitive controls reduces fatigue, enhances productivity, and improves operator satisfaction during extended shifts.

Contact Now

Product Details

The Beijun 20 - ton mining head dump truck is meticulously crafted to offer efficient and reliable material transportation within underground mining settings. Fitted with a high - powered engine, it generates substantial torque and outstanding hill - climbing prowess, enabling it to haul heavy loads on steep inclines. This particular model boasts a load - carrying capacity that is 1.5 times greater than that of regular road vehicles, ensuring steadfast performance even in the most challenging mining conditions.

Built with a sturdy lifting mechanism, a well - designed cargo compartment, an advanced suspension system, and a robust chassis, this truck assures durability and dependability in the harsh underground environment. Its fully - enclosed wet brake system can resist external dust and debris, guaranteeing excellent braking performance for safe operation. Additionally, its lower center of gravity improves stability, and its specially - designed engine and transmission system provide great adaptability across various terrains.

After obtaining the national "KA" Mining Product Safety certification, the Beijun mining dump truck adheres to strict safety and environmental standards. Therefore, it is the optimal option for achieving safe, efficient, and reliable transportation in underground mining projects.

Wheeled Mining Dump Truck

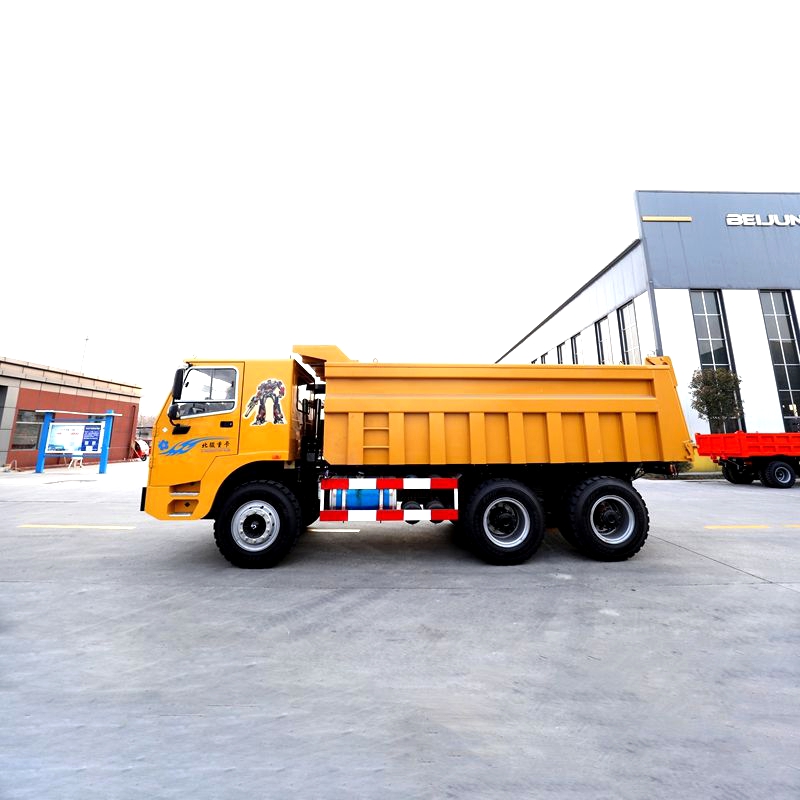

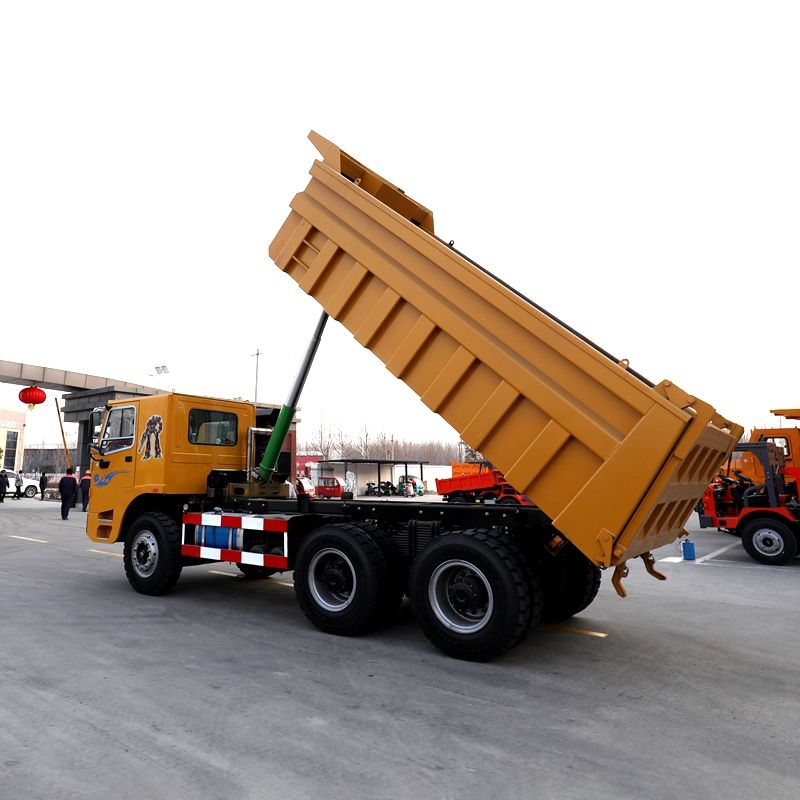

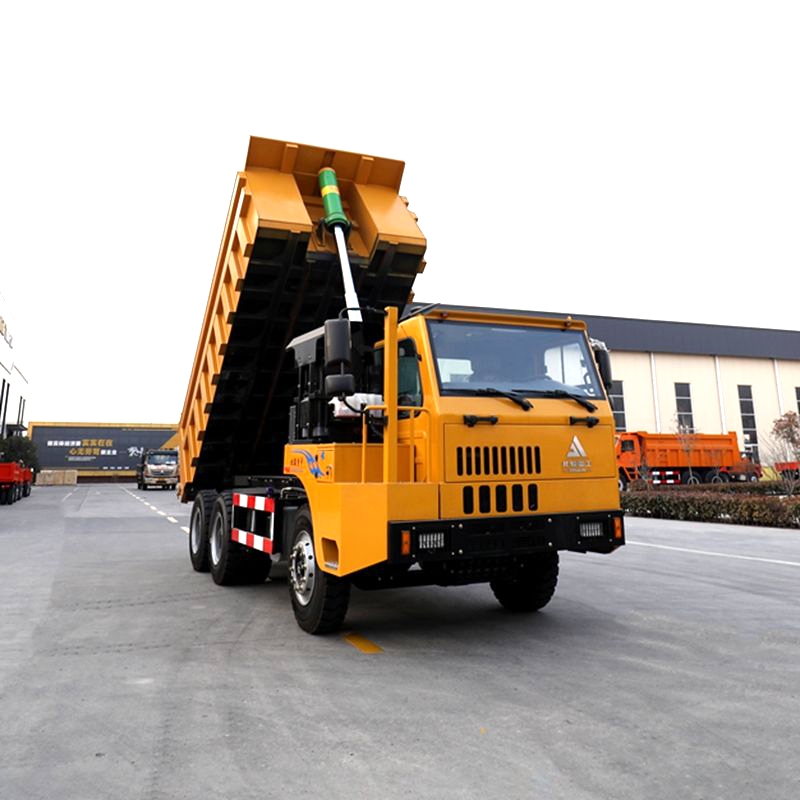

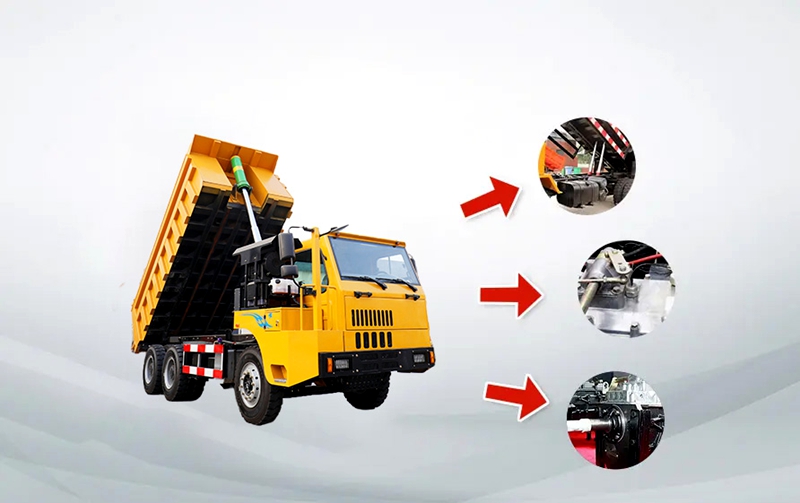

DETAIL PRESENTATION

Wheeled Mining Dump Truck

PRODUCT SELLING POINTS

<colgroup

Wheeled Mining Dump Truck

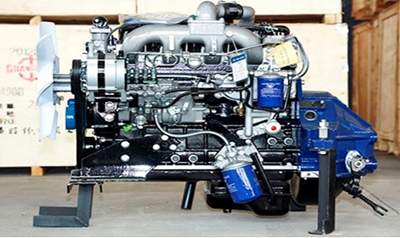

Engine

Large brand engines with high output power, powerful performance,

low failure rate, low maintenance costs, and guaranteed quality

Gearbox

Equipped with low - speed gear, high output torque,

stronger climbing power, and more sustainable output power. Shifting gears is more flexible and

convenient, greatly improving handling.

Wheeled Mining Dump Truck

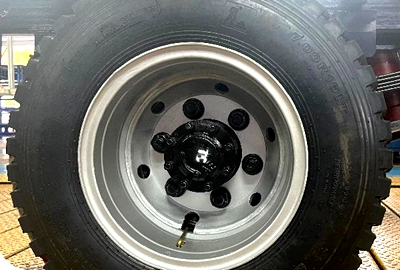

Mine Tyre

We use mining specific steel wire tires, which are wear - resistant, high - temperature resistant, and puncture resistant.

PRODUCT SPECIFICATION

Item	Details
Model Name	UQ-20
Brand Logo	KA
Engine Model	Yuchai 4108 intercooled turbocharged, 160HP
Transmission	10JS90 transmission
Axle Model	Front axle 153 (10 holes), rear axle 153 (10 holes)
Bucket Size	4×2.2×0.8 (meters)
Bucket Plate Thickness	Bottom: 10mm, Sides: 8mm
Tire	900 - 20 Kunlun mining steel - wire tires
Frame Model	24 8+8 riveted frame
Spring Plate	Front: 12 pieces, Rear: 10 + 8 pieces, 90mm×16mm
Hydraulic Cylinder	Diameter: 130mm, Stroke: 1200mm
Braking Method	Wet braking
Steering Method	Hydraulic power - assisted steering
Exhaust Gas Treatment	Water treatment
Driving Position	Left - hand drive
Cab	1.4×1.5m, sub - top thickened steel plate, single - person semi - enclosed
Overall Dimensions	5.6×2.3×2 (length×width×height, in meters)
Vehicle Height	2m
Shifting Method	Shift cable

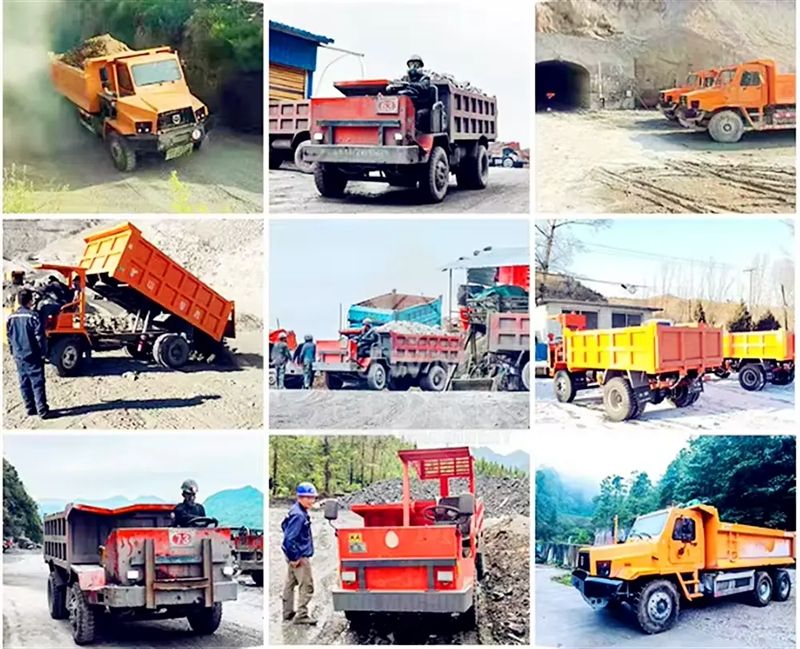

PRODUCT APPLICATIONS

Wheeled Mining Dump Truck

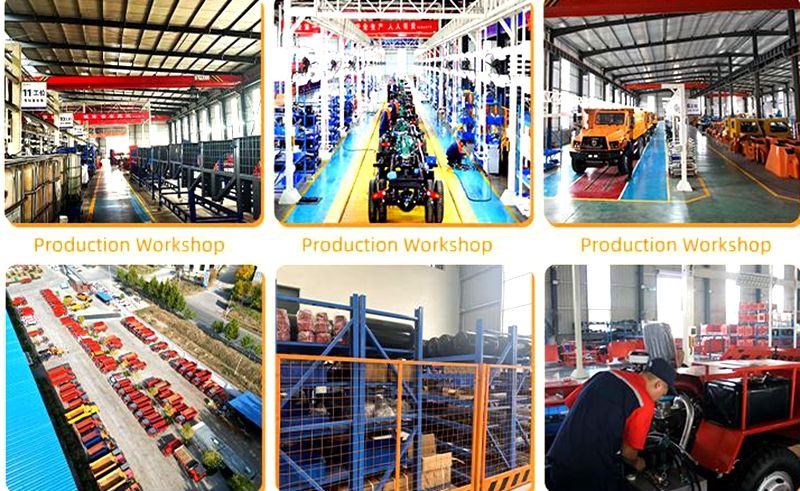

PRODUCT MANUFACTURING PROCESS

Wheeled Mining Dump Truck

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. is a trailblazing enterprise at the vanguard of the industry, concentrating on the research, development, and production of mining and construction equipment. Situated in Jining, Shandong province, the company covers an expanse of 100 acres and has a manufacturing facility spanning 20,000 square meters. By making use of cutting - edge production technologies, Beijun can produce 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks annually.

Beijun has acquired the ISO9001 quality management system certification and EU CE certification and complies with the mining safety production standards. The firm deploys a comprehensive ERP system, fusing advanced information technologies to fine - tune resource planning and management procedures. Beijun mainly focuses on manufacturing mining transport vehicles, crawler haulage vehicles, and aerial work platform trucks.

Supported by a proficient technical team, stringent quality control measures, state - of - the - art testing facilities, and effective production techniques, the company continuously offers high - quality products. Beijun has more than 200 employees, among whom there are 30 engineers, 40 sales managers, and 15 professors with in - depth knowledge of mechanical engineering.

Dedicated to innovation and independent research and development, Beijun adheres to its core principles of "Quality First, Customer - Centric." Its product line has gained widespread recognition in the markets of Africa, South America, and Southeast Asia, strengthening Beijun's status as a trustworthy and innovative leader in the industry.
