Surface Core Drilling Rigs

Advanced Hydraulic Systems: Equipped with HDC, PHC, and IAM systems for precise, efficient medium-to-deep hole drilling.

Flexible Operation: Top-drive rotation and Christensen-type drill heads ensure reliable, efficient performance across various applications.

Durability: Long-lasting hydraulic motor with reducer and protective hydraulic hoses for extended service life.

Efficient Adjustment & Positioning: Quick, stable height adjustment with strong hydraulic legs and precise wellhead design for accurate vertical drilling.


Contact Now
Product Details

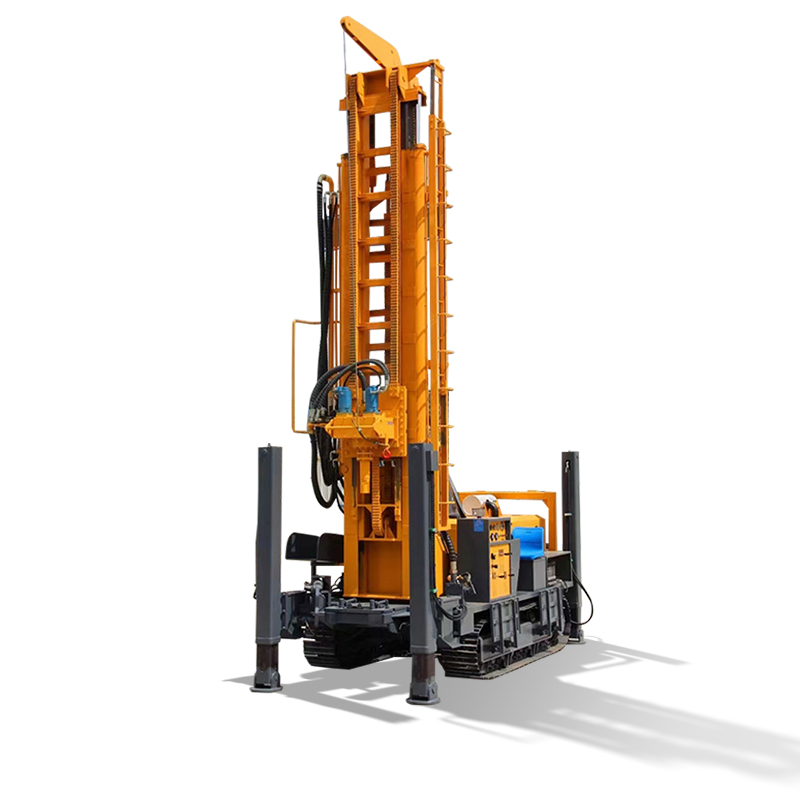

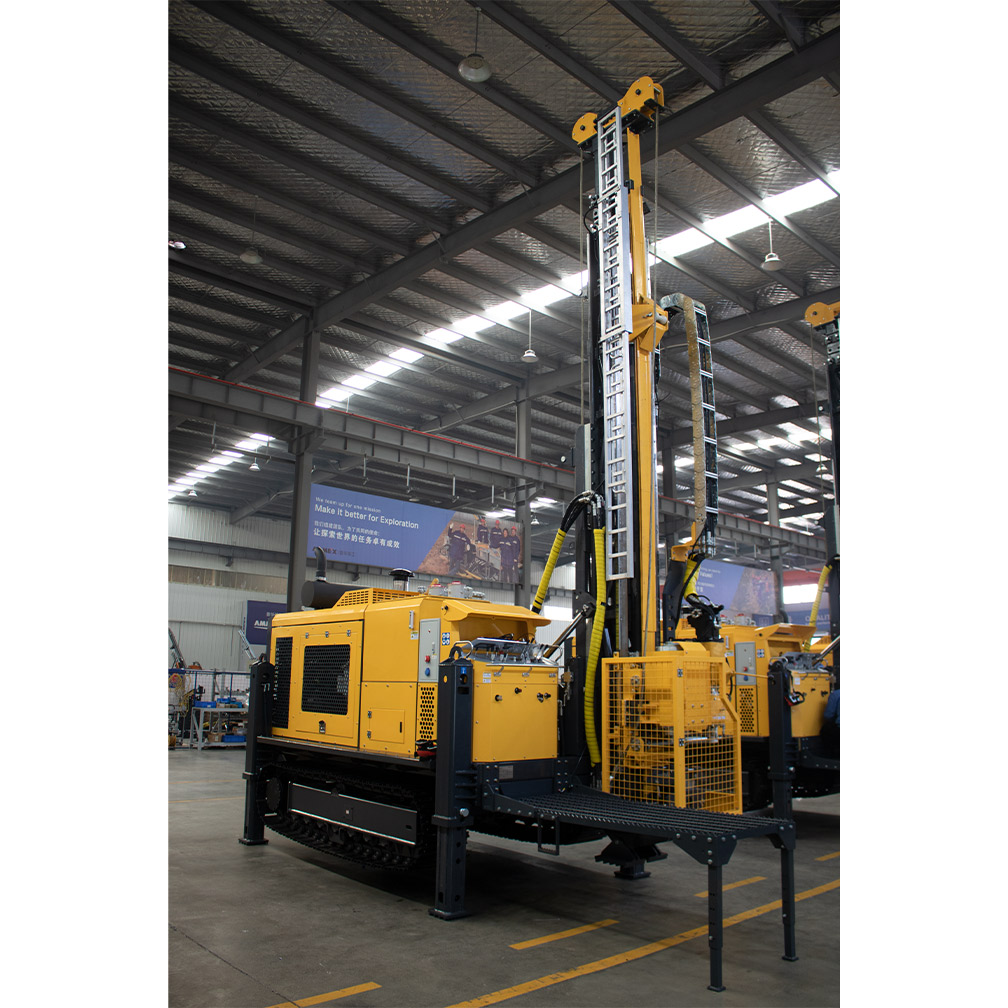

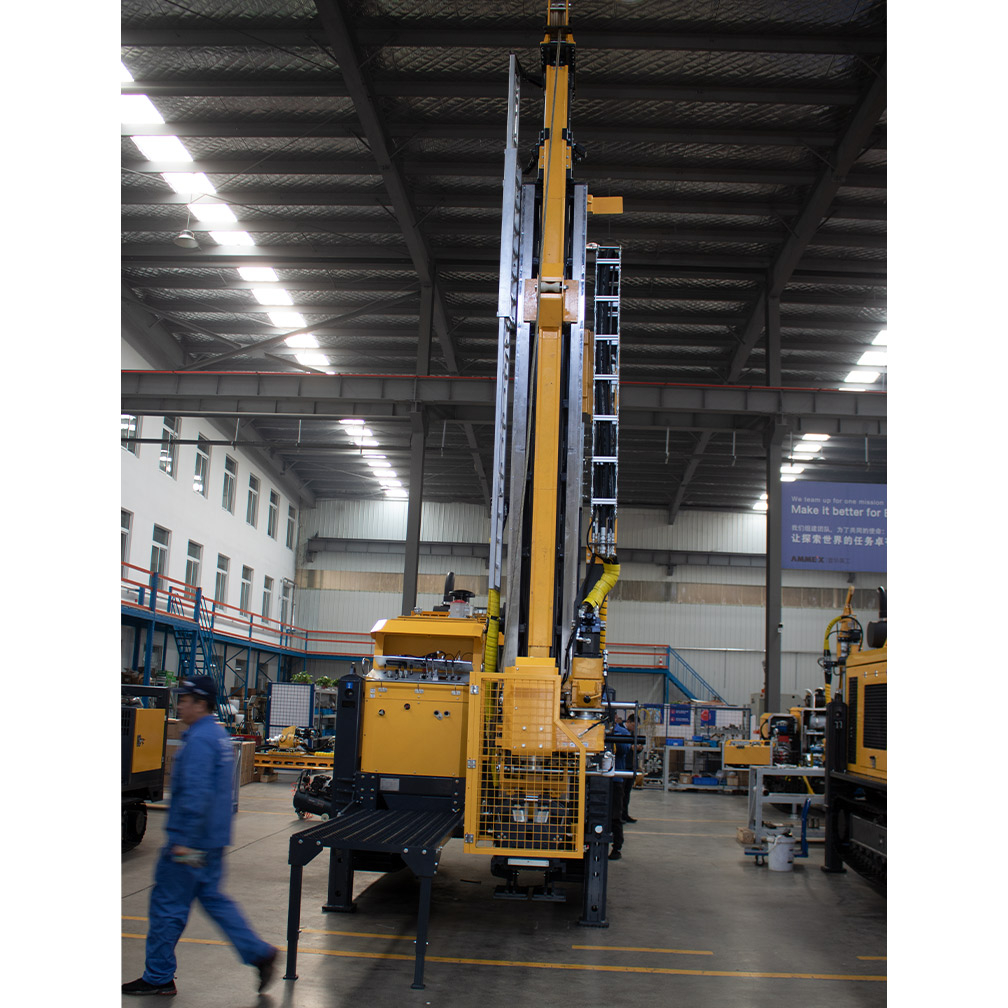

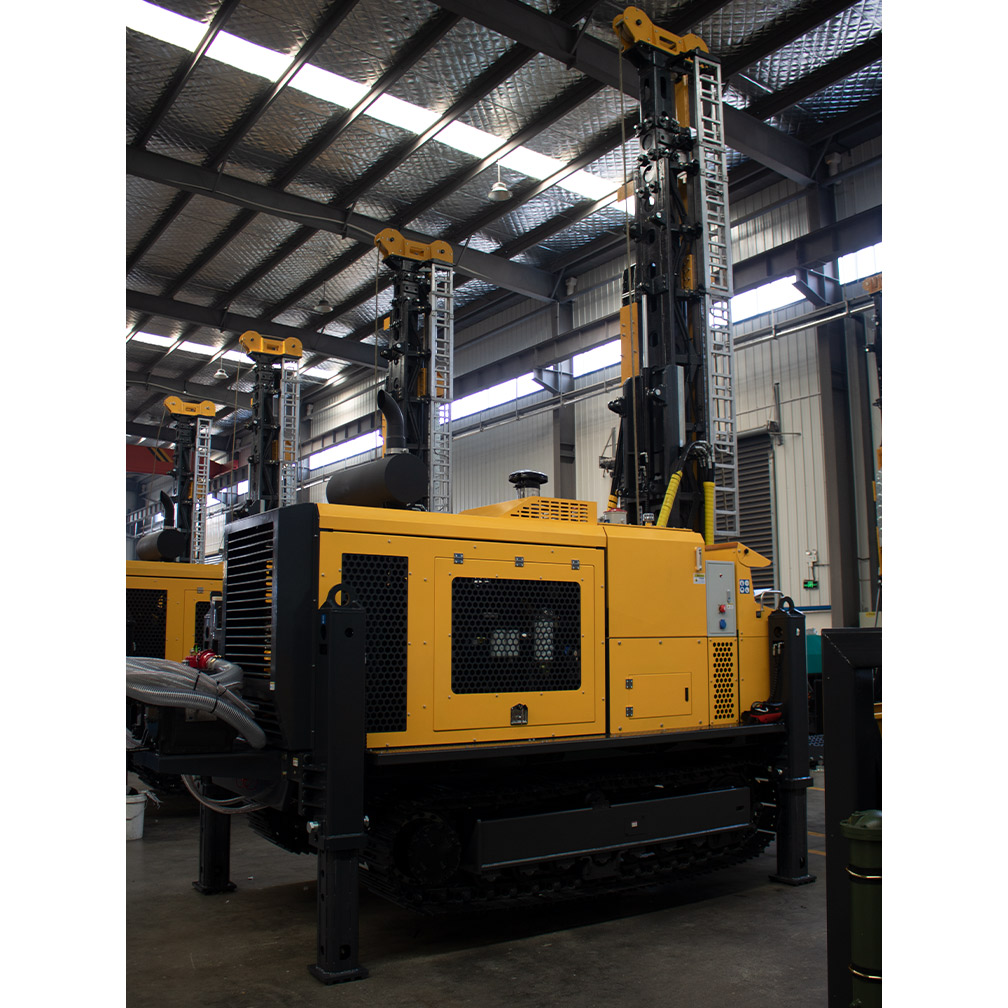

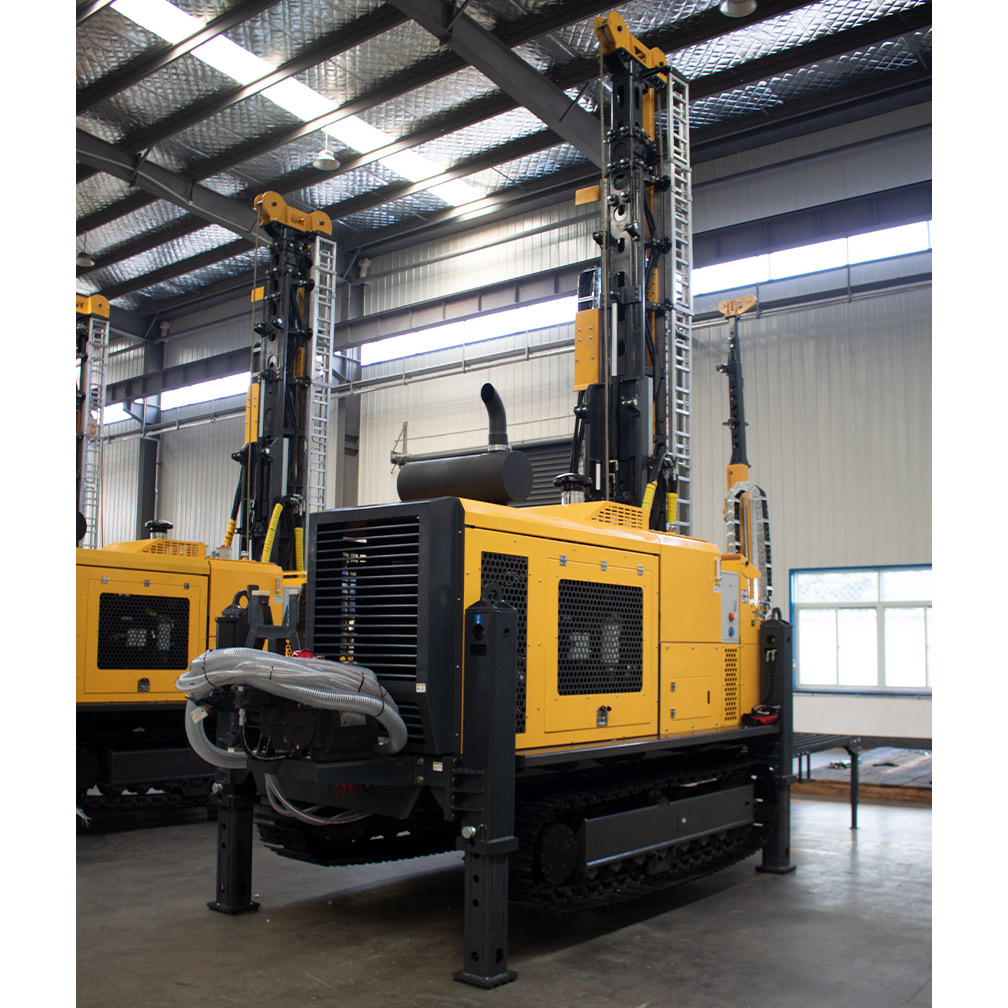

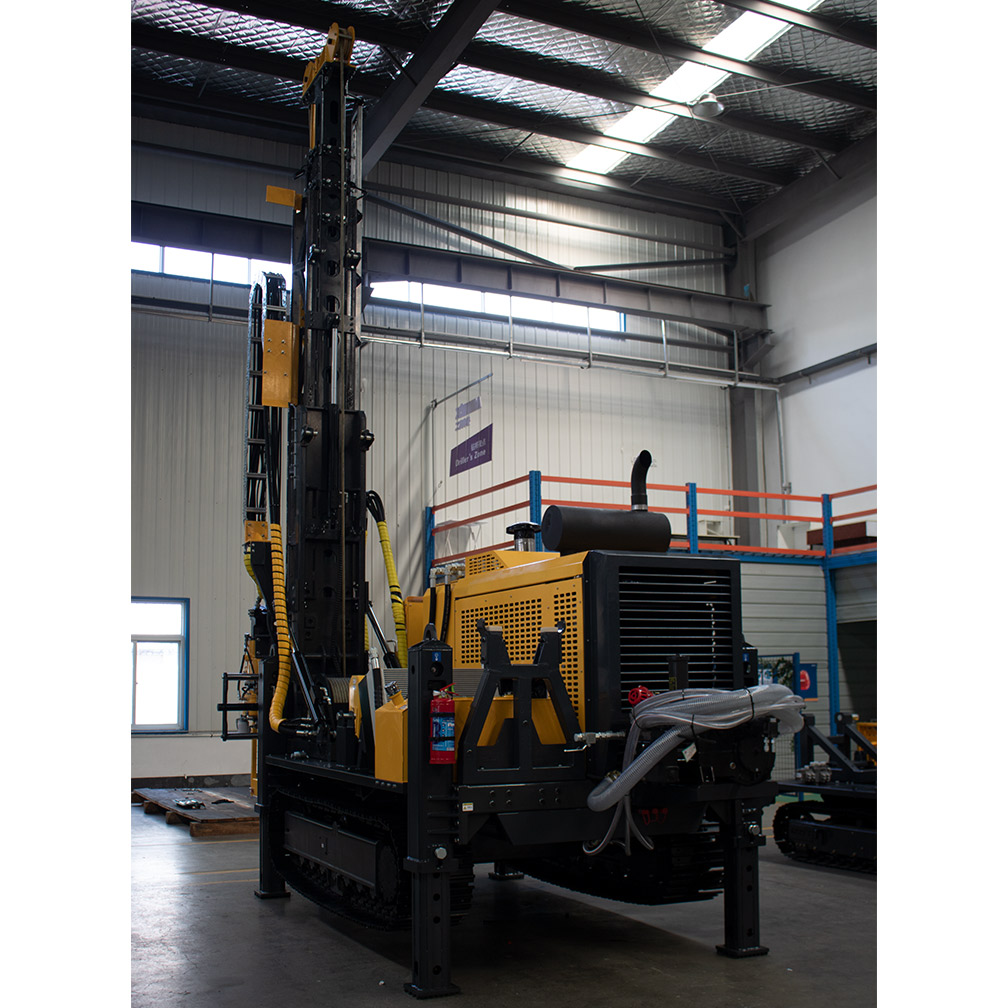

The Surface Core Drilling Rig is designed for medium-to-deep hole drilling applications, featuring advanced full-hydraulic systems for flexible and efficient operation. It utilizes Hydraulic Direct Control (HDC), Pilot Hydraulic Control (PHC), and Digital Intelligent Management (IAM) for precise hydraulic control, making it suitable for a wide variety of drilling tasks.

The rig comes equipped with a top-drive rotation unit for medium-shallow holes and Christensen-type drill heads for reliable operation in medium-to-deep holes. It is certified by official authorities and industry associations as a leading technology provider with global-advanced standards.

The rig is available with tracked and wheeled chassis options, ensuring easy relocation and transport across diverse terrains. Additionally, the hydraulic motor's durability is extended with a reducer, and the hydraulic hoses are protected to maximize lifespan. Quick height adjustments are facilitated by strong hydraulic legs, while a specialized wellhead design guarantees precise vertical drilling and accurate wellhead positioning.


Surface Core Drilling Rigs

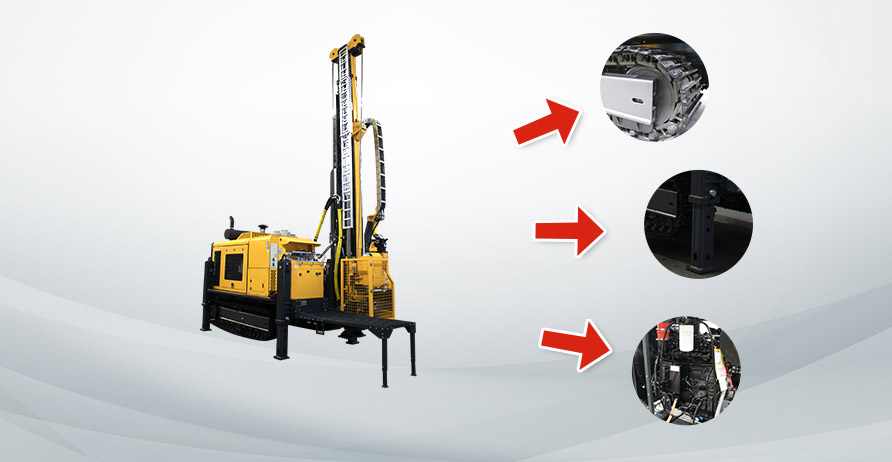

DETAIL PRESENTATION

Surface Core Drilling Rigs



PRODUCT SELLING POINTS

Surface Core Drilling Rigs


01

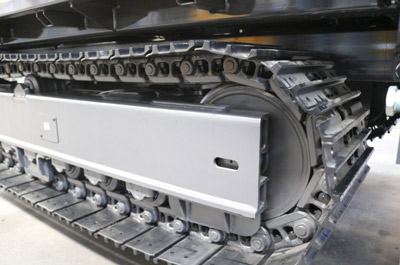

Thickened track

It can be passed on any terrain, durable



02

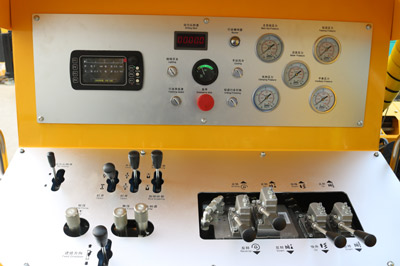

Operating system

Internal intensive operation platform, consider

Ergonomic principles for design,

Easy observation and comfortable operation.


Surface Core Drilling Rigs
Surface Core Drilling Rigs

03

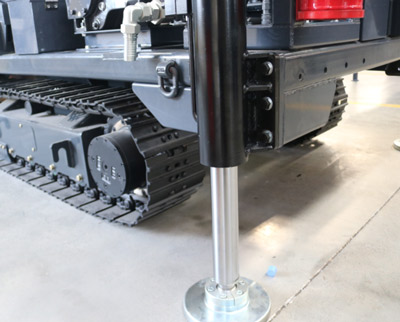

Hydraulic legs

flexible support range, good stability, suitable for a variety of terrain


04


Diesel engine power

Power can be customized, Powerful and durable.

Surface Core Drilling Rigs


PRODUCT SPECIFICATION


Technical Specifications

BJ600

BJ800

BJ1000

BJ1200

BJ1600

BJ2000(DH)

Drill Type

Top Drive

Top Drive

Top Drive

Chuck

Chuck

Chuck

Depth Capacity (N)

600m

800m

1000m

1200m

1350m

1800 m(2000m)

Diesel Engine Power

97kw

119kw

140kw

140kw

153kw

180 KW (210 KW)

Feed Stroke

2.5m

2.5m

2.5m

3.5m

3.5m

3.5m

Maximum Torque

1800Nm

2200Nm

2400Nm

5800Nm

6800Nm

7600 Nm

Hoisting Force

105KN

110KN

115KN

120KN

140KN

155 KN

Max Rod Diameter

117mm

117mm

117mm

117MM

142mm

168 mm

Suitable Rod Sizes

1.5m/2m

1.5m/2m

1.5m/2m

3m

3m/6m

3m /6 m

Overall Weight

6500kg

7500kg

8500kg

9500kg

13000kg

15000 Kg

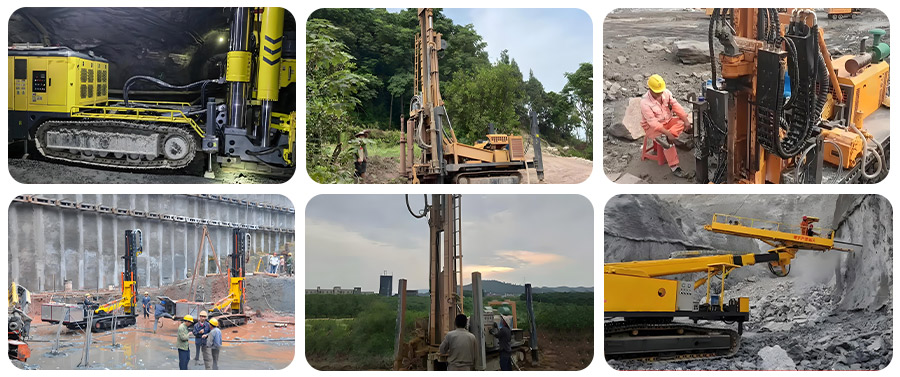

PRODUCT APPLICATIONS


Surface Core Drilling Rigs


ABOUT US


Shandong Beijun Machinery Industry Co., Ltd. is a leading enterprise specializing in the research, development, and manufacturing of mining and construction machinery. Located in Jining, Shandong, the company spans 100 acres and operates a 20,000-square-meter production facility. Beijun has advanced production capabilities, with an annual output of 4,000 mining trucks, 500 fully hydraulic crawler trucks, and 3,000 aerial work trucks.

The company holds ISO9001 quality management certification, EU CE certification, and mine safety production qualifications. Beijun has implemented an ERP information management system, leveraging cutting-edge IT technologies to streamline resource planning and operations.

Beijun specializes in the production of mining transport vehicles, crawler transport vehicles, and aerial work platform trucks. The company’s skilled technical team, robust quality assurance systems, advanced testing facilities, and efficient manufacturing processes enable it to meet customer demands and support sustainable growth.

Dedicated to independent research, development, and innovation, Beijun employs over 200 professionals, including 30 technicians, 40 marketing managers, and 15 professors in mechanical design. The company adheres to the values of "Quality First, Customer First" and has established a strong presence in markets across Africa, South America, and Southeast Asia.


Surface Core Drilling RigsSurface Core Drilling Rigs

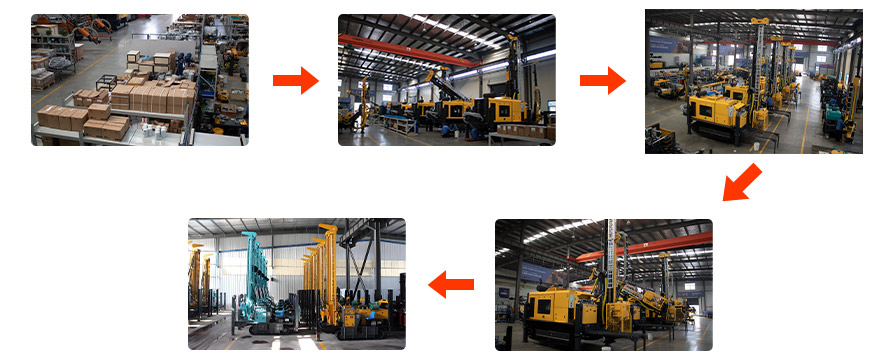

PRODUCT MANUFACTURING PROCESS
