Cheap Wheel Mucking Loader Purchase

Swift Maintenance: Its well - engineered structure allows for rapid fault identification, streamlining the maintenance process and reducing both time and labor requirements.

Ideal Proportions: The machine's dimensions are perfectly adapted to construction sites, making installation and operation straightforward and hassle - free.

Dependable Operation: Crafted with top - notch manufacturing standards, it offers consistent performance over the long term and has a remarkably low incidence of malfunctions.

Energy - Efficient Design: The intelligent design of the power system maximizes energy efficiency, effectively lowering operational expenses.

Contact Now

Product Details

This machinery adopts an electric full - hydraulic transmission mechanism and integrates four essential functions: hydraulic movement, excavation and gathering, material transportation, and loading. Thanks to its sleek and compact design, it generates powerful thrust and covers a wide mucking area. The main operations are controlled by pilot - actuated valves, ensuring an easy - to - understand and smooth operation process. This not only safeguards safety and comfort but also provides outstanding maneuverability, strong climbing ability, and a stable, vibration - free performance.

It can load rocks across the entire cross - section without leaving any uncovered areas, eliminating the need for manual surface cleaning. This greatly enhances work efficiency, reduces mining costs, and optimizes economic benefits. With an hourly unloading capacity of 50 - 60 cubic meters, one unit can efficiently replace the work of more than 30 workers. This decrease in the number of operators not only improves labor efficiency but also mitigates potential safety hazards during operation.

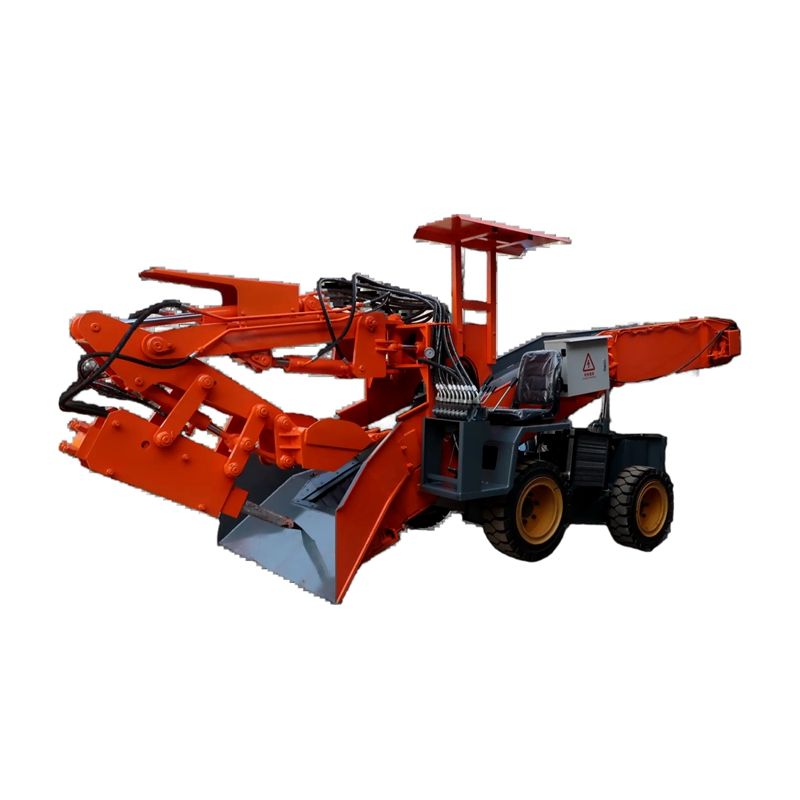

Wheel Mucking Loader

DETAIL PRESENTATION

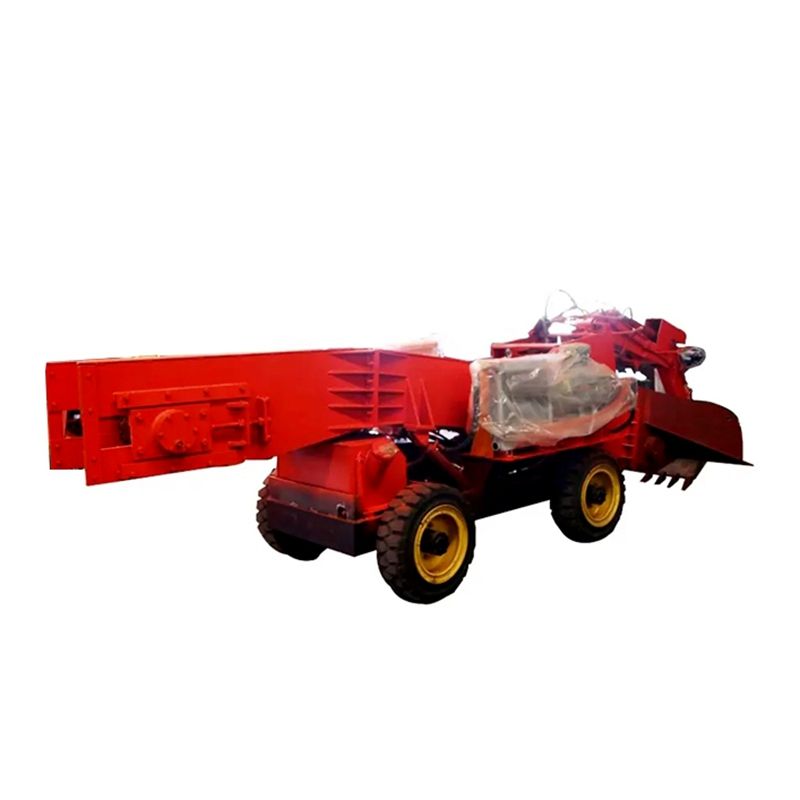

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

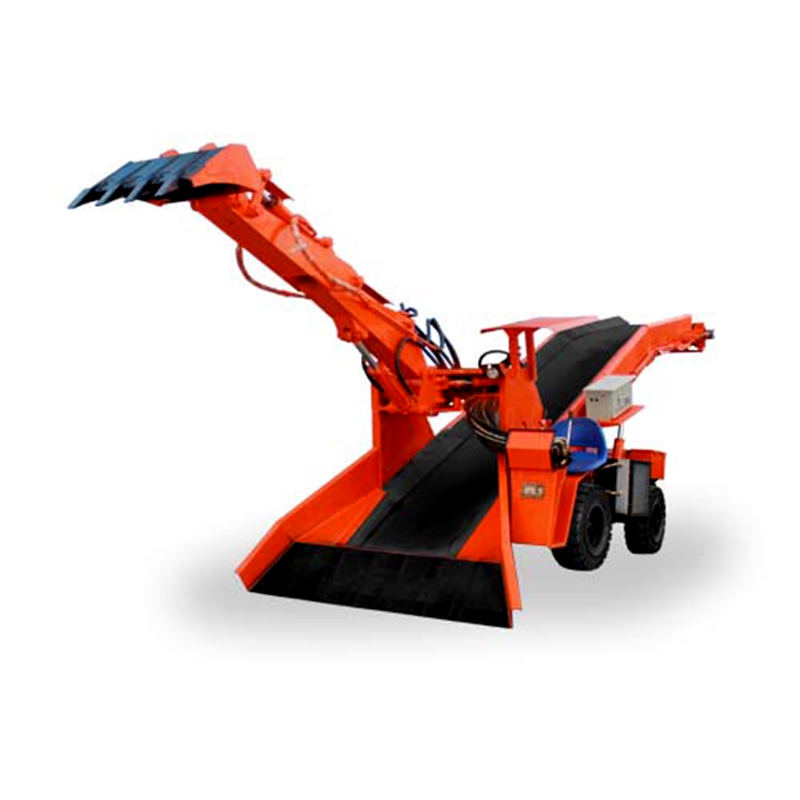

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ1.3-60T-B
Loading Capacity (m³/h)	≤ 60
Total Machine Mass (kg)	3100
Wheelbase (A) (mm)	1480
Track Width (Front/Rear) (mm)	1180/1130
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3000
Digging Reach (C) (mm)	≥ 1400
Excavation Depth (Z) (mm)	≤ 500
Excavation Height (H) (mm)	2150
Maximum Dumping Height (H) (mm)	1300 (Can be Increased)
Loading Length (D) (mm)	1500 (Can be Extended)
Gradability (°)	≤ 5
Maximum Dimension of Pass - through Material (mm)	≤ 600×450
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 60
Main Motor Power (Kw)	11
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	5500
Maximum Dimensions in Transport State (mm) - Width	1550
Maximum Dimensions in Transport State (mm) - Height	1650
Minimum Applicable Cross - section (㎡)	2.2×2.2

PRODUCT DISPLAY

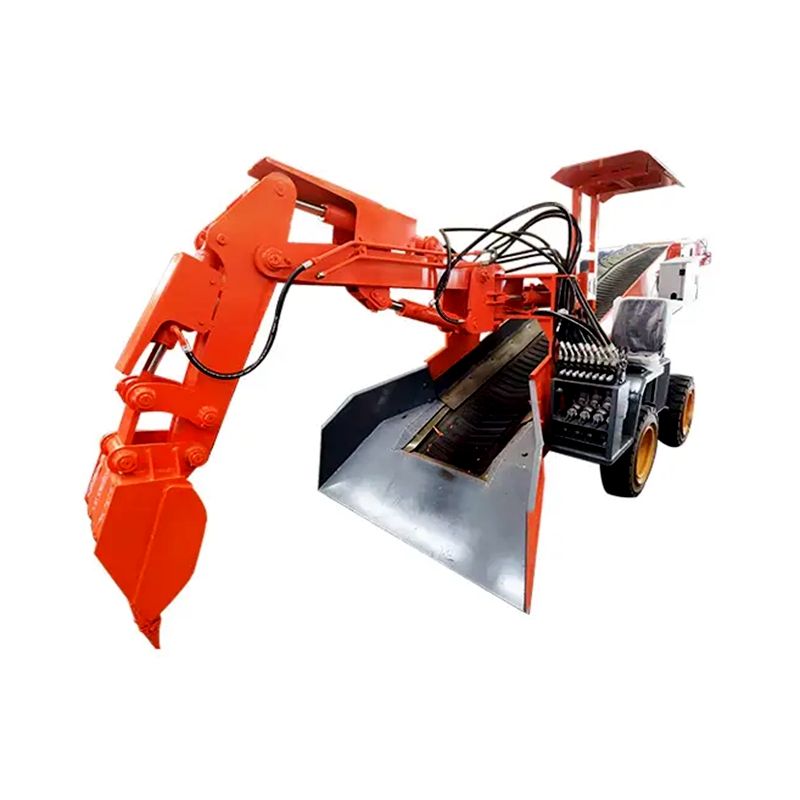

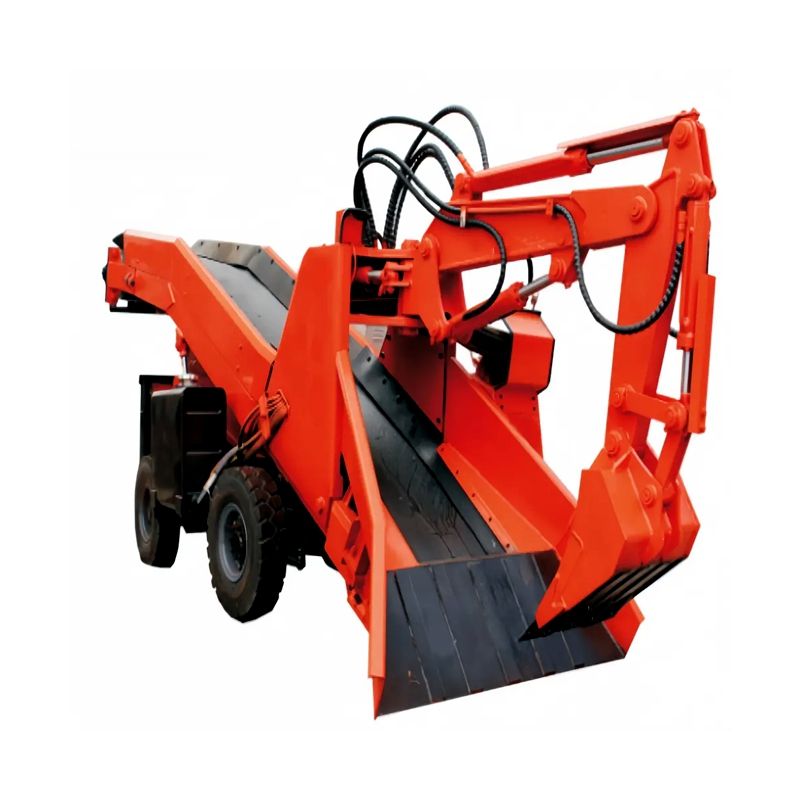

Wheel Mucking Loader

PRODUCT APPLICATIONS

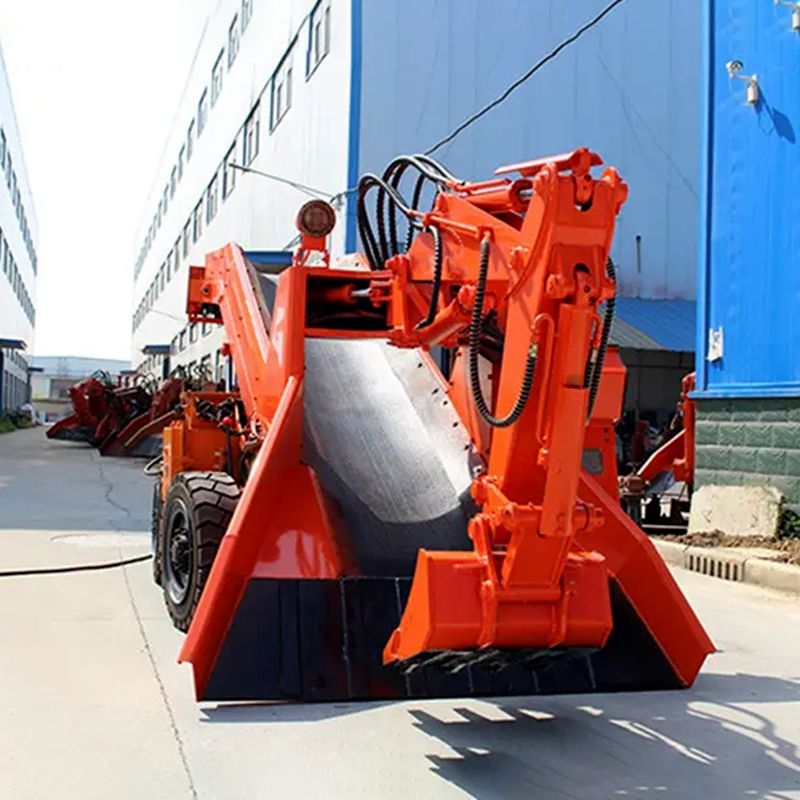

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands as a preeminent enterprise, wholeheartedly devoted to the research, development, and production of mining and construction machinery. Located in Jining, Shandong, the company occupies a vast expanse of 100 acres, featuring a 20,000 - square - meter manufacturing plant. By leveraging advanced manufacturing technologies, Beijun attains an annual production output of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has been successfully accredited with the ISO9001 quality management system certification and the EU CE mark. It strictly adheres to mining safety and production regulations. The company has put in place a comprehensive ERP system, incorporating advanced information technology approaches to optimize resource planning and boost management effectiveness. Beijun primarily specializes in manufacturing mining transport vehicles, crawler haulage machinery, and aerial work platform trucks.

Backed by a highly skilled technical team, strict quality control measures, modern testing equipment, and efficient production processes, the company continuously supplies high - standard products. Beijun has a workforce of over 200 employees, including 30 engineers, 40 sales representatives, and 15 mechanical engineering specialists.

Committed to innovation and independent R&D, Beijun firmly upholds its core principles of "Quality - Centric, Customer - Focused." Its product lineup has garnered extensive acclaim in the African, South American, and Southeast Asian markets, further enhancing Beijun's reputation as a reliable and innovative industry leader.
