Trusted Wheel Mucking Loader Sale

Stable Hydraulics: Adopts load-sensing hydraulic technology for steady, reliable operation without hidden risks.

Powerful Excavation: Features robust digging capability, adapting to diverse rock textures for faster operations.

Efficient Repair: Scientific structure enables fast fault detection, saving time and effort in maintenance.

Space Adaptability: Fits various tunnel sections, operational in both narrow and spacious environments.

Contact Now

Product Details

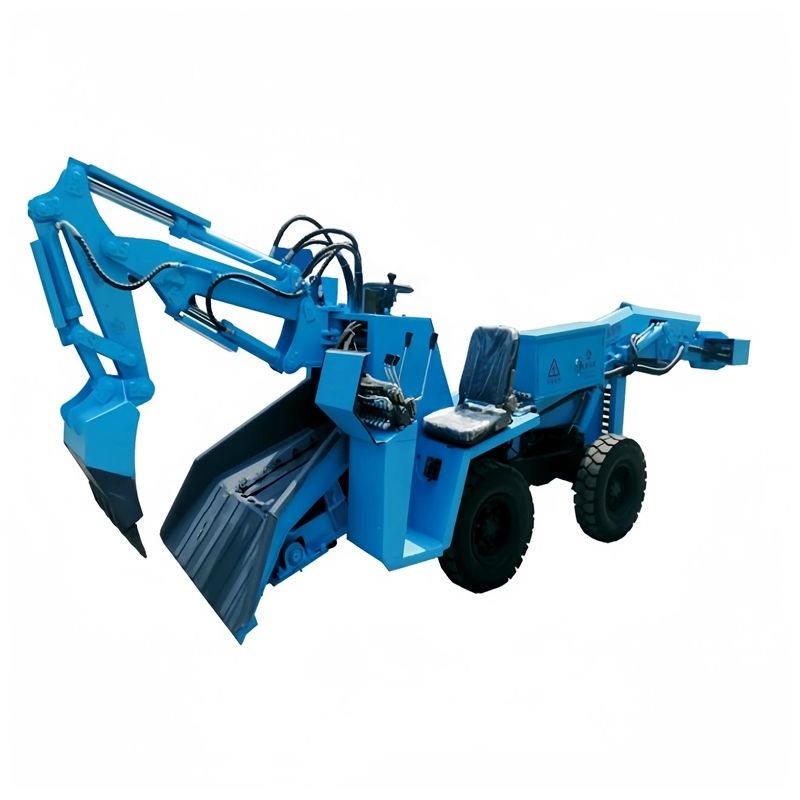

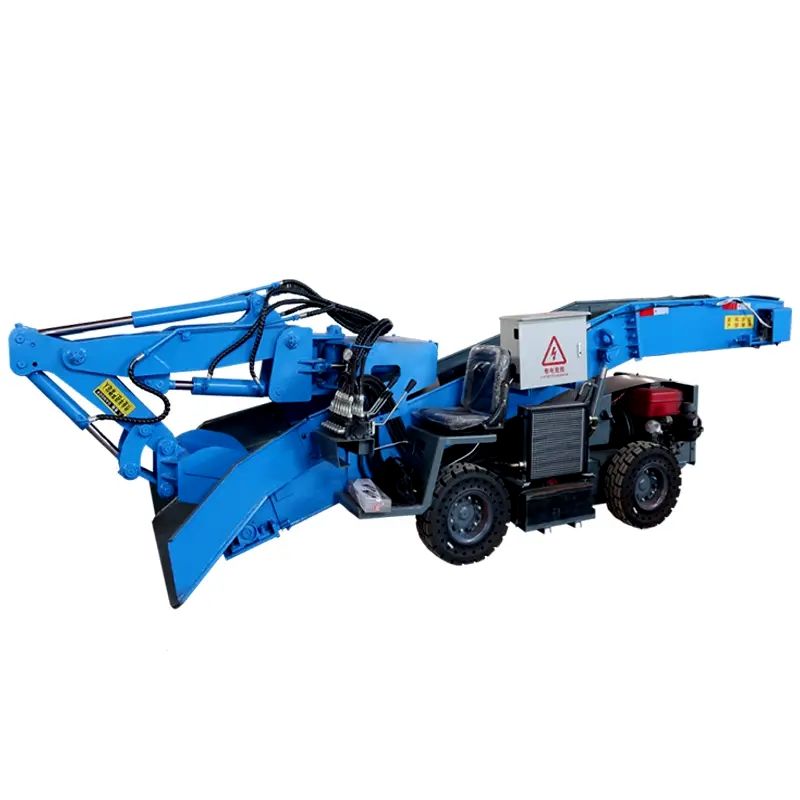

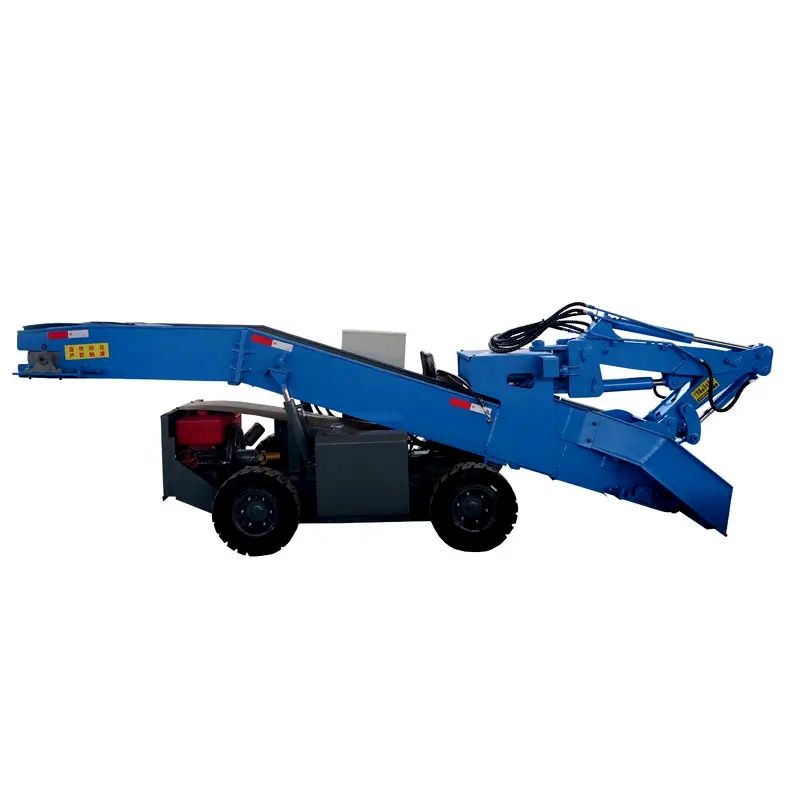

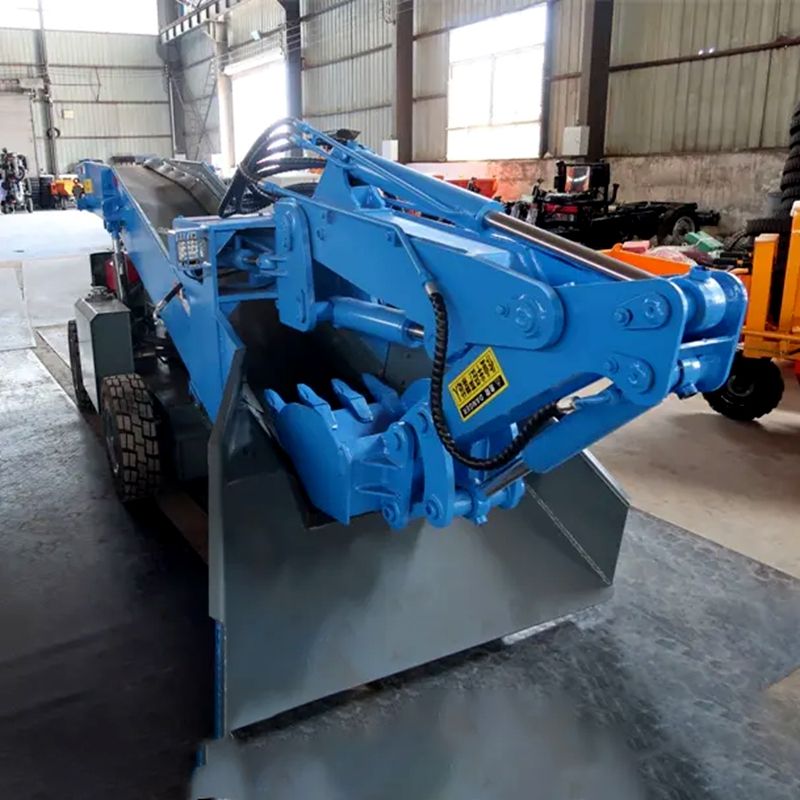

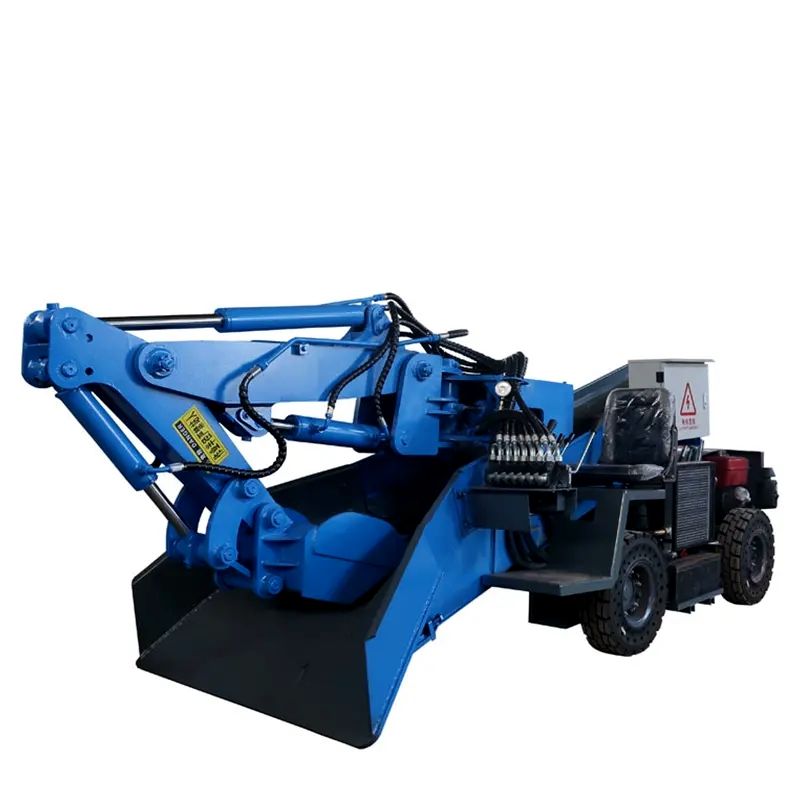

This apparatus employs an full - hydraulic transmission mechanism and merges four essential functions: hydraulic movement, excavation and gathering, material transport, and loading. With a sleek and compact design, it generates considerable thrust and covers a broad mucking area. Its key operations are regulated by pilot - operated valves, guaranteeing an easy - to - follow and trouble - free operation. This not only safeguards safety and comfort but also provides outstanding maneuverability, sturdy climbing ability, and a smooth, tremor - free performance.

It can load rocks across the whole cross - section without any overlooked areas, doing away with the need for manual cleaning of the working surface. This notably enhances productivity, reduces mining expenditures, and maximizes economic gains. With the ability to unload 50 - 60 cubic meters of materials per hour, a single machine can efficiently substitute the work of more than 30 workers. This decrease in the number of operators not only streamlines the workforce but also reduces potential safety hazards during operation.

Wheel Mucking Loader

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

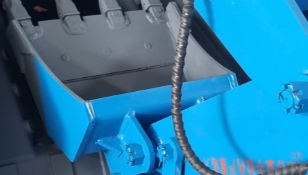

	01 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

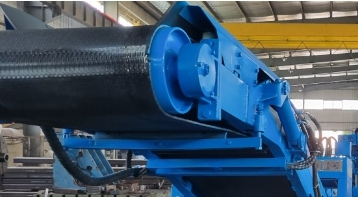

02 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.

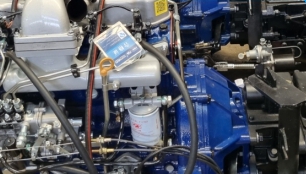

	03 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.

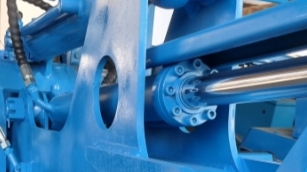

04 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.

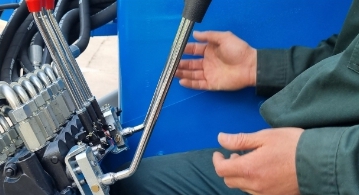

	05 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.

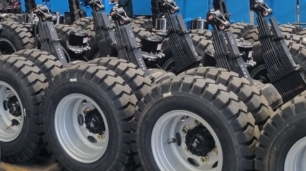

06 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine

Wheel Mucking Loader

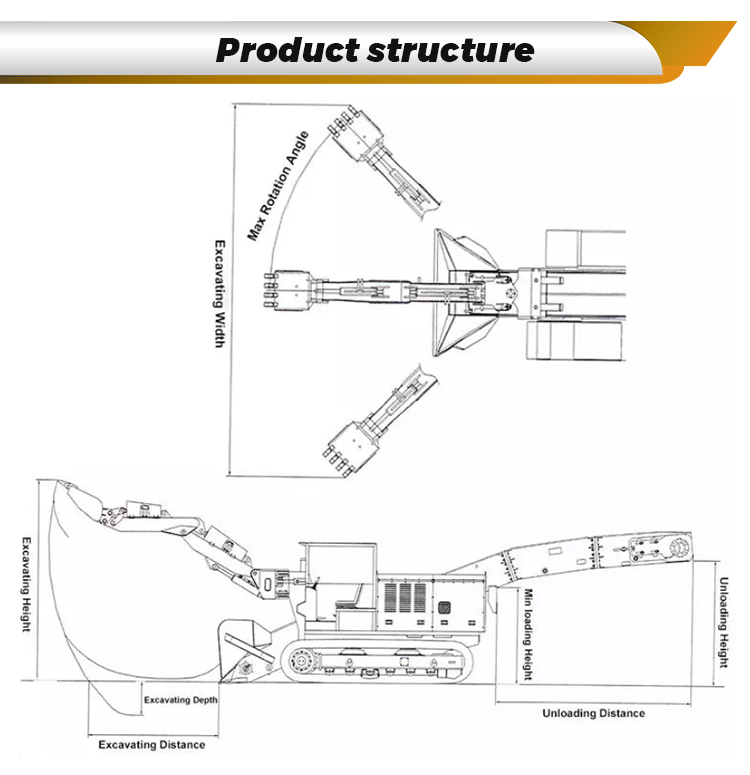

PRODUCT SPECIFICATION

Model	BJ1.5-70T-B1
Loading Capacity (m³/h)	≤ 70
Total Machine Mass (kg)	Approximately 3100±5%
Wheelbase (A) (mm)	1550
Track Width (Front/Rear) (mm)	1250/1220
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3000
Digging Reach (C) (mm)	1600
Loading Width (Z) (mm)	650
Excavation Height (H) (mm)	2050
Maximum Dumping Height (H) (mm)	1500 (Can be Raised)
Loading Length (D) (mm)	1600 (Can be Extended)
Gradability (°)	≤ 5
Maximum Dimension of Pass - through Material (mm)	≤ 640×500
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 60
Main Motor Power (Kw)	11
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	5300±50
Maximum Dimensions in Transport State (mm) - Width	1300±50
Maximum Dimensions in Transport State (mm) - Height	1400±50
Minimum Applicable Cross - section (㎡)	2.2×2.2

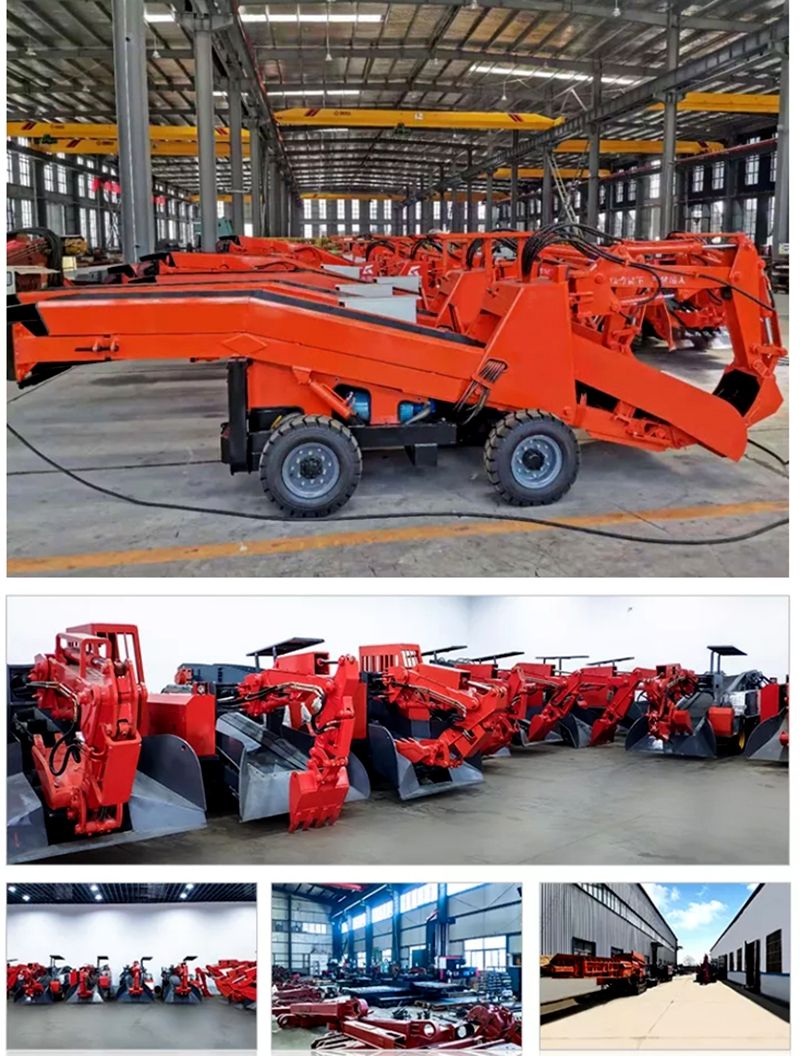

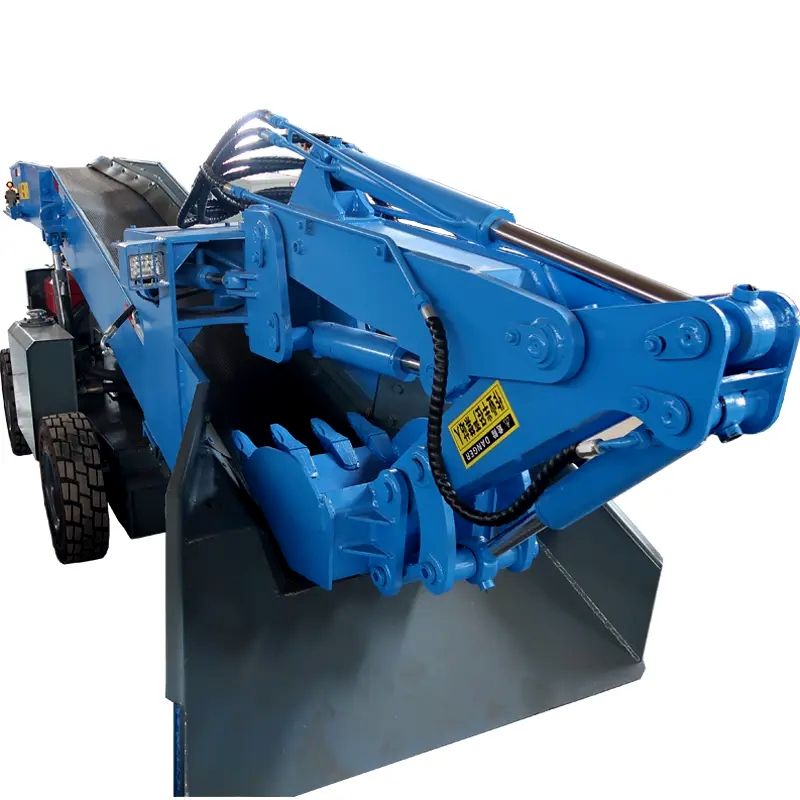

PRODUCT DISPLAY

Wheel Mucking Loader

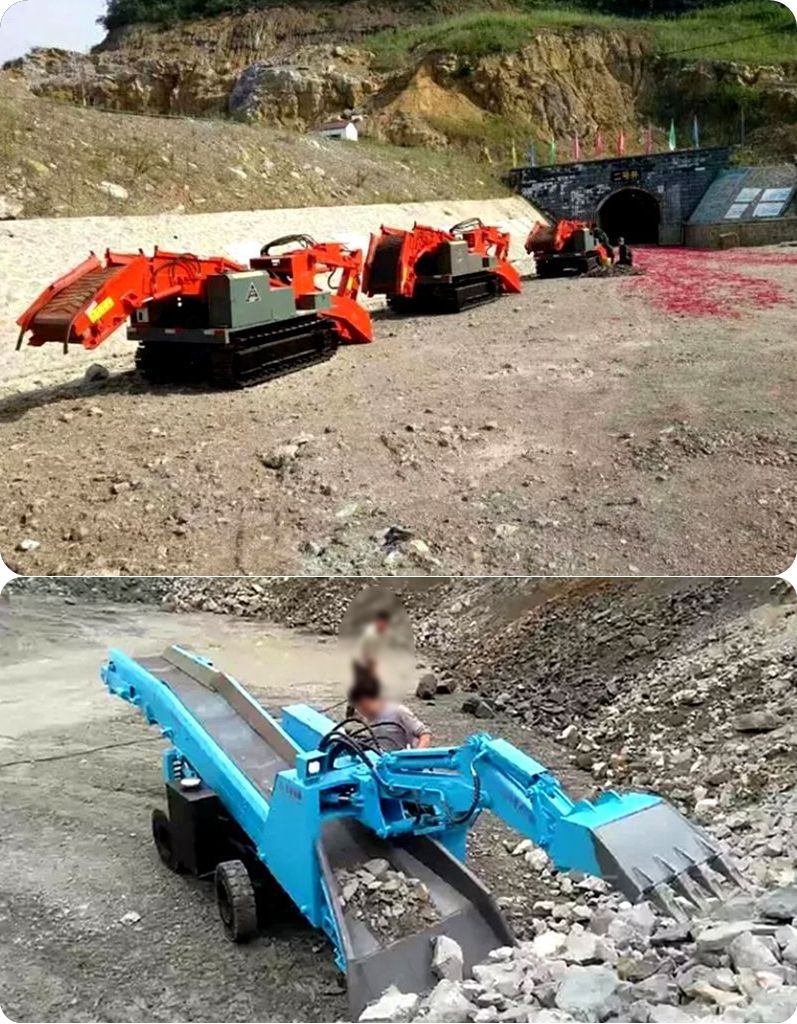

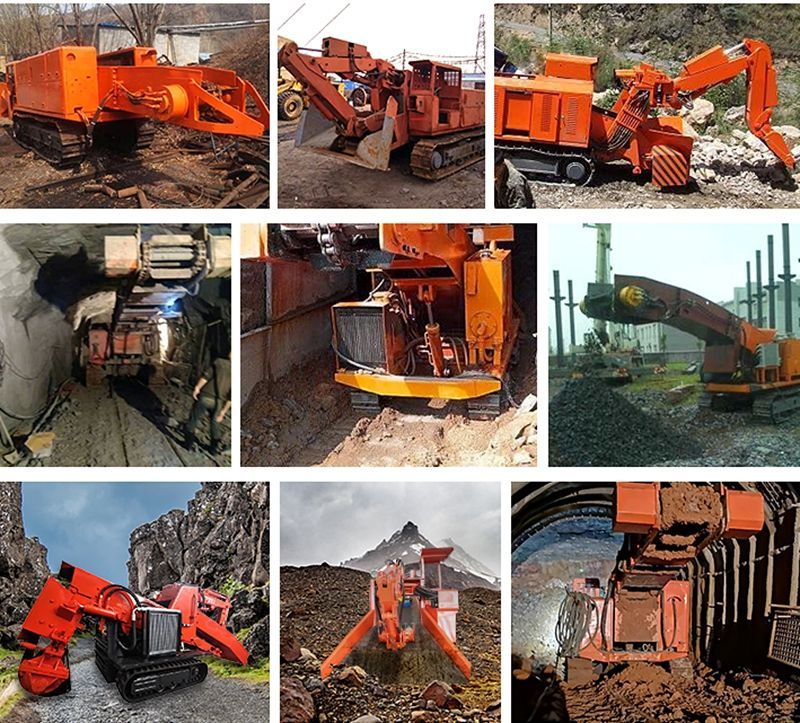

PRODUCT APPLICATIONS
